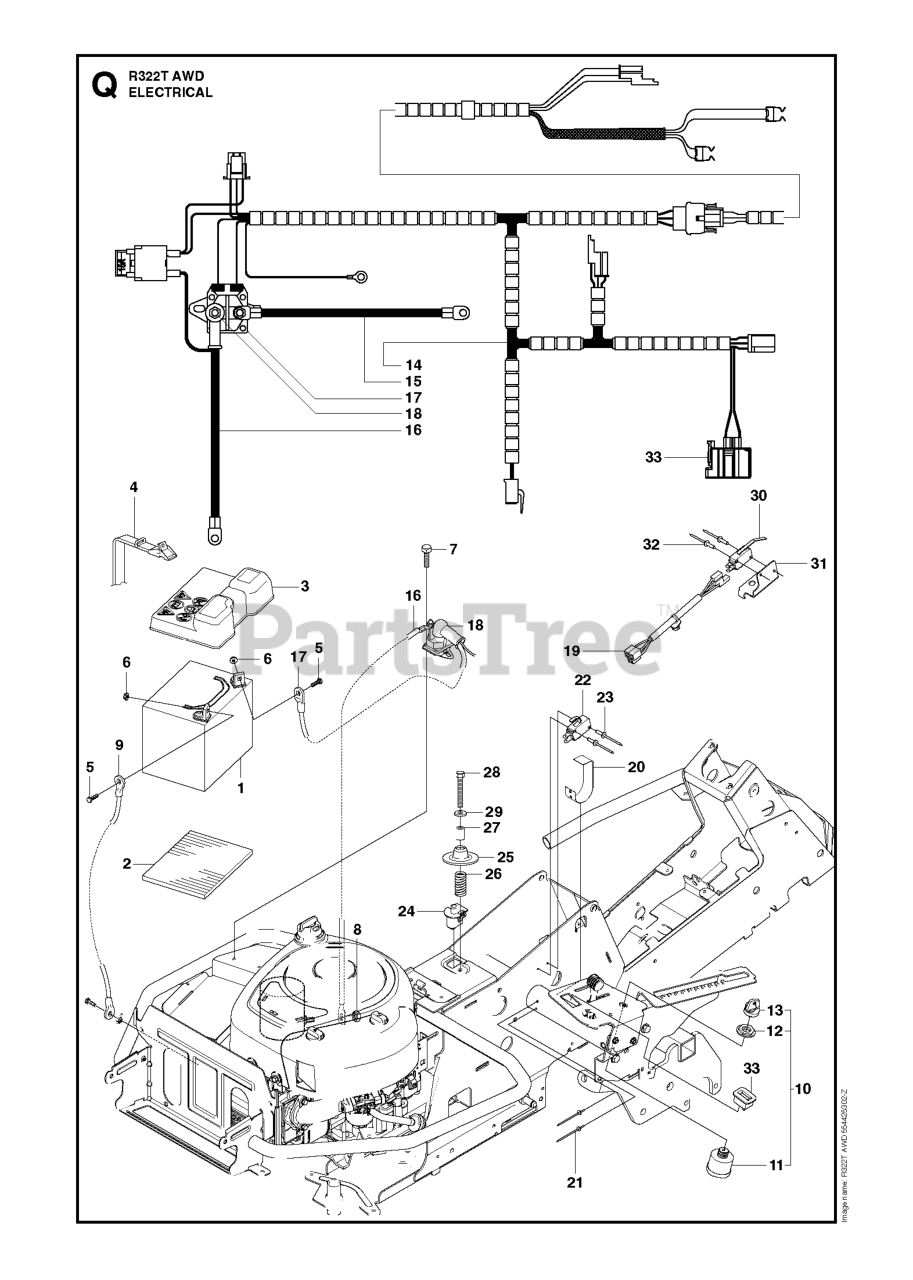

R 322 T AWD (967153002) - Husqvarna Swedish Riding Mower (2018) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title

12

Husqvarna 544442301

NUT

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522622101

SCREW EHHM

$4.49

$

Usually ships in 3-10 days

0

22

Husqvarna 574316001

SWITCH

$16.99

$

In Stock, only 3 left!

0

33

Husqvarna 578382401

HOUR METER
(Superseded to 587764301)

$85.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506909301

SPRING

$

$

Not available

31

Husqvarna 544415701

BRACKET

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506909902

SPACER TUBE

$

$

Not available

8

Husqvarna 506899801

NUT

$

$

Not available

26

Husqvarna 544441201

SPRING

$

$

Not available

10

Husqvarna 579434301

IGNITION SWITCH

$35.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544439801

RELAY

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 722783902

Rivet

$

$

Not available

28

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 2 left!

0

6

Husqvarna 522624301

NUT

$

$

Not available

7

Husqvarna 725236461

SCREW

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 535441101

MAT

$

$

Not available

14

Husqvarna 578338401

WIRING

$71.99

$

Usually ships in 3-10 days

0

29

Husqvarna 734116401

WASHER BRB 8.4X17

$7.49

$

In Stock, only 3 left!

0

13

Husqvarna 544442401

IGNITION KEY

$8.49

$

Usually ships in 3-10 days

0

24

Husqvarna 506909601

SWITCH

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 578328901

WIRING

$

$

Not available

32

Husqvarna 544440701

RIVET

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 506836802

BELT

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 578200601

COVER

$

$

Not available

18

Husqvarna 506899801

NUT

$

$

Not available

9

Husqvarna 576183801

CABLE

$

$

Not available

25

Husqvarna 506909701

WASHER

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 574316101

MICRO SWITCH

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576183901

CABLE

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 576184001

CABLE
(Superseded to 586223901)

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 578261701

IGNITION SWITCH

$28.99

$

In Stock, only 2 left!

0

23

Husqvarna 544440701

RIVET

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 577041601

BATTERY

$170.99

$

Usually ships in 3-10 days

0
