R 322 TX AWD - Husqvarna Swedish Riding Mower ENGINE Parts Diagram

Swedish Riding Mower

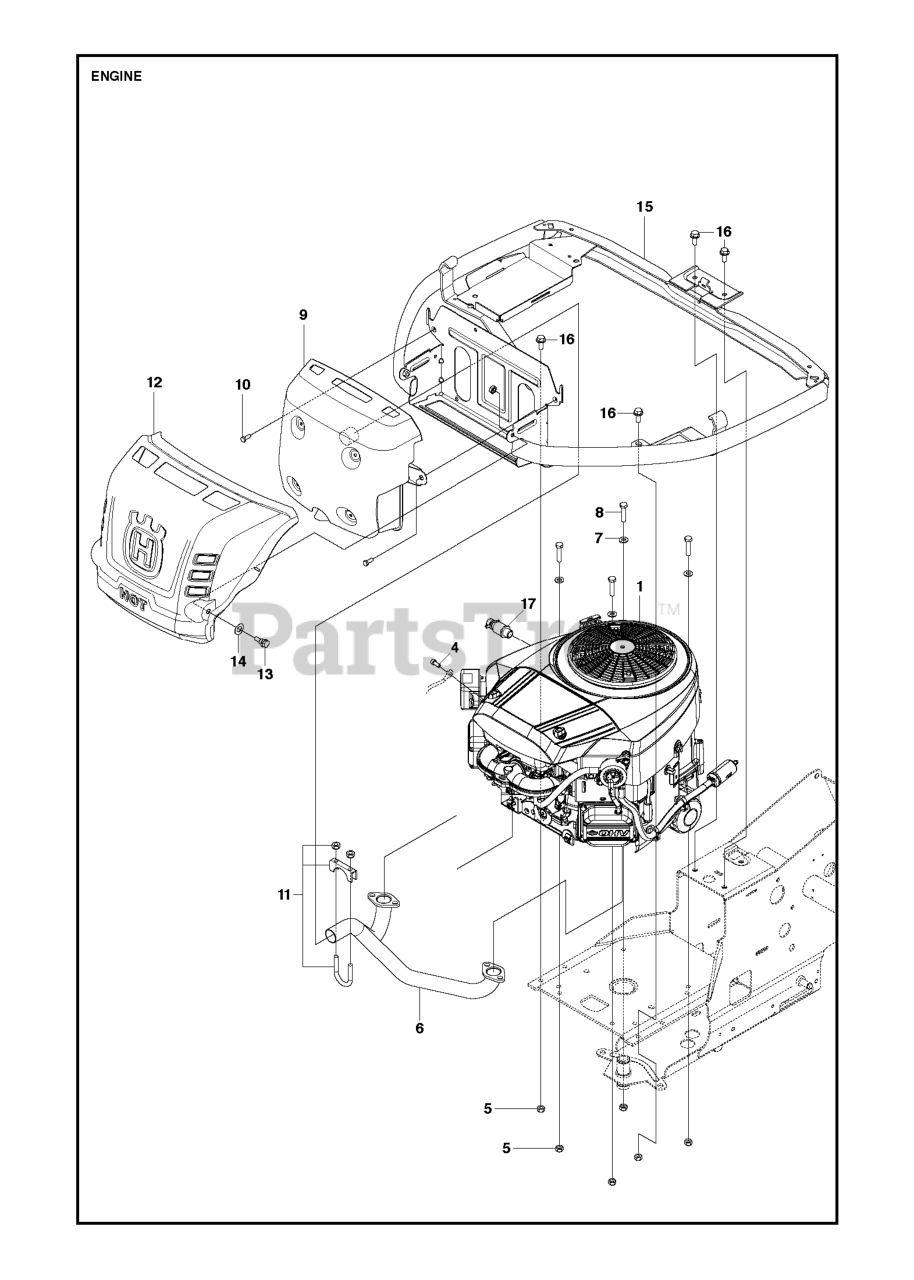

ENGINE Parts Diagram

  • Title

4

Husqvarna 578878901

SCREW

$

$

Not available

5

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

14

Husqvarna 506839401

SPRINGWASHER

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 582722801

Mainfolds

$97.99

$

Usually ships in 3-10 days

0

12

Husqvarna 577818502

HEAT SHIELD

$148.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 10

0

9

Husqvarna 577813602

MUFFLER

$432.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

13

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

15

Husqvarna 577849104

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 591075402

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 725245751

SCREW

$7.99

$

In Stock, only 1 left!

0

7

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

11

Husqvarna 501152201

CLAMP ASSY EXHAUST

$5.99

$

In Stock, only 4 left!

0
