R 322 TX AWD - Husqvarna Swedish Riding Mower PEDALS Parts Diagram

Swedish Riding Mower

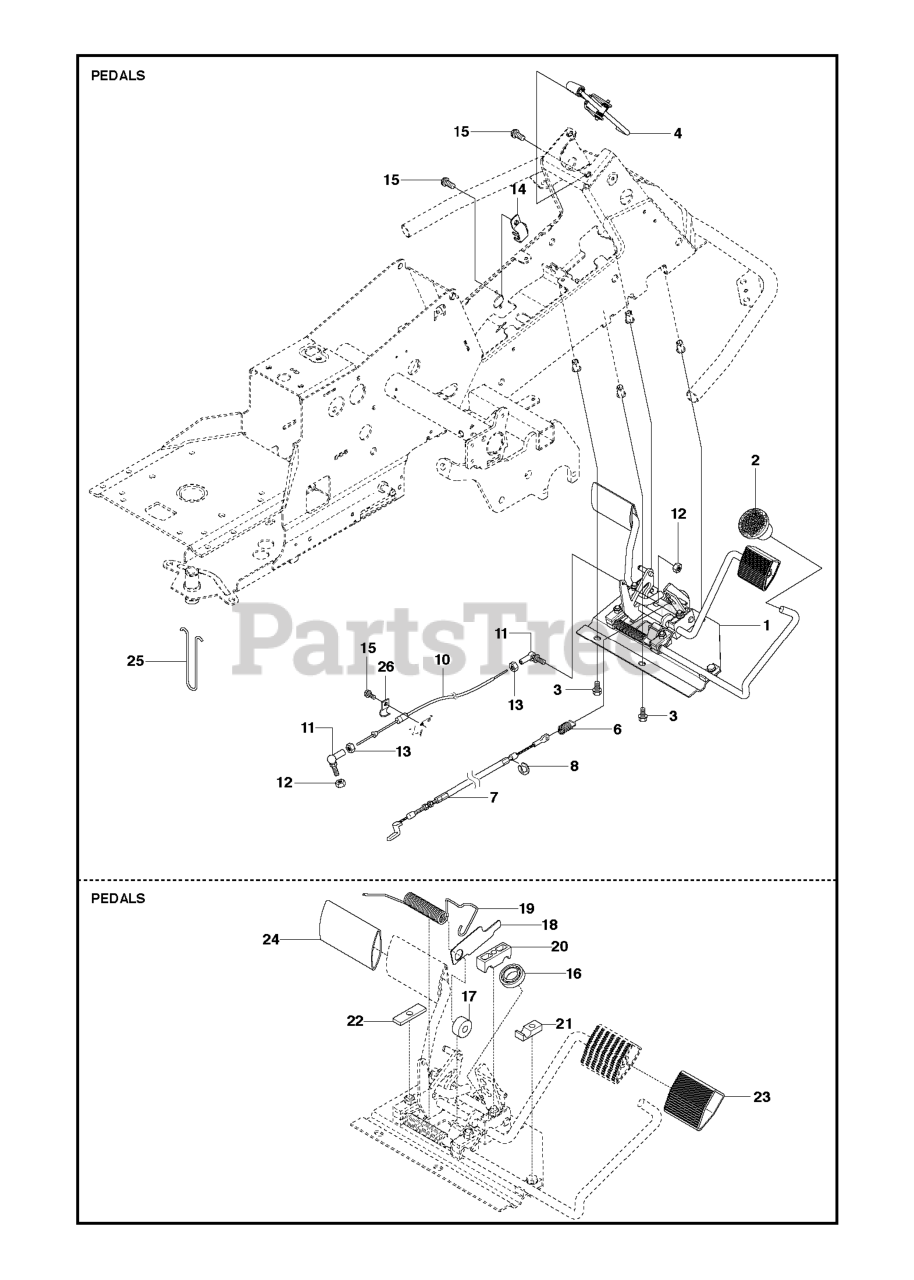

PEDALS Parts Diagram

  • Title

11

Husqvarna 578776801

CONNECTOR, BALL JOINT

$12.99

$

In Stock, only 2 left!

0

12

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576712101

BRAKE WIRE

$50.99

$

In Stock, only 1 left!

0

3

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

19

Husqvarna 535480701

SPRING
(Superseded to 535459501)

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 586966402

PEDAL RUBBER L = 102MM

$25.99

$

In Stock, Qty 5

0

18

Husqvarna 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

20

Husqvarna 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544403101

BRAKE LEVER ASSY

$

$

Not available

21

Husqvarna 535480901

SUPPORT
(Superseded to 506954101)

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 738210204

BALL BEARING 6002-2RS1

$14.99

$

Usually ships in 3-10 days

0

22

Husqvarna 535481001

PLATE
(Superseded to 506804101)

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 586966401

PEDAL RUBBER

$29.99

$

In Stock, only 4 left!

0

17

Husqvarna 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

26

Husqvarna 506566501

CLAMP

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506576402

CABLE HOLDER

$

$

Not available

1

Husqvarna 586969301

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 506946301

SPRING

$13.99

$

In Stock, only 1 left!

0

14

Husqvarna 522430801

BRACKET

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586727401

KNOB, THREADED

$15.99

$

In Stock, only 1 left!

0

10

Husqvarna 574411202

CONTROL CABLE

$102.99

$

Usually ships in 3-10 days

0

8

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

13

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0
