R 418 Ts AWD (967292001) - Husqvarna Swedish Riding Mower (2015-04) CHASSIS REAR Parts Diagram

Swedish Riding Mower

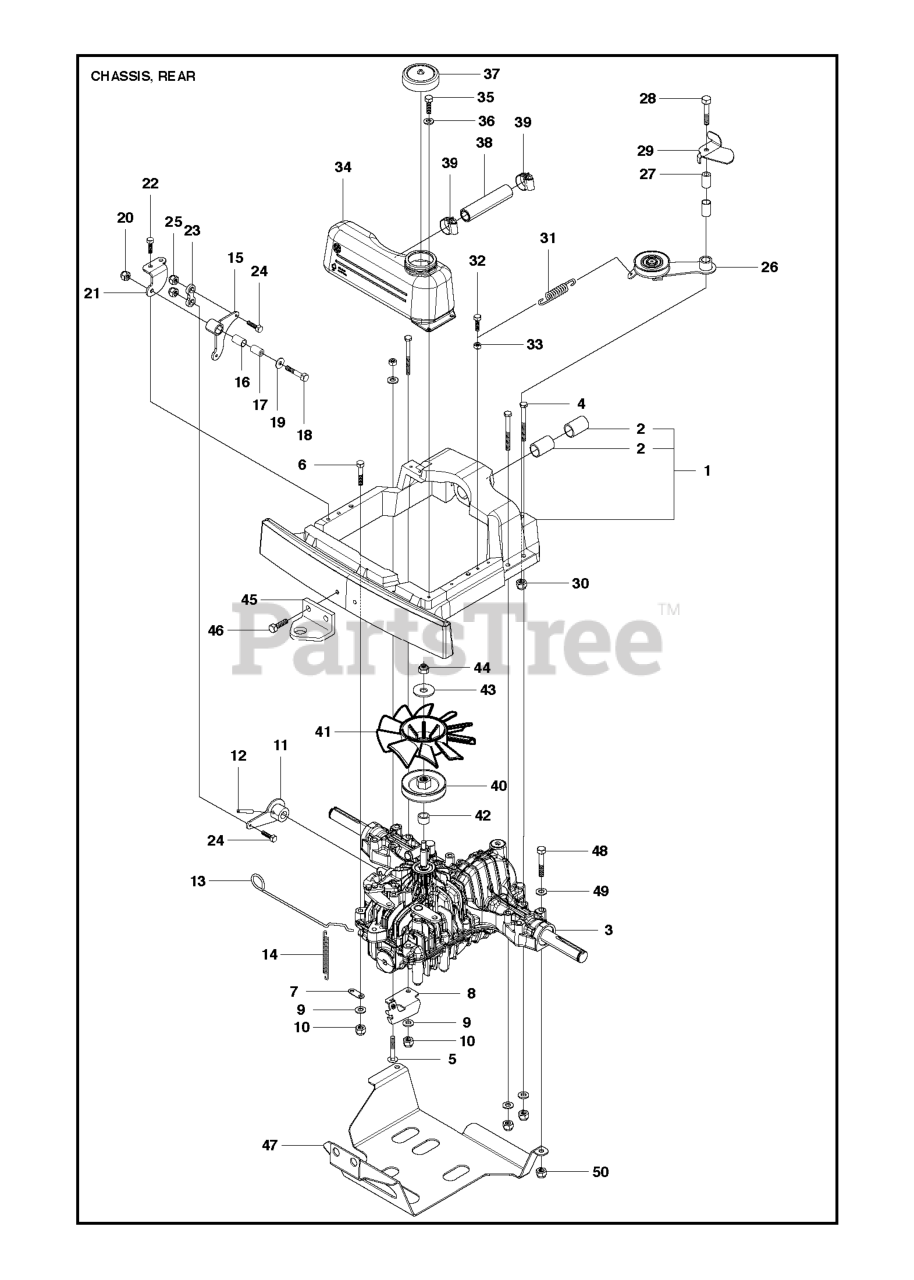

CHASSIS REAR Parts Diagram

  • Title

22

Husqvarna 725244971

REPL BY 725 24 49-51
(Superseded to 725244951)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

36

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

In Stock, Qty 9

0

12

Husqvarna 721434701

PIN

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 505443601

NEEDS DESCRIPTION

$

$

Currently unavailable

38

Husqvarna 535458302

NEEDS DESCRIPTION

$

$

Currently unavailable

43

Husqvarna 734117441

WASHER

$6.99

$

In Stock, only 2 left!

0

3

Husqvarna 586700601

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 502433801

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 506991401

PULLEY

$85.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506993001

TENSIONER

$148.99

$

Usually ships in 3-10 days

0

5

Husqvarna 535423808

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

17

Husqvarna 506992001

BUSHING

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 504628201

NEEDS DESCRIPTION

$

$

Currently unavailable

49

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

47

Husqvarna 504555101

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 506599301

CONNECTOR

$

$

Not available

6

Husqvarna 725246651

Screw

$

$

Not available

33

Husqvarna 731231601

NUT

$6.49

$

In Stock, only 2 left!

0

30

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

25

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

18

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

24

Husqvarna 725233151

SCREW M6S 5X20

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 522521702

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 506673301

FUEL CAP

$45.99

$

In Stock, only 1 left!

0

15

Husqvarna 579596501

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 544388501

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

46

Husqvarna 725249371

Screw M10x25

$1.49

$

Usually ships in 3-10 days

0

31

Husqvarna 506542501

SPRING

$

$

Not available

41

Husqvarna 506948101

FAN

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 544888401

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 506834301

SPRING

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544388101

NEEDS DESCRIPTION

$

$

Currently unavailable

45

Husqvarna 506889901

DRAW RING

$31.99

$

Usually ships in 3-10 days

0

19

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

34

Husqvarna 544388601

EXPANSION TANK K664

$125.99

$

Usually ships in 3-10 days

0

32

Husqvarna 725237271

SCREW

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 725246451

SCREW

$1.49

$

Usually ships in 3-10 days

0

1

Husqvarna 535406101

BRACKET

$

$

Not available

2

Husqvarna 506986102

BUSHING

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544387301

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 506986103

BEARING

$

$

Not available

44

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

27

Husqvarna 506992001

BUSHING

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505490101

NEEDS DESCRIPTION

$

$

Currently unavailable

28

Husqvarna 725246251

SCREW

$7.99

$

Usually ships in 3-10 days

0
