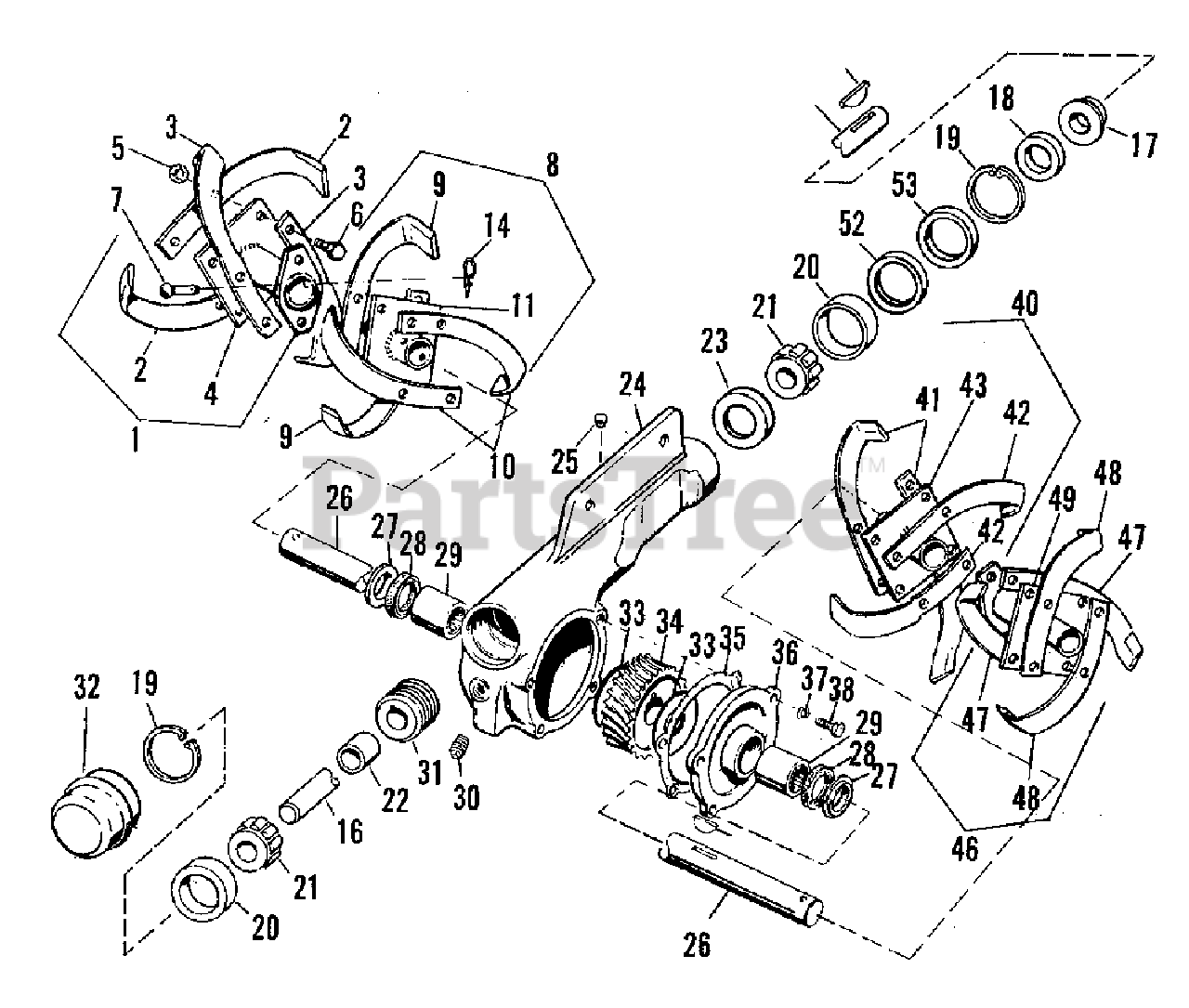

R-5 (990762) - Homelite Tiller, 5hp > Parts Diagrams (4) > Tine Assembly Group (3836I02)

  • Title
LM-01183-26

1

BLADE ASSEMBLY, Tine, Outer (R.H.)

Part# LM-01183-26

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-95

2

BLADE, Tine (R.H.)

Part# LM-01182-95

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-94

3

BLADE, Tine (L.H.)

Part# LM-01182-94

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-46

4

PLATE, Outer

Part# LM-01180-46

OEM Warranty Repair Part for Simplicity

Not available

LM-09148-80

5

NUT, Hex, Lock, 7/16-20

Part# LM-09148-80

OEM Warranty Repair Part for Simplicity

Not available

LM-09204-88

6

SCREW, Hex Cap, 7/16-20 x 1-1/4

Part# LM-09204-88

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-53

7

PIN

Part# LM-01180-53

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-24

8

BLADE ASSEMBLY, Tine, Inner (R.H.)

Part# LM-01183-24

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-95

9

BLADE, Tine (R.H.)

Part# LM-01182-95

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-94

10

BLADE, Tine (L.H.)

Part# LM-01182-94

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-84

11

PLATE, Inner

Part# LM-01180-84

OEM Warranty Repair Part for Simplicity

Not available

LM-09148-80

12

NUT, Hex, Lock, 7/16-20

Part# LM-09148-80

OEM Warranty Repair Part for Simplicity

Not available

LM-09204-88

13

SCREW, Hex Cap, 7/16-20 x 1-1/4

Part# LM-09204-88

OEM Warranty Repair Part for Simplicity

Not available

LM-09184-51

14

PIN, Cotter, 1/8 x 3/4

Part# LM-09184-51

OEM Warranty Repair Part for Simplicity

Not available

LM-09111-71

15

KEY, 3/16 x 7/8

Part# LM-09111-71

OEM Warranty Repair Part for Simplicity

Not available

LM-01708-88

16

SHAFT, Worm

Part# LM-01708-88

OEM Warranty Repair Part for Simplicity

Not available

LM-01184-00

17

SHIELD

Part# LM-01184-00

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-93

18

SEAL, Oil

Part# LM-01183-93

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-96

19

RING, Snap

Part# LM-01183-96

OEM Warranty Repair Part for Simplicity

Not available

LM-01543-93

20

CUP, Bearing

Part# LM-01543-93

OEM Warranty Repair Part for Simplicity

Not available

LM-01544-86

21

BEARING, Roller

Part# LM-01544-86

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-98

22

SPACER

Part# LM-01183-98

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-99

23

CUP

Part# LM-01183-99

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-92

24

HOUSING, Worm Drive

Part# LM-01183-92

OEM Warranty Repair Part for Simplicity

Not available

LM-01184-62

25

PLUG, Vent

Part# LM-01184-62

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-21

26

SHAFT, Worm Gear

Part# LM-01180-21

OEM Warranty Repair Part for Simplicity

Not available

LM-01184-03

27

SHIELD

Part# LM-01184-03

OEM Warranty Repair Part for Simplicity

Not available

LM-01181-18

28

SEAL, Oil

Part# LM-01181-18

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-20

29

BEARING, Needle

Part# LM-01180-20

OEM Warranty Repair Part for Simplicity

Not available

LM-09016-53

30

PLUG, Pipe, 3/8"

Part# LM-09016-53

OEM Warranty Repair Part for Simplicity

Not available

LM-01184-92

31

WORM, Right Hand

Part# LM-01184-92

OEM Warranty Repair Part for Simplicity

Not available

LM-01544-87

32

CUP

Part# LM-01544-87

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-15

33

WASHER, Thrust

Part# LM-01183-15

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-22

34

GEAR, Worm (R.H.)

Part# LM-01180-22

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-24

35

GASKET

Part# LM-01180-24

OEM Warranty Repair Part for Simplicity

Not available

LM-01184-02

36

COVER

Part# LM-01184-02

OEM Warranty Repair Part for Simplicity

Not available

LM-09169-64

37

WASHER, Lock, 1/4

Part# LM-09169-64

OEM Warranty Repair Part for Simplicity

Not available

LM-09219-59

38

SCREW, Hex, Cap, 1/4-20 x 5/8

Part# LM-09219-59

OEM Warranty Repair Part for Simplicity

Not available

LM-09177-55

39

KEY, Woodruff #91

Part# LM-09177-55

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-23

40

BLADE ASSEMBLY, Tine, Inner (L.H.)

Part# LM-01183-23

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-95

41

BLADE, Tine, (R.H.)

Part# LM-01182-95

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-94

42

BLADE, Tine (L.H.)

Part# LM-01182-94

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-84

43

PLATE, Inner

Part# LM-01180-84

OEM Warranty Repair Part for Simplicity

Not available

LM-09148-80

44

NUT, Hex, Lock, 7/16-20

Part# LM-09148-80

OEM Warranty Repair Part for Simplicity

Not available

LM-09204-88

45

SCREW, Hex Cap, 7/16-20 x 1-1/4

Part# LM-09204-88

OEM Warranty Repair Part for Simplicity

Not available

LM-01183-25

46

BLADE ASSEMBLY, Tine Outer (L.H.)

Part# LM-01183-25

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-95

47

BLADE, Tine (R.H.)

Part# LM-01182-95

OEM Warranty Repair Part for Simplicity

Not available

LM-01182-94

48

BLADE, Tine, (L.H.)

Part# LM-01182-94

OEM Warranty Repair Part for Simplicity

Not available

LM-01180-46

49

PLATE, Outer (Not Shown)

Part# LM-01180-46

OEM Warranty Repair Part for Simplicity

Not available

LM-09148-80

50

NUT, Hex, Lock, 7/16-20 (Not Shown)

Part# LM-09148-80

OEM Warranty Repair Part for Simplicity

Not available

LM-09204-88

51

SCREW, Hex Cap, 7/16-20 x 1-1/4

Part# LM-09204-88

OEM Warranty Repair Part for Simplicity

Not available

LM-01708-85

52

RING, Backing

Part# LM-01708-85

OEM Warranty Repair Part for Simplicity

Not available

LM-01717-62

53

RING, Backing

Part# LM-01717-62

OEM Warranty Repair Part for Simplicity

Not available
