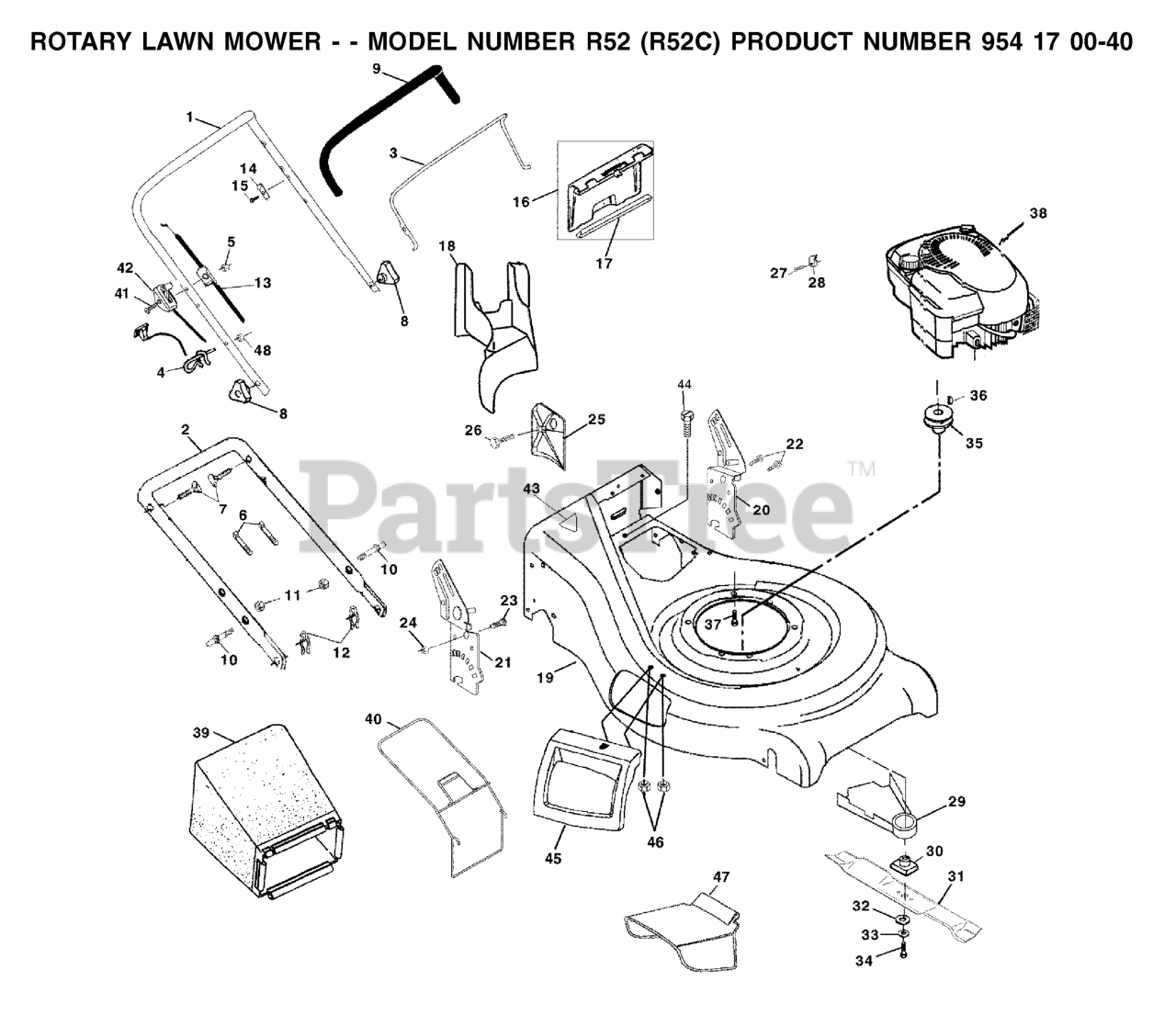

R 52 (954170040) - Husqvarna Walk-Behind Mower (2002-06) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

39

Husqvarna 532183626

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 532182154

CONTRL.THROTTLE.

$

$

Not available

19

Husqvarna 532176937

NEEDS DESCRIPTION

$

$

Currently unavailable

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 6

0

47

Husqvarna 532169699

DEFLECTOR.21.MCUT.RWGD.GRAY

$

$

Not available

28

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

36

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

46

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 3 left!

0

24

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

- -

Husqvarna 532176924

NEEDS DESCRIPTION

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532182002

SHIELD.DEBRIS.21.RWGD.EZ

$12.99

$

In Stock, only 1 left!

0

20

Husqvarna 532164548

.RACKET
(Superseded to 532161568)

$8.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532167163

HANDLE, UPPER DLX COMF. (GRIP)

$46.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532161551

BOLT
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 8

0

21

Husqvarna 532169306

RIGHT HANDLE BRKT. ASSM.
(Superseded to 532181020)

$21.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532087692

KNOB

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532162085

KIT.DOOR.REAR.21.WRAPPED.BLACK

$

$

Not available

11

Husqvarna 873990500

NUT
(Superseded to 873800500)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532180026

FRAME.GRASS.CATCHER.21.RGD

$

$

Not available

- -

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532182778

MULCHER PLUG
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 10

0

3

Husqvarna 532131036

CONTROL BAR
(Superseded to 532851659)

$15.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 2 left!

0

- -

Husqvarna 532176926

NEEDS DESCRIPTION

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532183058

DOOR.ASM.MULCH.21.RWD

$34.99

$

In Stock, only 2 left!

0

41

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

17

Husqvarna 532179885

SEAL, DOOR
(Superseded to 532189059)

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532133107

ENGINE ZONE CONTROL

$18.99

$

In Stock, only 1 left!

0

31

Husqvarna 532175052

NEEDS DESCRIPTION

$

$

Not available

30

Husqvarna 532851514

BLADE ADAPTOR

$17.99

$

In Stock, Qty 20+

0

2

Husqvarna 532164556

HANDLE
(Superseded to 532197202)

$

$

Not available

44

Husqvarna 532054583

SCREW

$

$

Not available
