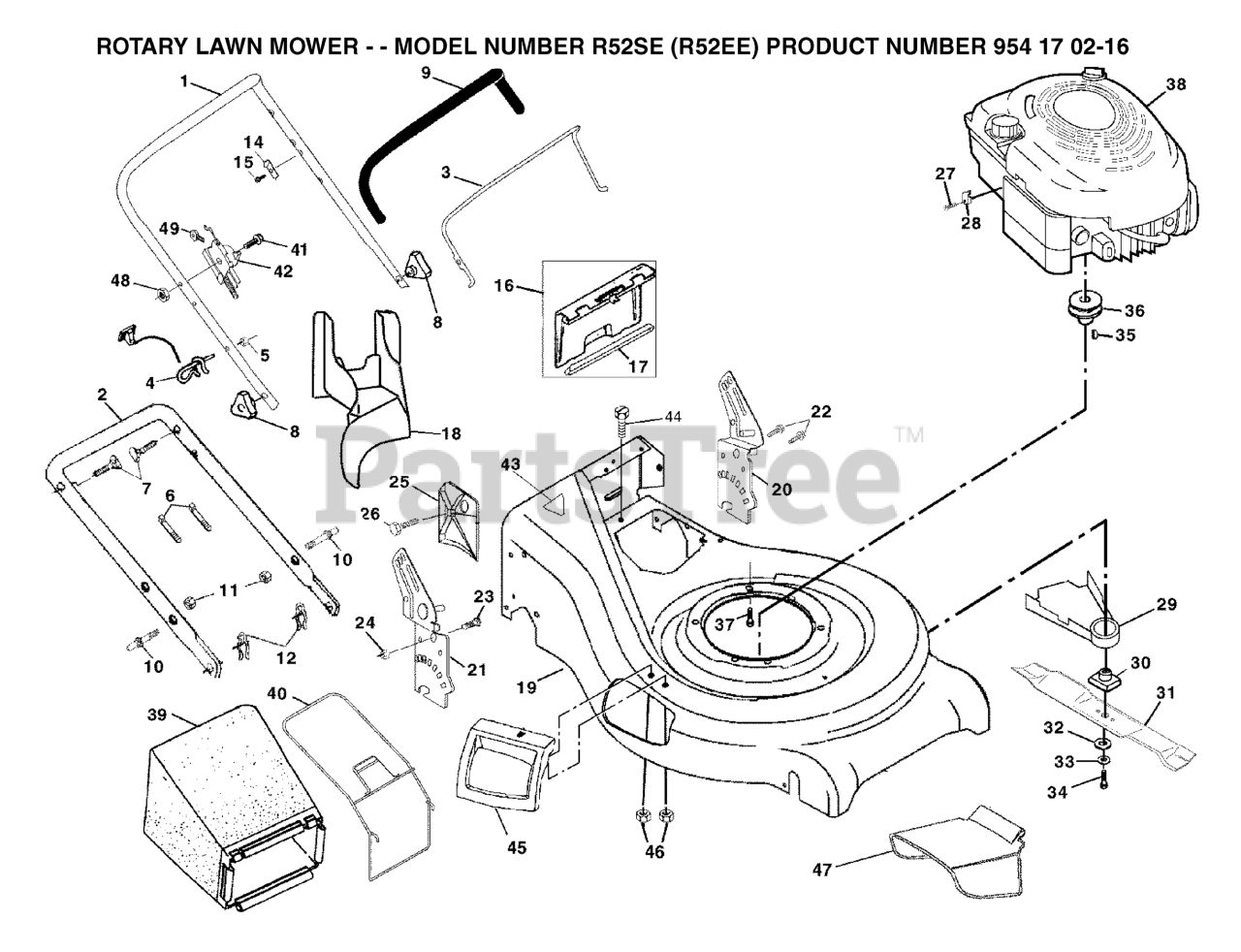

R 52 SE (R52EE) - Husqvarna Walk-Behind Mower (2004-01) CHASSIS / FRAME Parts Diagram

Walk-Behind Mower

CHASSIS / FRAME Parts Diagram

  • Title

41

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 8

0

15

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

31

Husqvarna 532175052

NEEDS DESCRIPTION

$

$

Not available

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532180694

CONTROL.ELECTRIC.KEY.START

$94.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532164548

.RACKET
(Superseded to 532161568)

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 3 left!

0

29

Husqvarna 532182002

SHIELD.DEBRIS.21.RWGD.EZ

$12.99

$

In Stock, only 1 left!

0

16

Husqvarna 532162085

KIT.DOOR.REAR.21.WRAPPED.BLACK

$

$

Not available

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532184941

PULLEY.ENG.25MMM

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187535

PLUG, MULCHER
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532180026

FRAME.GRASS.CATCHER.21.RGD

$

$

Not available

49

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

- -

Husqvarna 532191262

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 6

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532161551

BOLT
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532184590

BLADE ADAPTER
(Superseded to 532418373)

$10.99

$

In Stock, Qty 20+

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532176937

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 10

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 6

0

1

Husqvarna 532169369

HANDLE.UP.DLX.COMF.W/GRIP.GREY

$54.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 873990500

NUT
(Superseded to 873800500)

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532189059

SEAL.DOOR.21" (2 2MC)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532164556

HANDLE
(Superseded to 532197202)

$

$

Not available

44

Husqvarna 532054583

SCREW

$

$

Not available

21

Husqvarna 532169306

RIGHT HANDLE BRKT. ASSM.
(Superseded to 532181020)

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

- -

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532087692

KNOB

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532187723

HI-PRO KEY

$

$

Not available

- -

Husqvarna 532191261

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

3

Husqvarna 532176573

CONTROL BAR
(Superseded to 532411083)

$15.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$34.99

$

In Stock, only 2 left!

0

39

Husqvarna 532188763

NEEDS DESCRIPTION

$

$

Currently unavailable
