R-53 (135-511-190) - White Outdoor 26" Rear-Engine Riding Mower (1985) 26" Side Discharge Mowing Deck Assembly Parts Diagram

26" Rear-Engine Riding Mower

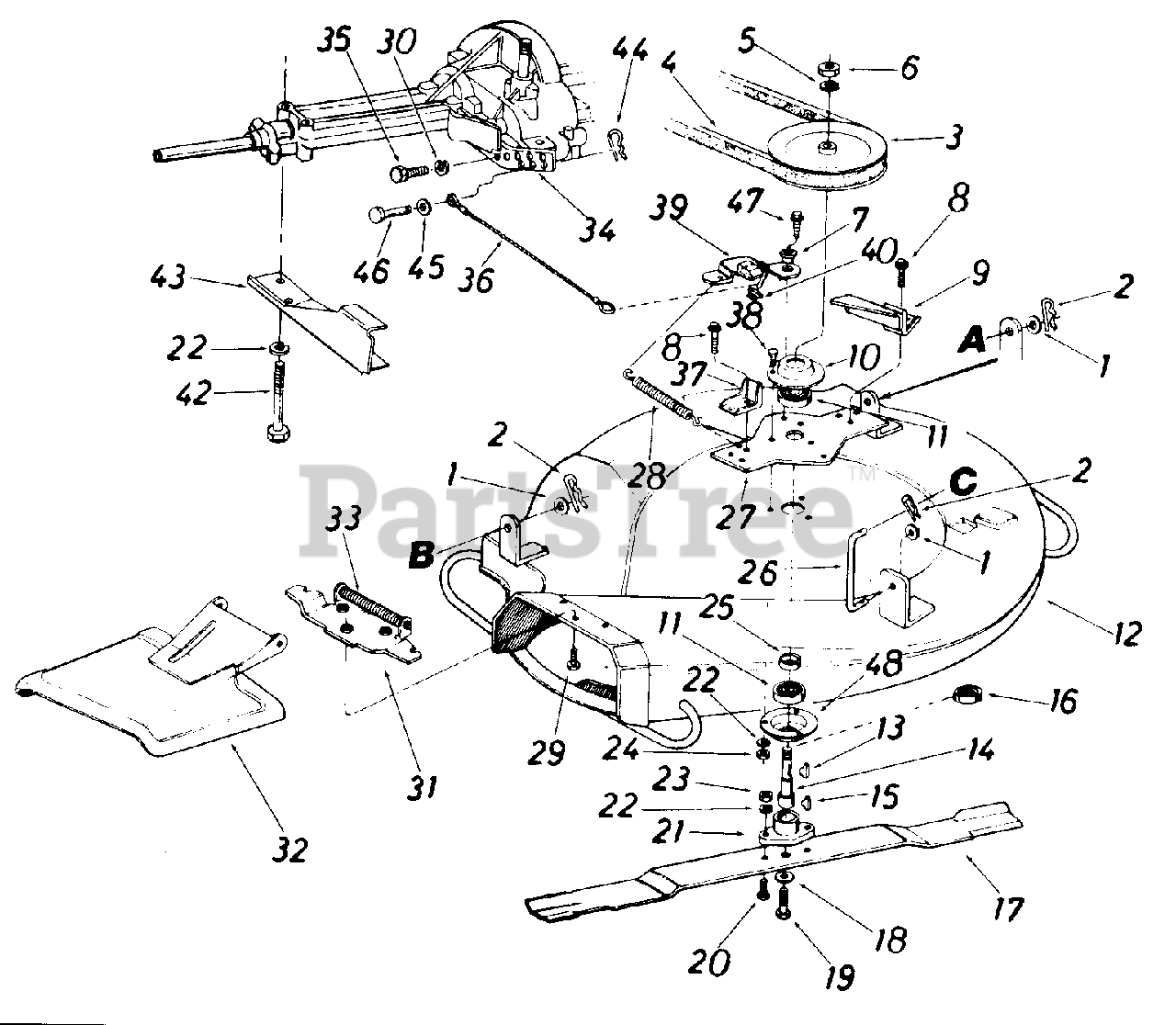

26" Side Discharge Mowing Deck Assembly Parts Diagram

  • Title

1

White Outdoor 736-0300

Fl-Wash..385" I.D. c .87" O.D. x .06

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00"*

$3.99

$

In Stock, only 1 left!

0

3

White Outdoor 756-0395

Deck Pulley 6.0" O.D.

$

$

Not available

4

White Outdoor 754-0264

"V"-Belt 1/2 " x 52" Lg.
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0158

Fl-Wash. 5/8" I.D.*

$4.49

$

In Stock, only 2 left!

0

6

White Outdoor 712-0242

Hex Jam Nut 5/8-11 Thd.*
(Superseded to 912-0261)

$

$

Not available

7

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

8

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x.62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

9

15653

Belt Guard Ass'y.

$

$

Not available

10

White Outdoor 08253

Bearing Housing 1.85" I.D.
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

11

White Outdoor 741-0919

Ball Brg. .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

12

15628

26" Deck Ass'y.

$

$

Not available

13

White Outdoor 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 6

0

14

White Outdoor 711-0405

Blade Spindle

$

$

Not available

15

White Outdoor 714-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.

$4.99

$

Usually ships in 3-6 days

0

16

White Outdoor 13703

Bearing Shield

$

$

Not available

17

White Outdoor 742-0147

26" Blade
(Superseded to 942-0147)

$

$

Not available

18

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$3.99

$

In Stock, Qty 13

0

19

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

20

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 11

0

21

White Outdoor 10769

Blade Adapter Kit

$

$

Not available

22

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-0123

Hex N ut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

24

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

25

White Outdoor 750-0142

Spacer.836" I.D. x 1.01" O.D. x .320
(Superseded to 950-0142)

$

$

Not available

26

747-0428

Deck Link 3.9" Lg.

$

$

Not available

27

15658

Belt Guard Plate Ass'y.

$

$

Not available

28

White Outdoor 732-0157

Spring .38" O.D. x 3.25" Lg.

$13.99

$

Usually ships in 3-6 days

0

29

White Outdoor 710-0599

Hex Self-Tap Scr. 1/4 " x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

31

White Outdoor 11396

Adapter Ass'y. Chute

$

$

Not available

32

White Outdoor 11634

Chute Deflector Ass'y. Comp.

$

$

Not available

33

White Outdoor 732-0261

Torsion Spring

$

$

Not available

34

White Outdoor 15626

Lower Inside Belt Guard
(Superseded to 15626B-0637)

$

$

Not available

35

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 727-0290

Brake Cable Ass'y.
(Superseded to 727-0290A)

$11.99

$

Usually ships in 3-6 days

0

37

White Outdoor 10426

Belt Keeper Ass'y.

$

$

Not available

38

White Outdoor 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.
(Superseded to 910-0322)

$

$

Not available

39

White Outdoor 16053

Blade Brake Brkt. Ass'y.
(Superseded to 96053)

$

$

Not available

40

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

43

White Outdoor 15625

Lower Outside Engine Belt Guard

$

$

Not available

44

White Outdoor 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 736-0142

Fl-Wash. 1/4" I.D. x .50" O.D.

$4.49

$

In Stock, only 1 left!

0

46

White Outdoor 711-0701

Clevis Pin 1/4" x 1/2"
(Superseded to 911-0701)

$6.49

$

In Stock, only 1 left!

0

47

White Outdoor 710-0623

Self-Tap Scr. 3/8 x .75" Lg.

$3.99

$

In Stock, Qty 8

0

48

White Outdoor 15296

Open Brg. Housing 1.85" I.D.
(Superseded to 15296A)

$7.99

$

In Stock, only 1 left!

0
