R 53 SV (961410193-09) - Husqvarna Walk-Behind Mower (2013-02) DRIVE Parts Diagram

Walk-Behind Mower

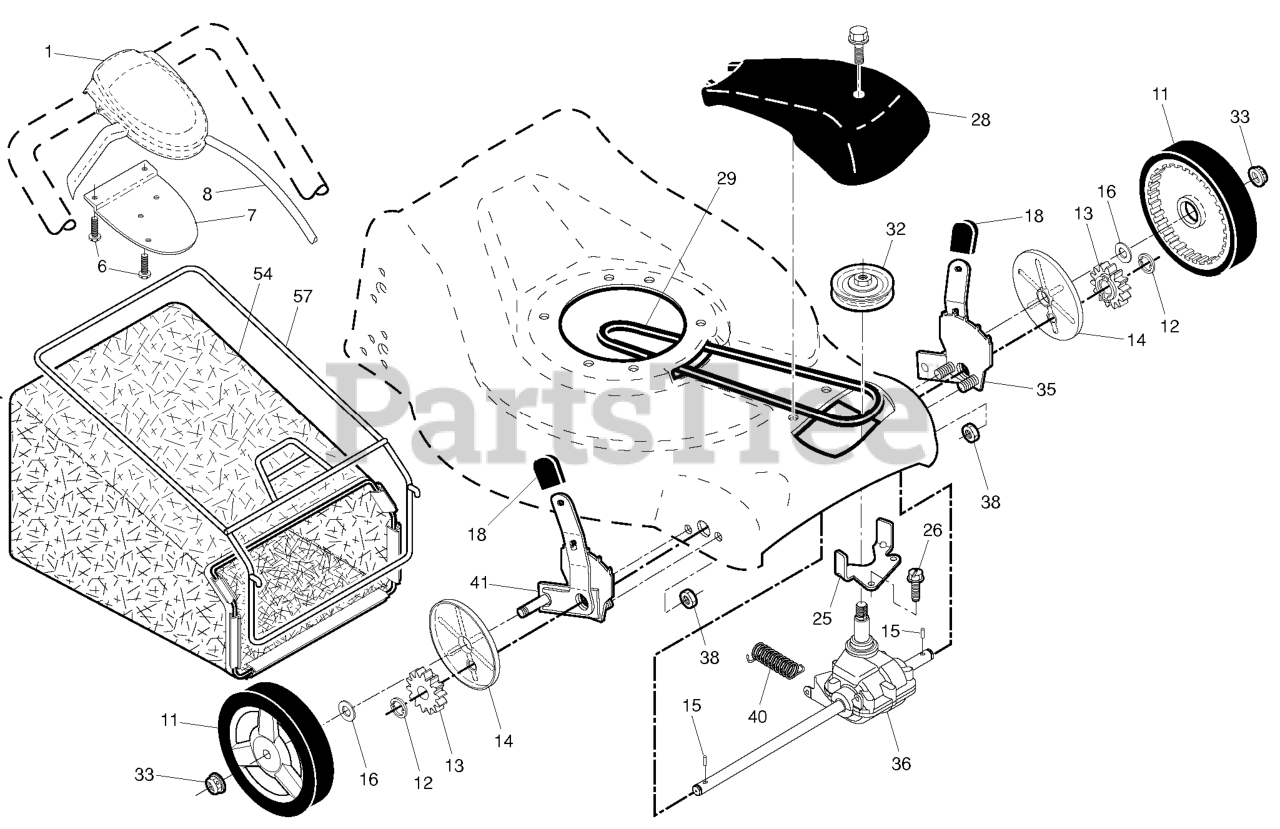

DRIVE Parts Diagram

  • Title

14

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, Qty 20+

0

32

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 2 left!

0

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, only 1 left!

0

8

Husqvarna 532406259

CABLE ASSEMBLY, DRIVE

$51.99

$

In Stock, Qty 6

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 7

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

36

Husqvarna 532404833

TRANSMISSION.21.FGD.HT.VST

$

$

Not available

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 9

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.49

$

In Stock, only 3 left!

0

29

Husqvarna 532194149

BELT.DRIVE.FG

$22.99

$

In Stock, only 2 left!

0

35

Husqvarna 532438485

KIT ADJUSTER ASM.438151.

Note: LH

$

$

Not available

40

Husqvarna 532406558

SPRING

$9.49

$

In Stock, only 3 left!

0

28

Husqvarna 532432664

COVER.DRIVE.ASM.185579.CE.WALK

$26.99

$

In Stock, only 1 left!

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 18

0

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

41

Husqvarna 532438486

KIT ADJUSTER ASM.438148

Note: RH

$

$

Not available

1

Husqvarna 532425661

CONTROL.DR.QW.21FGD.BS.GY/BLK

$79.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

54

Husqvarna 580953406

GBAG.34710090.H-GREY MS498

$62.99

$

In Stock, only 2 left!

0

57

Husqvarna 532411950

FRAME.GBAG.21.FWGD

$

$

Not available

26

Husqvarna 532163409

SCREW

$3.49

$

Usually ships in 3-10 days

0
