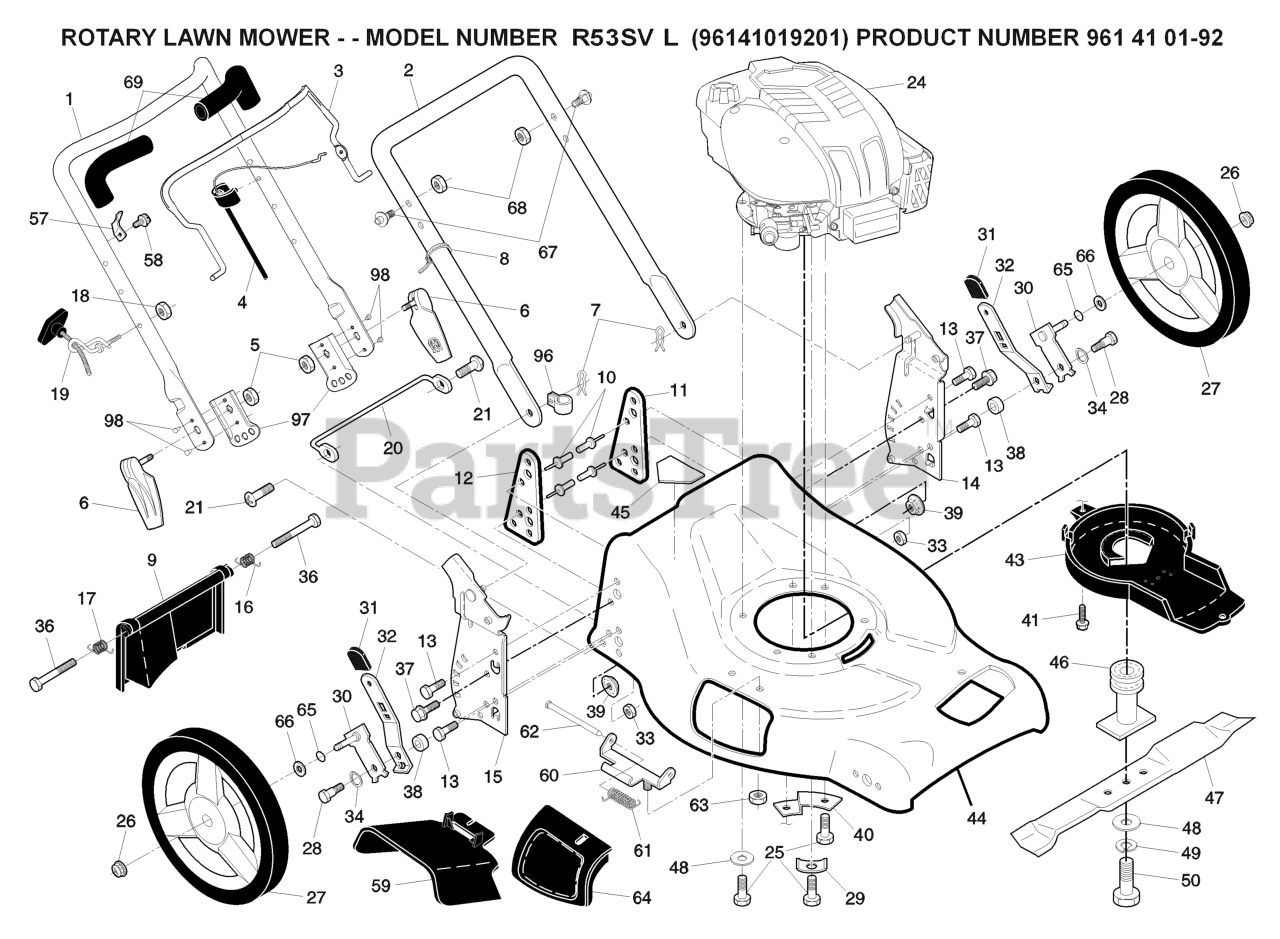

R 53 SVL (961410192-01) - Husqvarna Walk-Behind Mower (2008-07) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

36

Husqvarna 532184193

BOLT

$

$

Not available

6

Husqvarna 532413507

ASM.QUICK.RELEASE
(Superseded to 584380101)

$

$

Not available

33

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532405417

SPRING.REAR.DOOR.EZ.21.LT

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532405844

DEBRIS SHIELD
(Superseded to 532443950)

$54.99

$

Usually ships in 3-10 days

0

13

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

67

Husqvarna 532199255

STUD.QUICK.ADJUST

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532185576

DOOR.MULCH.21.REAR.FWGD

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532406985

REAR DOOR ASSEMBLY
(Superseded to 532401812)

$

$

Not available

-

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

$

$

Not available

69

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

30

Husqvarna 532413141

ARM.ASM.AXLE.REAR.5/9.POS.BZP

$7.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

28

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$3.99

$

In Stock, Qty 9

0

5

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

59

Husqvarna 532185582

DEFLECTOR.CLIPPIN.21.FGD

$

$

Not available

21

Husqvarna 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

66

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, only 3 left!

0

7

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532420577

HANDLE.ASM.UP.W/ADJ.BKT.21FGD
(Superseded to 583848601)

$

$

Not available

31

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 20+

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532410540

SUPPORT BRACKET LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.49

$

In Stock, Qty 7

0

17

Husqvarna 532405418

SPRING.REAR.DOOR.EZ.21.RT

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 532197752

Blade Adapter / Pulley

$

$

Not available

47

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, Qty 20+

0

25

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

98

Husqvarna 532199697

RIVET

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$25.99

$

In Stock, Qty 19

0

29

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

26

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532420510

HANDLE.LOWER.GREY

$

$

Not available

32

Husqvarna 532409889

SELECTOR SPRING
(Superseded to 532401626)

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532408016

KIT.HSG.21.FGD.MC.ORG.CE SYM
(Superseded to 583332501)

$157.99

$

Usually ships in 3-10 days

0

97

Husqvarna 532413534

BRACKET.ADJ.3POS.GREY

$10.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

14

Husqvarna 532417812

RP BRACKET.ASM.HNDL/HW.LT.21.
(Superseded to 532434550)

$

$

Not available

39

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532186298

BAIL CONTROL
(Superseded to 532426812)

$

$

Not available

58

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

15

Husqvarna 532417811

BRACKET.ASM.HNDL/HW.RT.21.PNT
(Superseded to 532434549)

$

$

Not available

34

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 3 left!

0

20

Husqvarna 532413543

NEEDS DESCRIPTION

$

$

Not available

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532410542

BRACKET.SUPRT.RH.21.FWGD

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

41

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532415350

CABLE.ASM.ZONE.CONTROL

$17.99

$

In Stock, Qty 20+

0
