R 53 SVL (961410192-02) - Husqvarna Walk-Behind Mower (2009-04) DRIVE 2 Parts Diagram

Walk-Behind Mower

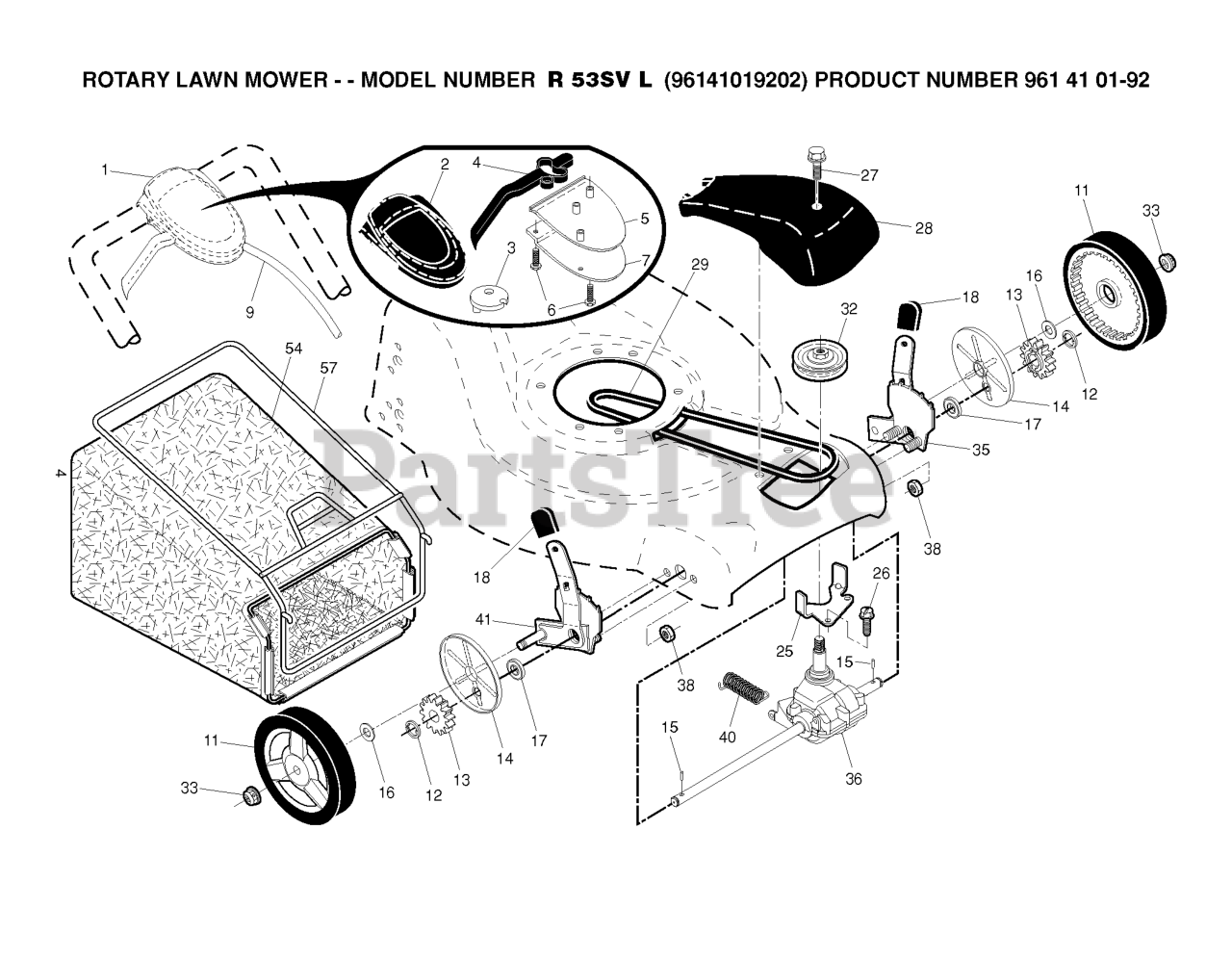

DRIVE 2 Parts Diagram

  • Title

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$26.99

$

In Stock, only 1 left!

0

1

Husqvarna 532425661

CONTROL.DR.QW.21FGD.BS.GY/BLK

$79.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532406262

PULLEY.CAM.DRIVE.CONTROL.EZ

$

$

Not available

54

Husqvarna 532401903

Grassbag Assembly

$

$

Currently unavailable

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, only 1 left!

0

57

Husqvarna 532411950

FRAME.GBAG.21.FWGD

$

$

Not available

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

4

Husqvarna 532190037

LEVER
(Superseded to 532425662)

$17.99

$

In Stock, only 2 left!

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 10

0

36

Husqvarna 532404833

TRANSMISSION.21.FGD.HT.VST

$

$

Not available

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 532163409

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 18

0

9

Husqvarna 532406259

CABLE ASSEMBLY, DRIVE

$51.99

$

In Stock, Qty 6

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.49

$

In Stock, only 3 left!

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 9

0

25

Husqvarna 532411663

BELT KEEPER
(Superseded to 532431711)

$

$

Not available

40

Husqvarna 532406558

SPRING

$9.49

$

In Stock, only 3 left!

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$17.99

$

In Stock, Qty 14

0

2

Husqvarna 532411673

COVER TOP AUTO WALK CONTROL
(Superseded to 532406260)

$

$

Not available

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, Qty 7

0

41

Husqvarna 532424200

KIT, WHEEL ADJUSTER, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$

$

Not available

29

Husqvarna 532194149

BELT.DRIVE.FG

$22.99

$

In Stock, only 2 left!

0

5

Husqvarna 532411664

COVER BOTTOM AUTO WLK CONTROL
(Superseded to 532406261)

$20.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532424201

RP KIT, WHEEL ADJUSTER, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$

$

Not available

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 2 left!

0
