R 53 SVL (961410226-01) - Husqvarna Walk-Behind Mower (2010-03) DRIVE Parts Diagram

Walk-Behind Mower

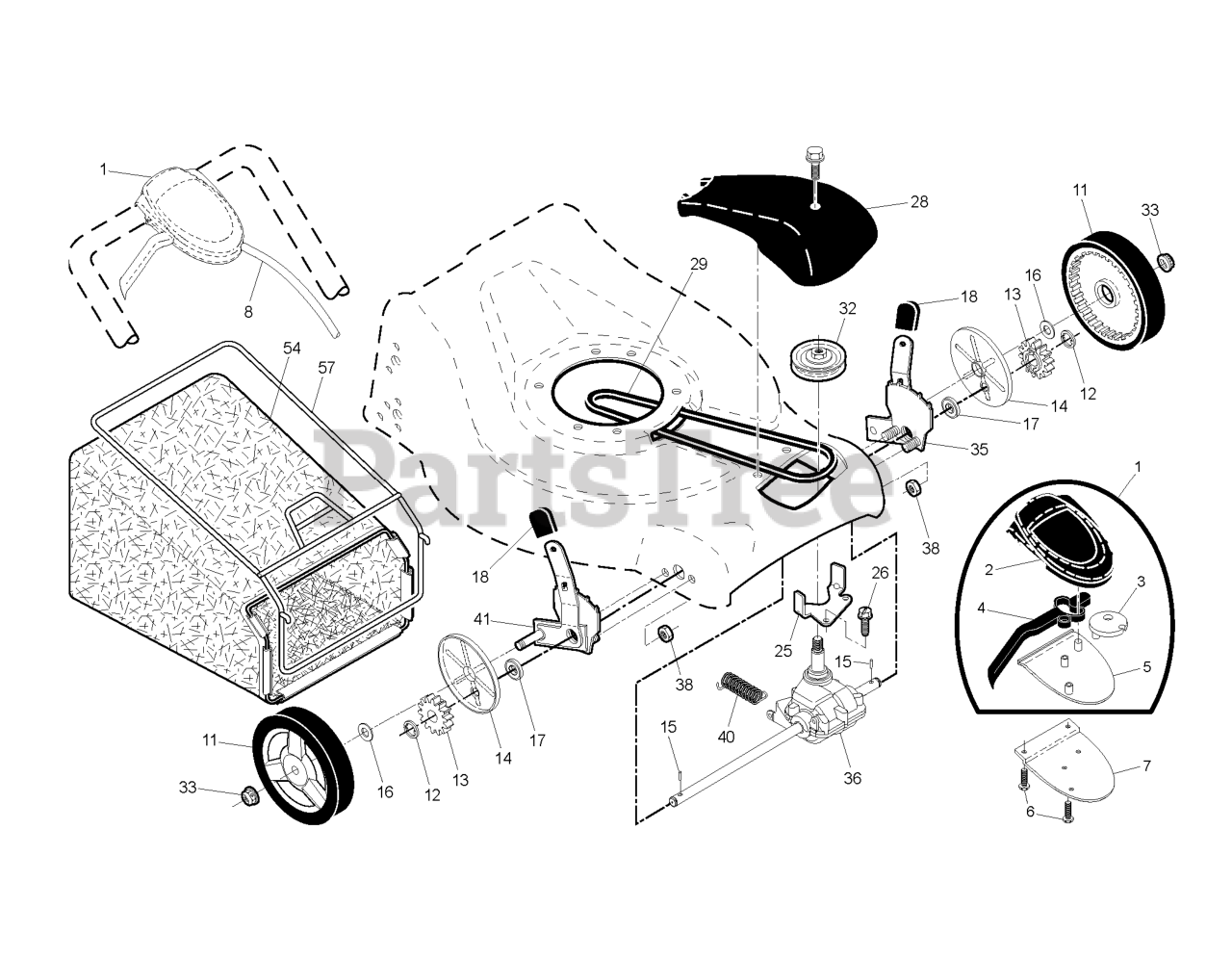

DRIVE Parts Diagram

  • Title

9

Husqvarna 532406259

CABLE ASSEMBLY, DRIVE

$53.99

$

In Stock, Qty 5

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 20+

0

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$17.99

$

In Stock, Qty 10

0

3

Husqvarna 532406262

PULLEY.CAM.DRIVE.CONTROL.EZ

$

$

Not available

4

Husqvarna 532425662

LEVER.BLACK

$17.99

$

In Stock, only 2 left!

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$8.49

$

In Stock, Qty 20+

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 2 left!

0

1

Husqvarna 532425661

CONTROL.DR.QW.21FGD.BS.GY/BLK

$79.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532404833

TRANSMISSION.21.FGD.HT.VST

$

$

Not available

26

Husqvarna 532163409

SCREW

$3.99

$

In Stock, Qty 9

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 532411664

COVER BOTTOM AUTO WLK CONTROL
(Superseded to 532406261)

$21.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532424201

RP KIT, WHEEL ADJUSTER, LH
(Superseded to 532438485)

$

$

Not available

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 20+

0

41

Husqvarna 532424200

KIT, WHEEL ADJUSTER, RH
(Superseded to 532438486)

$

$

Not available

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, only 4 left!

0

57

Husqvarna 532411950

FRAME.GBAG.21.FWGD

$

$

Not available

25

Husqvarna 532411663

BELT KEEPER
(Superseded to 532431711)

$

$

Not available

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$35.99

$

In Stock, Qty 20+

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

40

Husqvarna 532406558

SPRING

$9.99

$

In Stock, Qty 20+

0

2

Husqvarna 532411673

COVER TOP AUTO WALK CONTROL
(Superseded to 532406260)

$

$

Not available

29

Husqvarna 532194149

BELT.DRIVE.FG

$22.99

$

In Stock, only 2 left!

0

54

Husqvarna 532401903

Grassbag Assembly

$

$

Currently unavailable

28

Husqvarna 532432664

COVER.DRIVE.ASM.185579.CE.WALK

$27.99

$

In Stock, only 1 left!

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.99

$

In Stock, only 3 left!

0
