R 53 SVL (961410226-03) - Husqvarna Walk-Behind Mower (2011-12) DRIVE Parts Diagram

Walk-Behind Mower

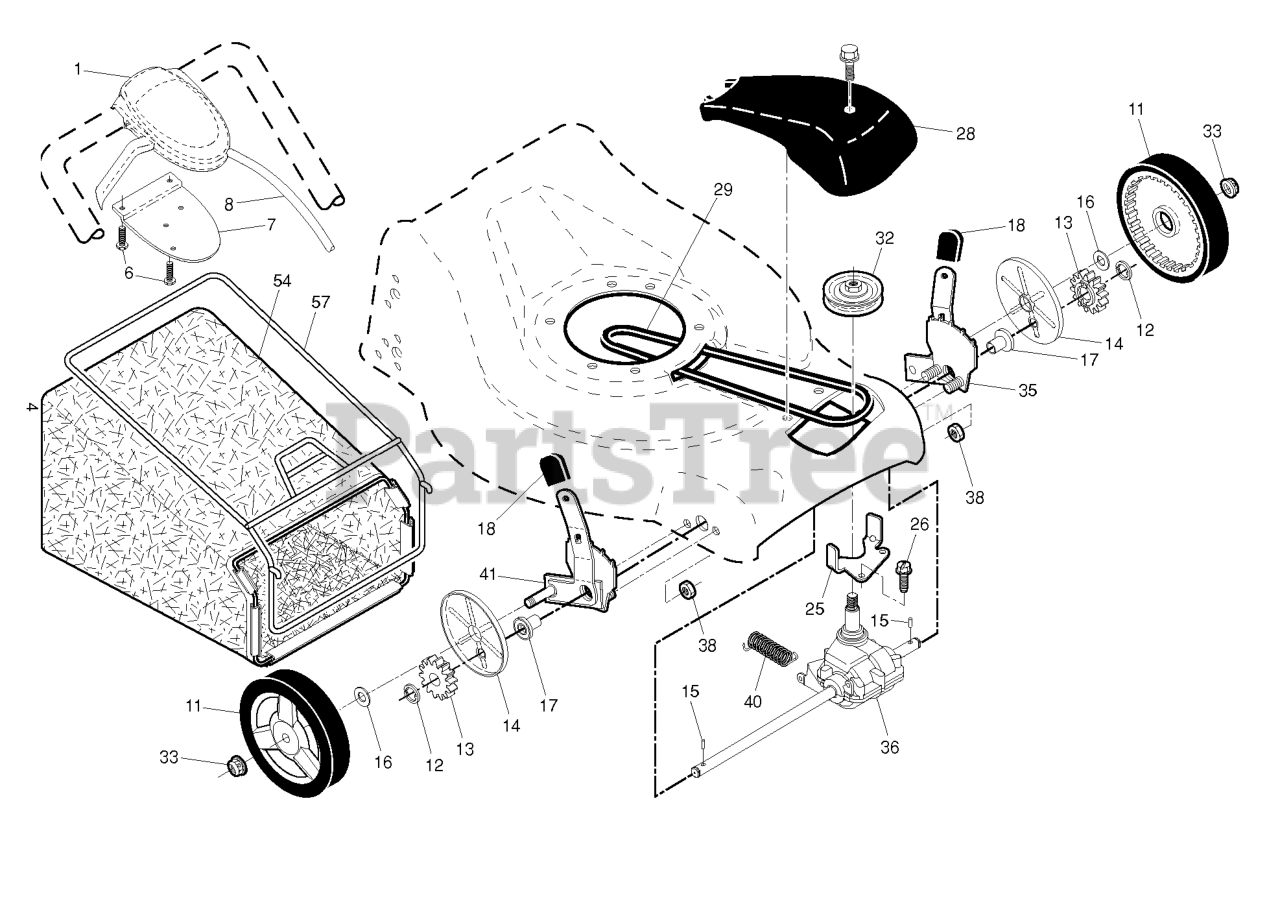

DRIVE Parts Diagram

  • Title

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

18

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532411950

FRAME.GBAG.21.FWGD

$

$

Not available

54

Husqvarna 532401903

Grassbag Assembly

$

$

Currently unavailable

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 532432664

COVER.DRIVE.ASM.185579.CE.WALK

$24.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

8

Husqvarna 532406259

CABLE ASSEMBLY, DRIVE

$53.99

$

In Stock, Qty 15

0

35

Husqvarna 532438485

KIT ADJUSTER ASM.438151.

$44.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532421836

BEARING.ASM.
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

40

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 19

0

29

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 4 left!

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

1

Husqvarna 532425661

CONTROL.DR.QW.21FGD.BS.GY/BLK

$84.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

36

Husqvarna 532404833

TRANSMISSION.21.FGD.HT.VST

$120.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532438486

KIT ADJUSTER ASM.438148

$44.99

$

In Stock, only 3 left!

0

15

Husqvarna 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0
