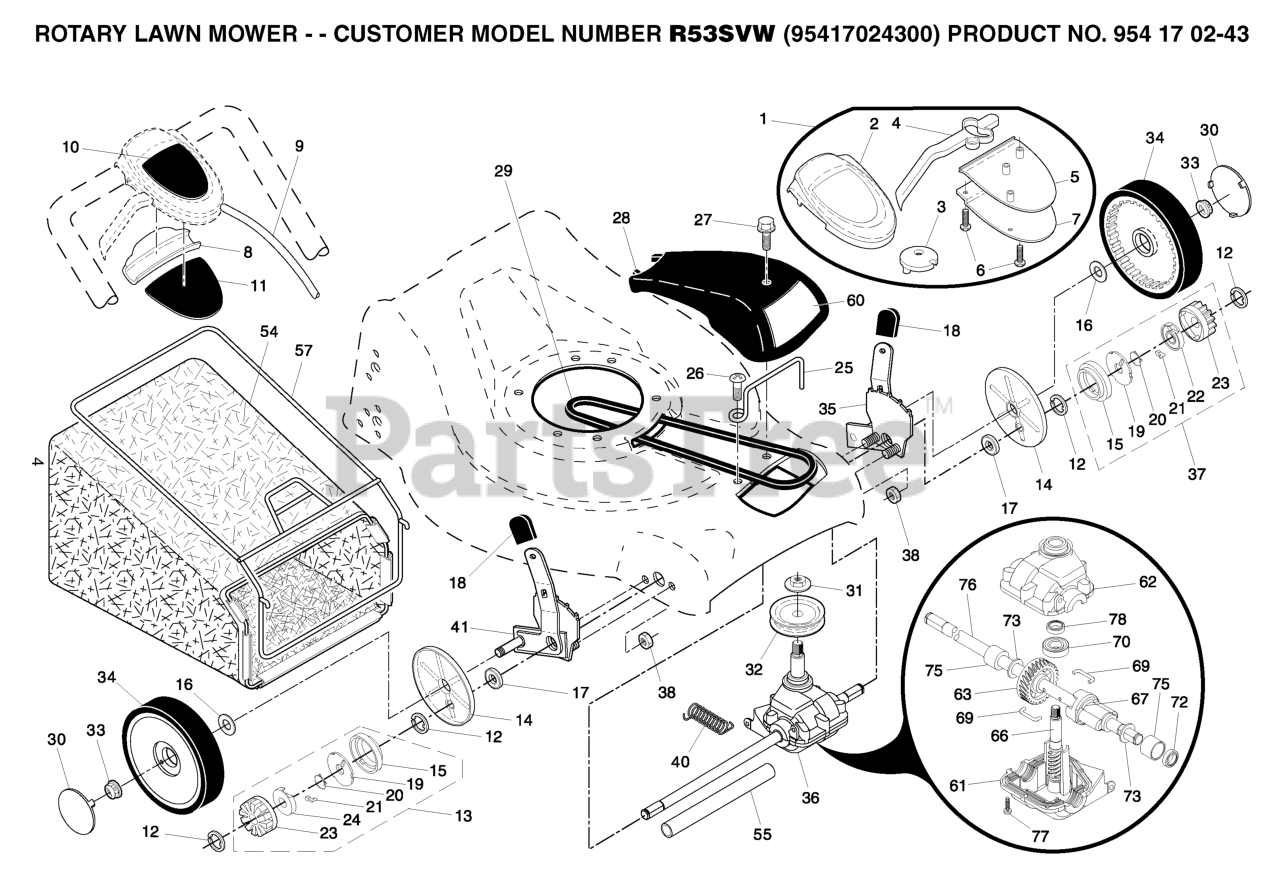

R 53 SVW (954170243-00) - Husqvarna Walk-Behind Mower (2005-02) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

77

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

23

Husqvarna 532175103

GEAR, PINION

$

$

Not available

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532184172

SEAL.PINION

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532183923

NEEDS DESCRIPTION

$

$

Currently unavailable

67

Husqvarna 532187528

SPACER

$

$

Not available

70

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.49

$

In Stock, Qty 10

0

72

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

78

Husqvarna 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

69

Husqvarna 532183505

WIRE, FORMED (15966)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$24.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532187529

SHAFT OUTPUT (12198)

$78.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532180756

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

54

Husqvarna 532195050

GRASS BAG

$

$

Not available

75

Husqvarna 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532187525

LOWER CASE

Note: USE DOW CORNING #709 TO RESEAL GEAR CASE HALVES.

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532189378

DECAL, DRIVE

$36.99

$

In Stock, only 1 left!

0

60

Husqvarna 532193557

DECAL DRIVE COVER

$

$

Not available

18

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

66

Husqvarna 532187527

SHAFT INPUT (13056)

$

$

Not available

35

Husqvarna 532180915

KIT.ADJUSTER.ASM.EZ.LH

$

$

Not available

2

Husqvarna 532188279

COVER, DRIVE CONTROL, TOP
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532195071

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$7.49

$

In Stock, only 1 left!

0

55

Husqvarna 532175739

DRIVESHAFT COVER

$

$

Not available

24

Husqvarna 532175102

RETAINER, DRIVE, RH

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 532173715

BOLT.HEX.HDWSH.5/16-18X1.00

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532187526

UPPER CASE

Note: USE DOW CORNING #709 TO RESEAL GEAR CASE HALVES.

$15.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532187212

TRANSMISSION.21RD.FGDE

$

$

Not available

7

Husqvarna 532187097

BRACKET, DRIVE CONTROL
(Superseded to 532400723)

$

$

Not available

40

Husqvarna 532182226

SPRING, RETURN
(Superseded to 532406558)

$8.99

$

In Stock, Qty 19

0

30

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

20

Husqvarna 532188291

SPRING, TORSION

$5.99

$

In Stock, Qty 13

0

5

Husqvarna 532188278

COVER, DRIVE CONTROL BOTTOM
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532180914

KIT.ADJUSTER.ASM.EZ(169770).RT

$54.99

$

In Stock, only 1 left!

0

29

Husqvarna 532169778

V-BELT

$24.99

$

In Stock, only 1 left!

0

32

Husqvarna 532189406

PULLEY
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

73

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532188815

BAG FRAME
(Superseded to 532194643)

$

$

Not available

22

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

63

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

In Stock, only 1 left!

0

9

Husqvarna 532195412

NEEDS DESCRIPTION

$

$

Not available

17

Husqvarna 532169911

BEARING, BALL

$

$

Not available

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

25

Husqvarna 532188102

KEEPER, BELT

$

$

Not available

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$26.99

$

In Stock, only 1 left!

0

8

Husqvarna 532184987

CAP.DRIVE.CONTROL.BLACK.HI-VAC

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0
