R-8 (990918) - Homelite Tiller, 8hp Frame and Handles Group (3837I01) Parts Diagram

Tiller, 8hp

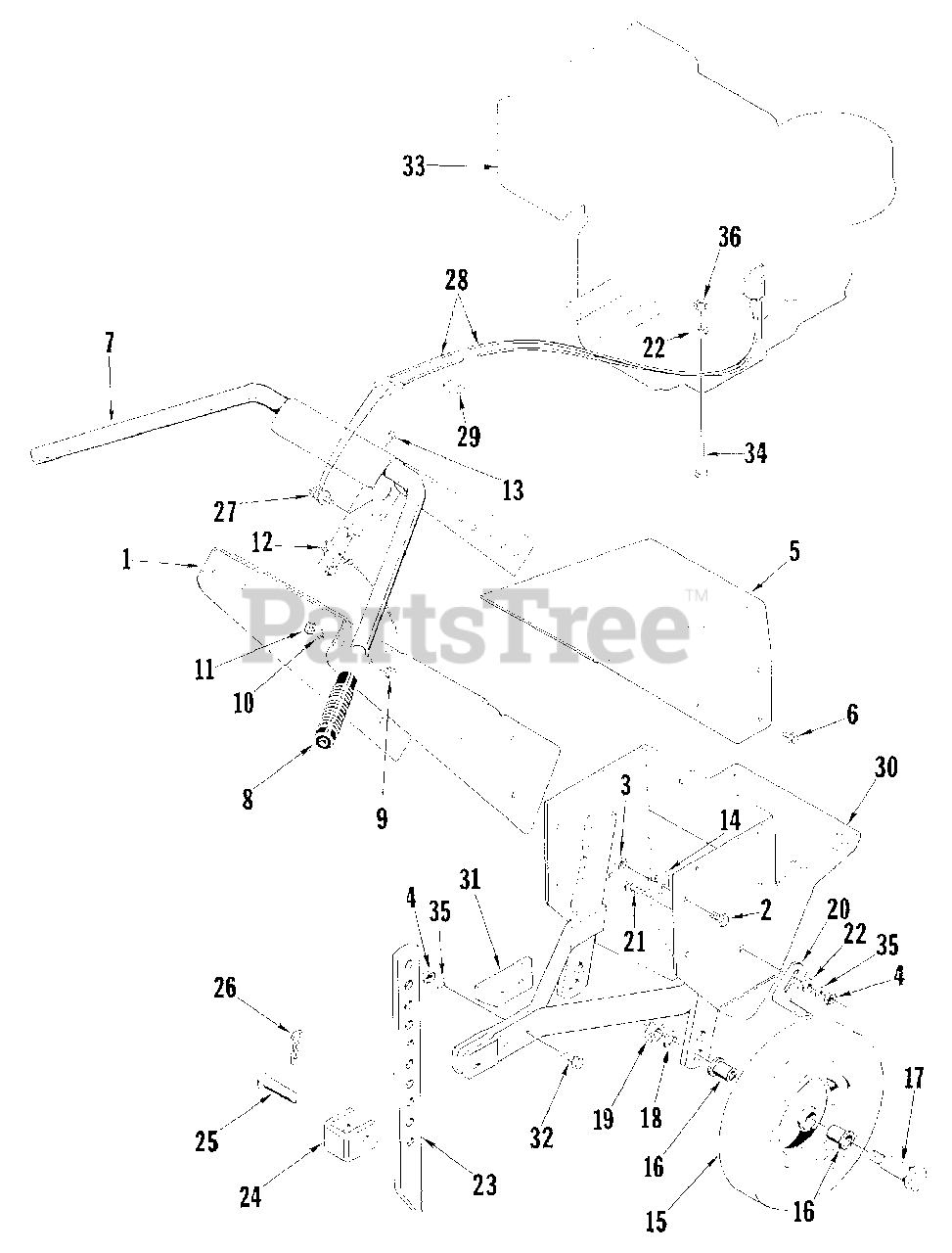

Frame and Handles Group (3837I01) Parts Diagram

  • Title

1

Simplicity LM-01779-96

CHANNEL, Handle Bar Support

$

$

Not available

2

Simplicity LM-09287-28

SCREW, Hex, Lock, Cap, 3/8-16 x 1"

$

$

Not available

3

Simplicity LM-09283-52

NUT, Hex, Lock, 3/8-16

$

$

Not available

4

Simplicity LM-09169-50

NUT, Hex, Full, 3/8-16

$

$

Not available

5

Simplicity LM-01768-59

COVER

$

$

Not available

6

Simplicity LM-09290-00

SCREW, Hex, 1/4-20 x 3/8

$

$

Not available

7

Simplicity LM-01768-53

CHANNEL, Handle Bar

$

$

Not available

8

Simplicity LM-01065-58

GRIP, Handle

$

$

Not available

9

Simplicity LM-07150-82

SCREW, Hex, Lock, Cap, 5/16-18 x 3/4

$

$

Not available

10

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

11

Simplicity LM-09173-72

NUT, Hex, Full, 5/16-18

$

$

Not available

12

Simplicity LM-01764-73

CONTROL, Throttle

$

$

Not available

13

Simplicity LM-09231-88

SCREW, Self Tapping, 1/4-20 x 1/2"

$

$

Not available

14

Simplicity LM-01765-23

CLIP

$

$

Not available

15

Simplicity LM-01771-24

WHEEL & TIRE

$

$

Not available

16

Simplicity LM-01631-11

BUSHING, Wheel

$

$

Not available

17

Simplicity LM-01761-96

BOLT, Shoulder

$

$

Not available

18

Simplicity LM-09164-66

WASHER, Lock, 1/2"

$

$

Not available

19

Simplicity LM-09169-51

NUT, Hex, Full, 1/2-13

$

$

Not available

20

Simplicity LM-01763-64

SCRAPER

$

$

Not available

21

Simplicity LM-09222-49

BOLT, Carriage, 3/8-16 x 1"

$

$

Not available

22

Simplicity LM-09176-42

WASHER, Plain, 5/16"

$

$

Not available

23

Simplicity LM-01180-81

BAR, Depth

$

$

Not available

24

Simplicity LM-01183-71

CLAMP

$

$

Not available

25

Simplicity LM-01052-49

PIN, Inner

$

$

Not available

26

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

27

Simplicity LM-01746-95

SWITCH

$

$

Not available

28

Simplicity LM-01771-95

IGNITION, Interlock

$

$

Not available

29

Simplicity LM-01769-12

CLIP, Wire

$

$

Not available

30

Simplicity LM-01762-24

FRAME ASSEMBLY

$

$

Not available

31

Simplicity LM-01182-07

PLATE, Stop

$

$

Not available

32

Simplicity LM-09193-60

SCREW, Hex Cap, 3/8-16 x 1-1/2"

$

$

Not available

33

Simplicity 190492

ENGINE, 8 HP

$

$

Not available

34

Simplicity LM-09173-98

SCREW, Hex Cap, 5/16-18 x 1-3/4"

$

$

Not available

35

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

36

Simplicity LM-09290-01

NUT, Hex, Lock, 5/16-18

$

$

Not available
