R-8 (990918) - Homelite Tiller, 8hp Furrow Opener (3837I05) Parts Diagram

Tiller, 8hp

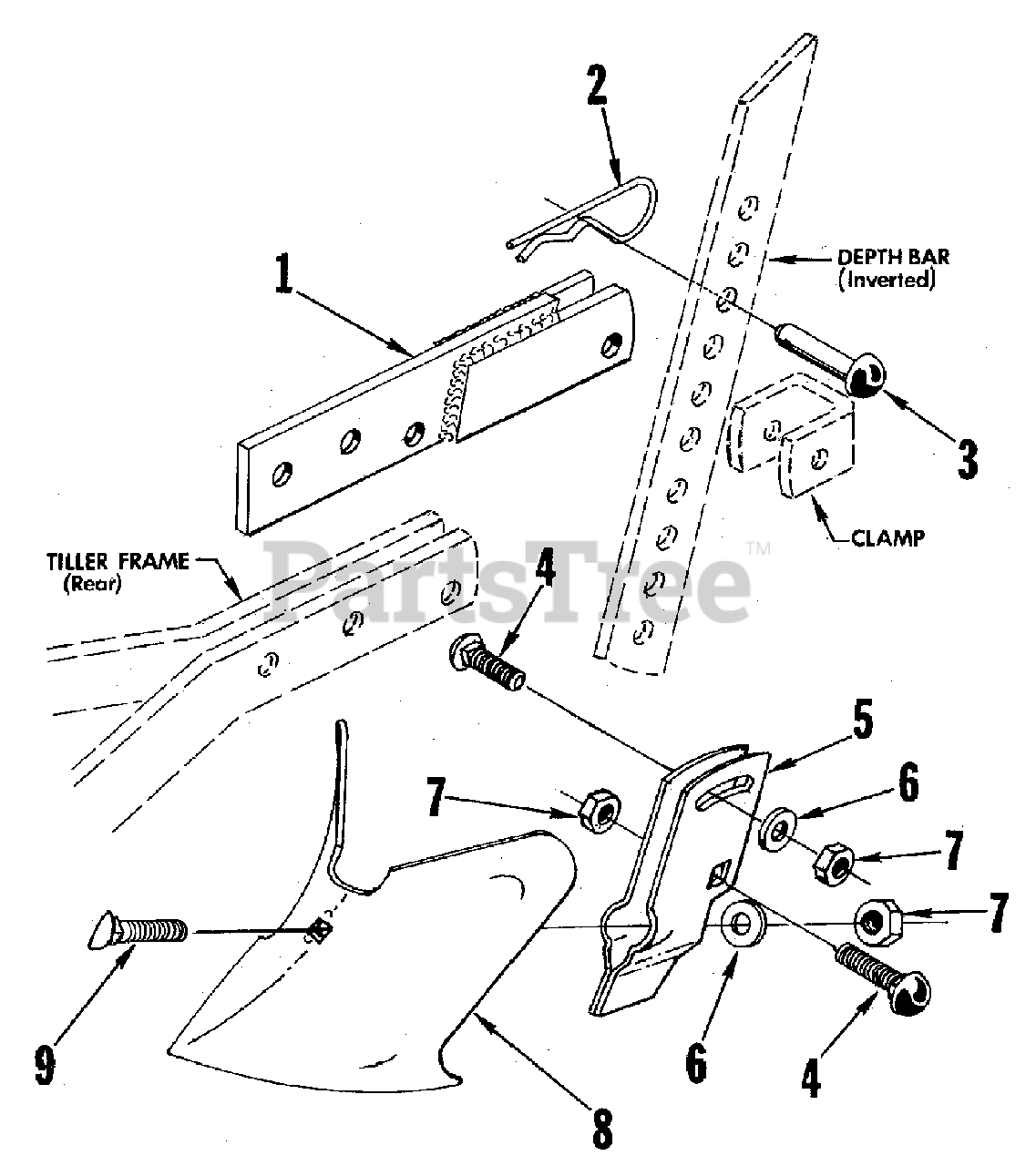

Furrow Opener (3837I05) Parts Diagram

  • Title

1

Simplicity LM-01182-87

SUPPORT ASSEMBLY, Extension

$

$

Not available

2

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

3

Simplicity LM-01180-53

PIN

$

$

Not available

4

Simplicity LM-07030-02

BOLT, Carriage, 3/8-16 x 1-1/4"

$

$

Not available

5

Simplicity LM-82715-03

TOOL HOLDER ASSEMBLY

$

$

Not available

6

Simplicity LM-09173-78

WASHER, Flat, 3/8"

$

$

Not available

7

Simplicity LM-09169-50

NUT, Hex, Full, 3/8-16

$

$

Not available

8

Simplicity LM-01030-10

FURROW OPENER, 8"

$

$

Not available

9

Simplicity LM-07040-01

BOLT, Plow, 3/8-16 x 1-3/4

$

$

Not available
