R 800 - Husqvarna Swedish Riding Mower (1993-04) Electrical Assembly Parts Diagram

Swedish Riding Mower

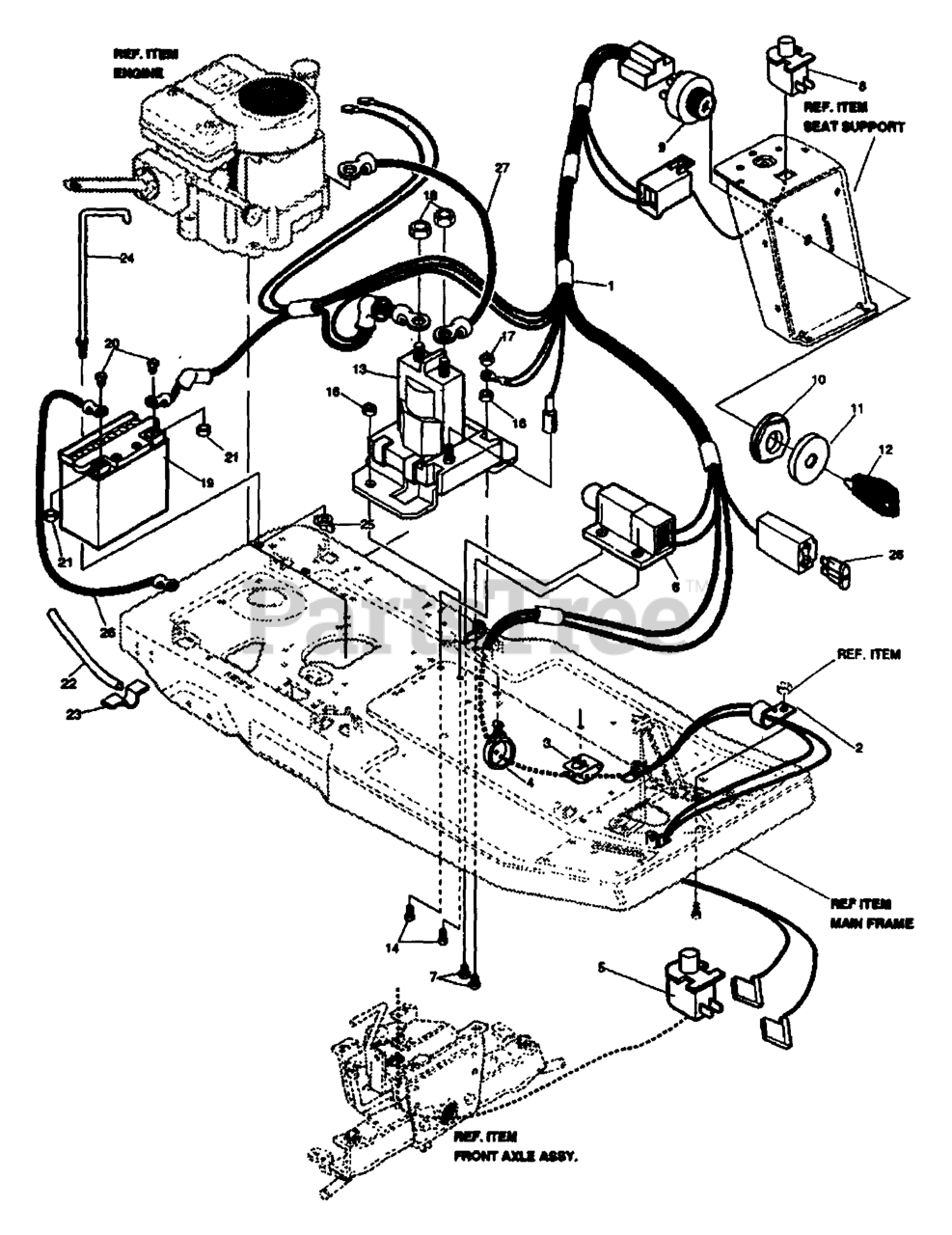

Electrical Assembly Parts Diagram

  • Title

1

Husqvarna 601001137

HARNESS, ELEC RER C2 8-11 B&S

$

$

Not available

2

Husqvarna 601000631

RETAINER, .31IDX.62X.03 W

$

$

Not available

3

Husqvarna 601001138

CLIP, TRW #C4490-022-27

$

$

Not available

4

Husqvarna 601000689

CLIP, WIRE ROUTING

$

$

Not available

5

Husqvarna 601001139

SWITCH, SNAP MNT

$

$

Not available

6

Husqvarna 601000691

SAFETY SWITCH

$

$

Not available

7

Husqvarna 601000626

SCREW, #12 X .50 PHPNHTA

$

$

Not available

8

Husqvarna 601001143

BATTERY, YUASA 12N14 NLA

$

$

Not available

9

Husqvarna 601001141

SWITCH, IGNITION W/O LIGHTS

$

$

Not available

10

Husqvarna 601000111

NUT, 5/8-32 IGN SWIT PLA

$

$

Not available

11

Husqvarna 601000112

BOOT,SWITCH

$

$

Not available

12

Husqvarna 601000123

KEY, IGNITION SWITCH

$

$

Not available

13

Husqvarna 601000592

SOLENOID, NEW CLUM

$

$

Not available

14

Husqvarna 601000083

SCREW, 1/4-20X .75 HXSEMM

$

$

Not available

16

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 601000102

NUT, 1/4-20 REGHEXKEPS

$

$

Not available

18

Husqvarna 601001142

NUT, 5/16-24 HKEPS

$

$

Not available

19

Husqvarna 601001143

BATTERY, YUASA 12N14 NLA

$

$

Not available

20

Husqvarna 601001144

SCR., METRIC, 6 X 1 X 11

$

$

Not available

21

NUT, METRIC, 6 X 1 HEX

Note: Included in Key #20 order Part No. 13487.

$

$

Not available

22

Husqvarna 601001145

DRAIN TUBE, BATT

$

$

Not available

23

Husqvarna 601000534

CLIP,1.380LG .255ID PRESS

$

$

Not available

24

Husqvarna 601001146

HOLD DOWN BRKT

$

$

Not available

25

Husqvarna 601001147

NUT, WING 1/4-20 NYLON

$

$

Not available

26

Husqvarna 601000596

WIRE, GROUND, 12.5"

$

$

Not available

27

Husqvarna 601001148

WIRE. STARTER,

$

$

Not available

28

Husqvarna 601000128

FUSE

$

$

Not available
