R 800 - Husqvarna Swedish Riding Mower (1993-04) Front Axle & Wheels Assembly Parts Diagram

Swedish Riding Mower

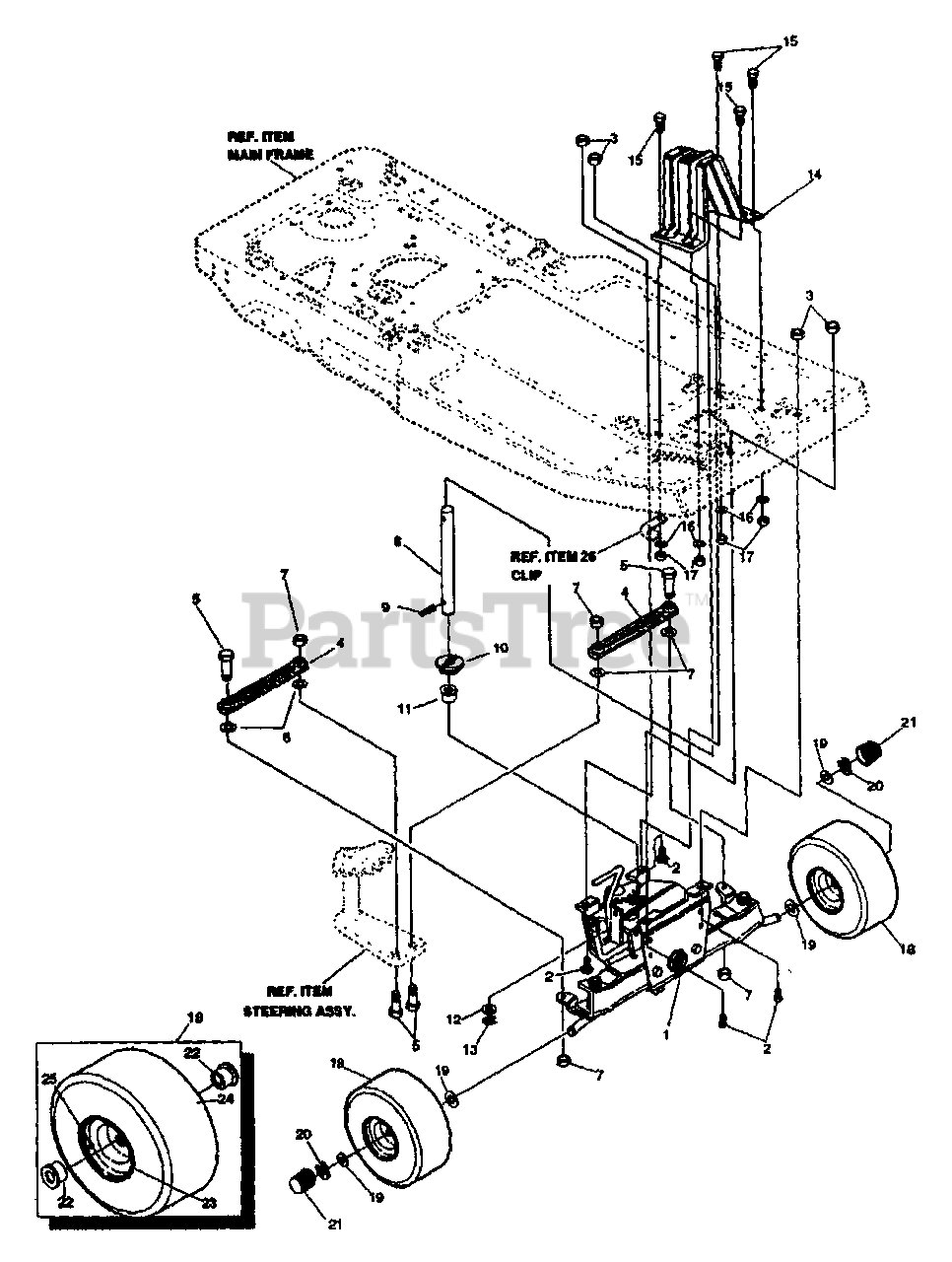

Front Axle & Wheels Assembly Parts Diagram

  • Title
1

Front Axle Assy.

$

$

Not available

2

Husqvarna 601000028

Screw, 5/16-18 x .75 HHC GRD 2

$

$

Not available

3

Husqvarna 601001051

Nut, 5/16-18 Hex Wd Fl Lk Whiz

$

$

Not available

$

$

Not available

5

Husqvarna 601000033

Screw, 3/8-16 x 1.25 H HC GR2

$

$

Not available

6

Husqvarna 601000015

Washer, Reg Spt Lk .393 x .68 x .10

$

$

Not available

7

Husqvarna 601000060

Nut, 30-16 Reg Hx Ctr Lk
(Superseded to 601002407)

$

$

Not available

8

Husqvarna 601001053

Shaft Steering

$

$

Not available

9

Husqvarna 601001054

Pin, Spring .250 Dia x 1.25 Lg

$

$

Not available

10

Husqvarna 601001055

Gear, Pinion

$

$

Not available

11

Husqvarna 601001056

Bushing - Steering

$

$

Not available

12

Husqvarna 601001035

Washer, Flat .635 x 1.31 x.07

$

$

Not available

13

Husqvarna 601001036

Ring, Retaining E .48 x .04 TRU 5133-62

$

$

Not available

14

Husqvarna 601001057

Support, Steering

$

$

Not available

15

Husqvarna 601001646

Screw, 5/16-18 x .63 WA H HC GR2

$

$

Not available

16

Husqvarna 601000019

Washer, Flat .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

17

Husqvarna 601000059

Nut. 5/16-18 Reg Hex Ctr Lk

$6.99

$

In Stock, only 2 left!

0

18

Tire & Rim, Pneumatic 11 x 4.00-5

$

$

Not available

19

Husqvarna 601000531

Washer, Flat .640 x 1.25 x .06

$

$

Not available

20

Husqvarna 601001036

Ring, Retaining E .48 x .04 TRU 5133-62

$

$

Not available

21

$

$

Not available

22

Husqvarna 601001058

Bearing, Wheel

$

$

Not available

$

$

Not available

24

Tire 11 X 4 - Turf

Note: (SEE TIRE TREAD PAGE)

$

$

Not available

25

Husqvarna 601000096

Valve Stem

$

$

Not available

26

Electrical System

Note: See "Electrical Assembly" illustration and parts list.

$

$

Not available
