R 800 - Husqvarna Swedish Riding Mower (1993-04) Front Axle & Wheels Assembly Parts Diagram

Swedish Riding Mower

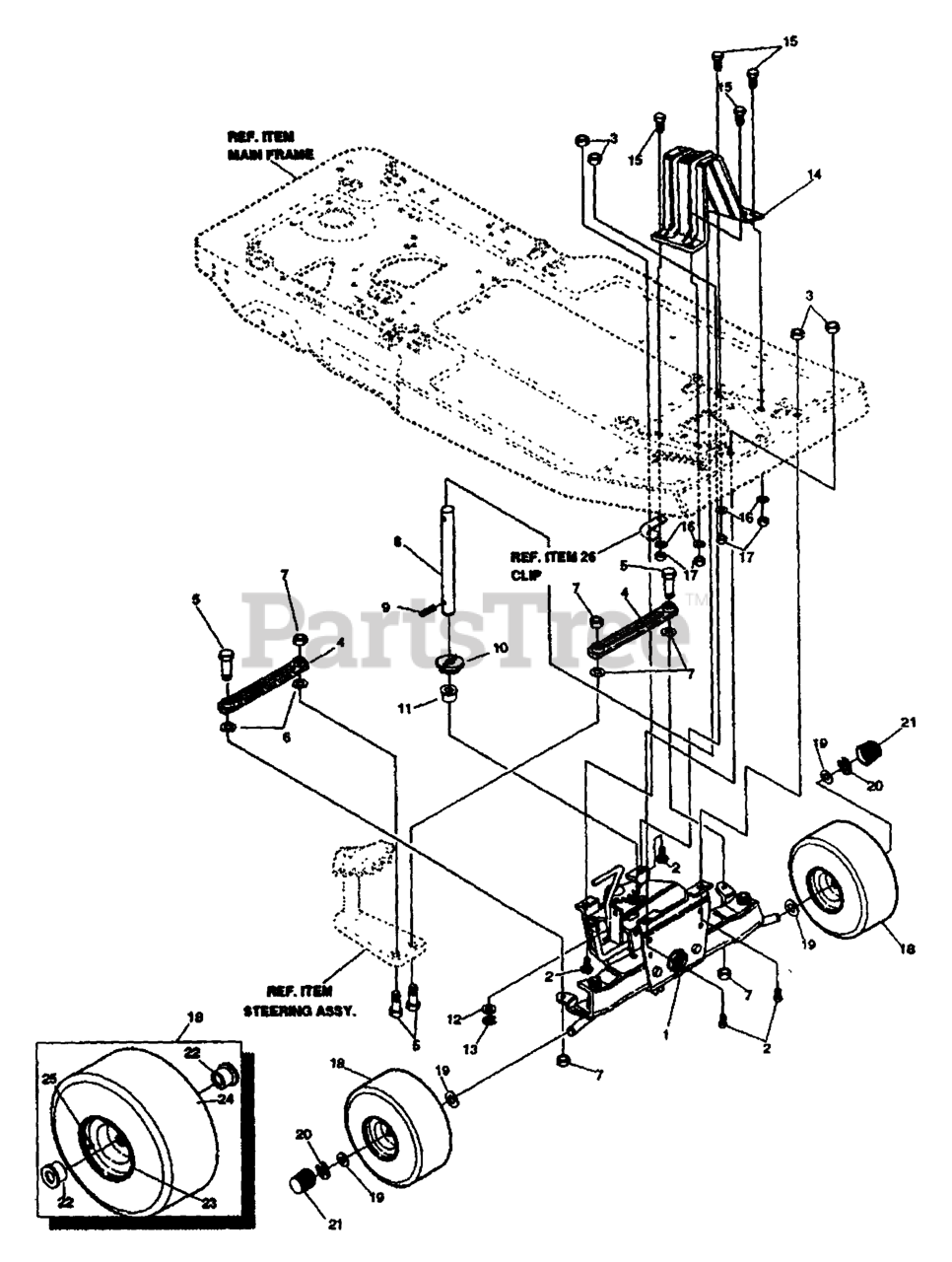

Front Axle & Wheels Assembly Parts Diagram

  • Title

1

Front Axle Assy.

Note: Order Individual Parts

$

$

Not available

2

Husqvarna 601000028

SCREW, 5/16-18X .75 HHC

$

$

Not available

3

Husqvarna 601001051

NUT, 5/16-18

$

$

Not available

4

Husqvarna 601001052

TIE ROD

$

$

Not available

5

Husqvarna 601000033

SCREW, 3/8-16X1.25 HHC

$

$

Not available

6

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

7

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

8

Husqvarna 601001053

Shaft Steering

$

$

Not available

9

Husqvarna 601001054

PIN, SPRING

$

$

Not available

10

Husqvarna 601001055

GEAR, PINION

$

$

Not available

11

Husqvarna 601001056

BUSHING-STEERING

$

$

Not available

12

Husqvarna 601001035

WASHER, FLAT

$

$

Not available

13

Husqvarna 601001036

RING, RET E NLA

$

$

Not available

14

Husqvarna 601001057

Support, Steering

$

$

Not available

15

Husqvarna 601001646

Screw, 5/16-18 x .63 WA H HC GR2

$

$

Not available

16

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

17

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

18

Tire & Rim, Pneumatic 11 x 4.00-5

$

$

Not available

19

Husqvarna 601000531

WASHER,FLAT.640X1.25X.06

$

$

Not available

20

Husqvarna 601001036

RING, RET E NLA

$

$

Not available

21

Husqvarna 601000526

HUB CAP

$

$

Not available

22

Husqvarna 601001058

BEARING, WHEEL

$

$

Not available

23

Husqvarna 601001050

HANGER

$

$

Not available

24

Tire 11 X 4 - Turf

Note: (SEE TIRE TREAD PAGE)

$

$

Not available

25

Husqvarna 601000096

VALVE STEM

$

$

Not available

26

Electrical System

Note: See "Electrical Assembly" illustration and parts list.

$

$

Not available
