R 800 - Husqvarna Swedish Riding Mower (1993-04) Mower Drive Assembly Parts Diagram

Swedish Riding Mower

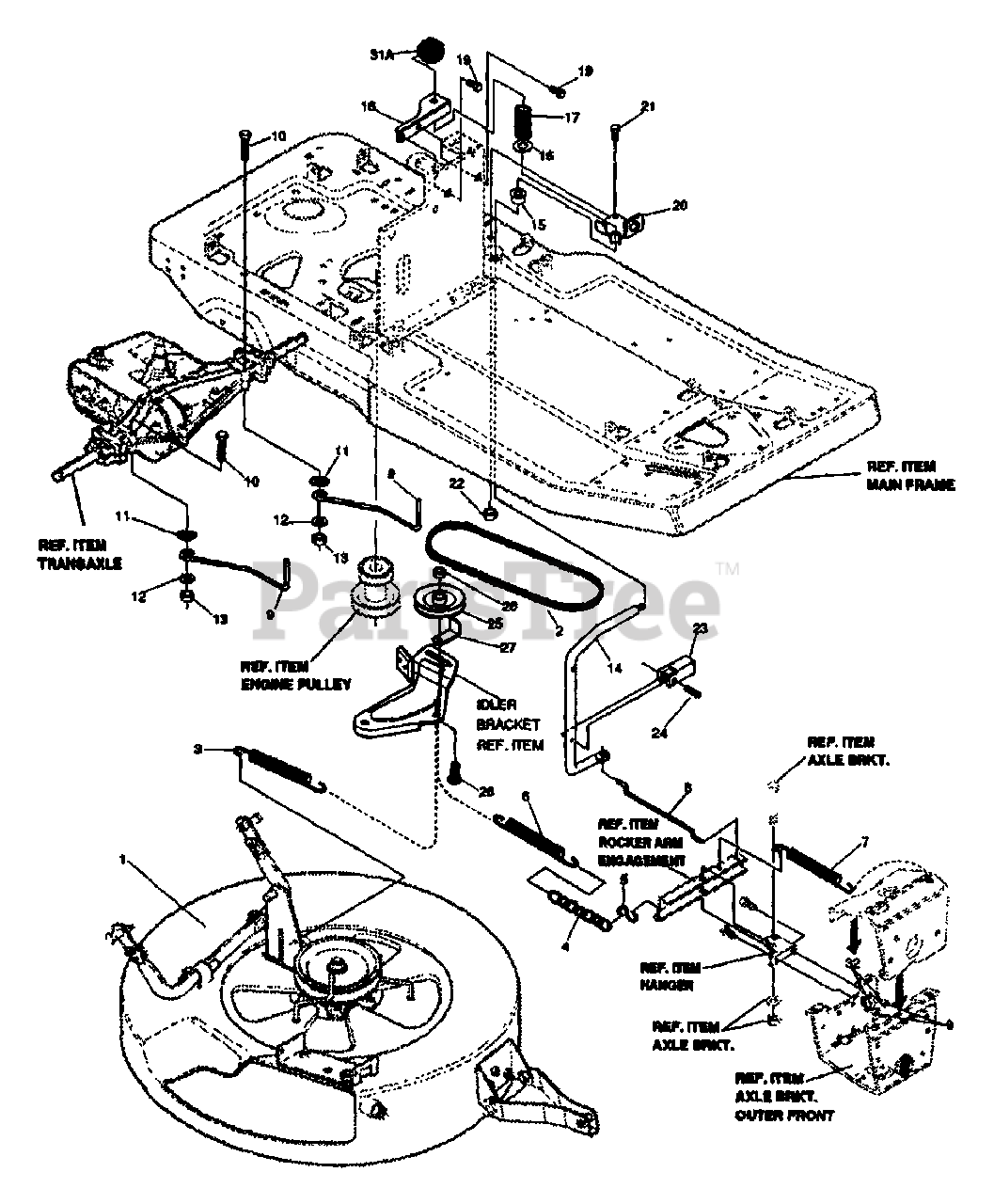

Mower Drive Assembly Parts Diagram

  • Title

1

ASSY., DECK, PRE-PAINT 30"

Note: Order Individual Parts

$

$

Not available

2

Husqvarna 601001092

BELT, V 4L 50.5LG

$

$

Not available

3

Husqvarna 601000517

SPRING .071 X .62 X 4.37

$

$

Not available

4

Husqvarna 601001093

CHAIN, JACK

$

$

Not available

5

Husqvarna 601001094

HOOK, S, 10 GA. STEEL

$

$

Not available

6

Husqvarna 601001095

SPRING, TENSION

$

$

Not available

7

Husqvarna 601001039

HANGER

$

$

Not available

8

Husqvarna 601000072

BOLT, 5/16-18X .63 HHC
(Superseded to 601000073)

$

$

Not available

9

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 601001048

ROCKER ARM MOWER ENGAGEMENT

$

$

Not available

11

Husqvarna 601001049

BOLT .500 X 1.18 HHSH 3/8-16

$

$

Not available

12

Husqvarna 601000656

WASHER, FLAT .390X1.25X.

$

$

Not available

13

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

14

Husqvarna 601000517

SPRING .071 X .62 X 4.37

$

$

Not available

15

Husqvarna 601001096

ROD, CONNECTING

$

$

Not available

16

Husqvarna 601001097

GUIDE, BELT

$

$

Not available

17

Husqvarna 601001098

SCREW, 5/16-18

Note: Standard Hardware Items

$

$

Not available

18

Husqvarna 601000055

WASHER, EXLK .320X.61X

Note: Standard Hardware Items

$

$

Not available

19

Husqvarna 601000019

WASHER, FLAT .344X .69X.

Note: Standard Hardware Items

$

$

Not available

20

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

Note: Standard Hardware Items

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 601001099

HANDLE, MOWER ENGAGEMENT

$

$

Not available

22

Husqvarna 601001100

BEARING, FLANGED, NYLON

$

$

Not available

23

Husqvarna 601001101

RETAINER, SPRING

$

$

Not available

24

Husqvarna 601001102

SPRING COMPRESSION

$

$

Not available

25

Husqvarna 601001103

SUPPORT BRACKET PTO

$

$

Not available

26

Husqvarna 601000668

SCREW, 1/4-20X .50 WAHHTA
(Superseded to 601001445)

Note: Standard Hardware Items

$

$

Not available

27

Husqvarna 601001104

BRACKET, PTO LIMIT

$

$

Not available

28

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

Note: Standard Hardware Items

$

$

Not available

29

Husqvarna 600000059

NUT, 5/16-18 REG HEX CTR LK

Note: Standard Hardware Items

$

$

Currently unavailable

30

Husqvarna 601001105

STOP, PTO ENGAGEMENT

$

$

Not available

31

Husqvarna 601001106

PIN, SPRING

$

$

Not available

31A

Husqvarna 601001087

SHIFT KNOB

$

$

Not available

32

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

33

Husqvarna 601001107

PULLEY, IDLER

$

$

Not available

34

Husqvarna 601000551

BOLT, 3/8-16X1.50 CARR

$

$

Not available

35

Husqvarna 601000528

MF RETAINER, STRAP BELT

$

$

Not available

36

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available
