R 800 - Husqvarna Swedish Riding Mower (1993-04) Traction Drive Assembly Parts Diagram

Swedish Riding Mower

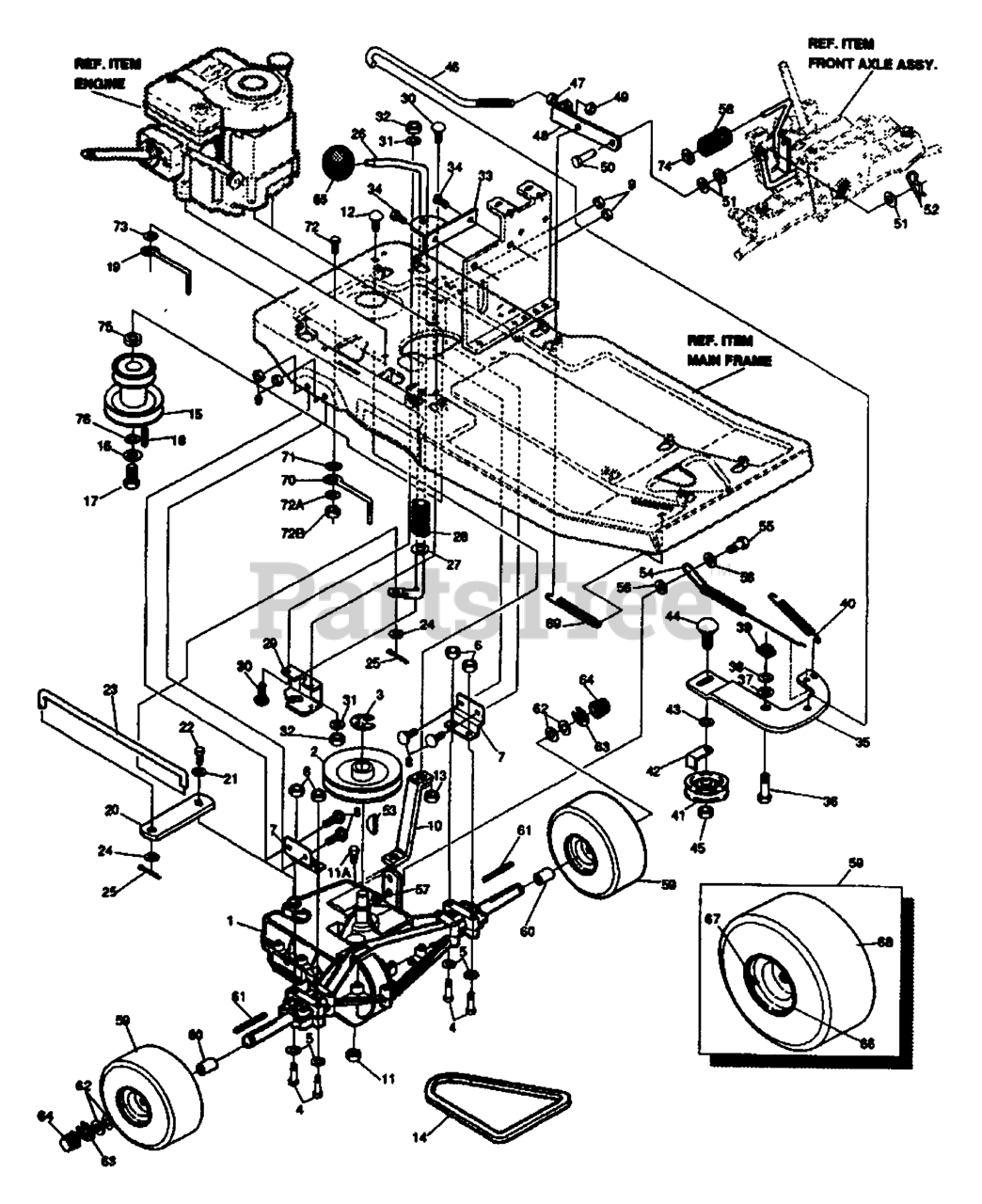

Traction Drive Assembly Parts Diagram

  • Title

1

Transaxle

Note: Contact your nearest transaxle dealer for parts & service.

$

$

Not available

2

Husqvarna 601000149

SHAFT, STEERING EURO LT S

$

$

Not available

3

Husqvarna 601000093

RING, RETEX .58X.04TRU510

$

$

Not available

4

Husqvarna 601001060

SCREW, 5/16-18

$

$

Not available

5

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

6

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 601000666

LF BRKT, TRANSAXLE Z-PL

$

$

Not available

8

Husqvarna 601000052

BOLT, 5/16-18X .63 CARR

$

$

Not available

9

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 601001061

Bracket, Transaxle Support

$

$

Not available

11

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

11A

Husqvarna 601000032

SCREW, 5/16-18X2.00 HHC

$

$

Not available

12

Husqvarna 601000052

BOLT, 5/16-18X .63 CARR

$

$

Not available

13

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 601001062

BELT, V 4L

$

$

Not available

15

Husqvarna 601001063

PULLEY

$

$

Not available

16

Husqvarna 601000016

WASHER, REGSPTLK.459X.78X

$

$

Not available

17

Husqvarna 601001064

Screw, 7/16-20 x 2.50 HHC

$

$

Not available

18

Husqvarna 601001065

Key, Square .250 SQ x 2.50 Lg

$

$

Not available

19

Husqvarna 601001066

Belt Guide

$

$

Not available

20

Husqvarna 601001067

Shift Lever, Brkt

$

$

Not available

21

Husqvarna 601000622

WASHER,.750X.250 SP-TRANS

$

$

Not available

22

Husqvarna 601000606

SCREW, 1/4-28X .75 NYLHHC

$

$

Not available

23

Husqvarna 601001068

Rod, Shift Connecting

$

$

Not available

24

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

25

Husqvarna 601000930

COTTER PIN .125 X 1.0

$

$

Not available

26

Husqvarna 601001070

HANDLE, SHIFT

$

$

Not available

27

Husqvarna 601000021

WASHER, FLAT .531X1.06X.

$

$

Not available

28

Husqvarna 601001069

Spring, Shift Lever

$

$

Not available

29

Husqvarna 601001071

Bracket Detent Shift

$

$

Not available

30

Husqvarna 601001072

Bolt, 5/15-18 x .75 CARR

$

$

Not available

31

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

32

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 601001073

SHIFT CONTROL BRACKET

$

$

Not available

34

Husqvarna 601000668

SCREW, 1/4-20X .50 WAHHTA
(Superseded to 601001445)

$

$

Not available

35

Husqvarna 601001074

ARM, IDLER, TRANSAXLE DRIVE

$

$

Not available

36

Husqvarna 601001075

BOLT, .625 X .218 5/16-18

$

$

Not available

37

Husqvarna 601001035

WASHER, FLAT

$

$

Not available

38

Husqvarna 601000547

WASHER, FLAT .333X .87X.

$

$

Not available

39

Husqvarna 601001076

Tinnerman Clip

$

$

Not available

40

Husqvarna 601000517

SPRING .071 X .62 X 4.37

$

$

Not available

41

Husqvarna 601001017

SEAT PLATE

$

$

Not available

42

Husqvarna 601000518

BOLT, 5/16-18X1.63 CARR

$

$

Not available

43

Husqvarna 601000106

WASHER, FLAT .406X .73X.

$

$

Not available

44

Husqvarna 601000551

BOLT, 3/8-16X1.50 CARR

$

$

Not available

45

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

46

Husqvarna 601001078

Rod Clutch

$

$

Not available

47

Husqvarna 601000103

NUT, 5/16-18 HEXKEPS

$

$

Not available

48

Husqvarna 601001079

Brkt. Clutch Brake

$

$

Not available

49

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

50

Husqvarna 601001080

Pin Clevis .312 x .812

$

$

Not available

51

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

52

Husqvarna 601001031

Pin, Hair .091 DIA x 1.66 LG

$

$

Not available

53

Husqvarna 601000129

KEY, WDRF 606 .750X.187X.

$

$

Not available

54

Husqvarna 601001081

SPRING, BRAKE

$

$

Not available

55

Husqvarna 601000099

BOLT, .500X .375 HHSH 5/1

$

$

Not available

56

Husqvarna 601000322

WASHER, FLAT .515X1.31X.

$

$

Not available

57

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

58

Husqvarna 601001082

Pedal Pad

$

$

Not available

59

Tire & Rim, Pnuematic

Note: Order individual parts

$

$

Not available

60

Husqvarna 601001083

Spacer,

$

$

Not available

61

Husqvarna 601001084

Key, Square .187 SQ x 2.25 LG

$

$

Not available

62

Husqvarna 601001085

Washer, Flat .755 x 1.53 x .07

$

$

Not available

63

Husqvarna 601000525

RING, RETEX .57X.05TRU513

$

$

Not available

64

Husqvarna 601001086

CAP, HUB

$

$

Not available

65

Husqvarna 601001087

SHIFT KNOB

$

$

Not available

66

Husqvarna 601001088

WHEEL

$

$

Not available

67

Husqvarna 601000096

VALVE STEM

$

$

Not available

68

Tire 16 x 6.50 - 8 Turf

$

$

Not available

69

Husqvarna 601001089

SPRING

$

$

Not available

70

Husqvarna 601001066

Belt Guide

$

$

Not available

71

Husqvarna 601000056

WASHER, EXLK .384X.69X

$

$

Not available

72

Husqvarna 601000029

SCREW, 5/16-18X1.00 HHC

$

$

Not available

72A

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

72B

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

73

Husqvarna 601000056

WASHER, EXLK .384X.69X

$

$

Not available

74

Husqvarna 601001090

Cap, Push Nut

$

$

Not available

75

Husqvarna 601001091

SPACER, ENGINE SHEAVE

$

$

Not available

76

Husqvarna 601000613

WASHER,.980IDX1.38ODX.437

$

$

Not available
