R 850 8 - Husqvarna Swedish Riding Mower (1990-02) Lever Assembly Parts Diagram

Swedish Riding Mower

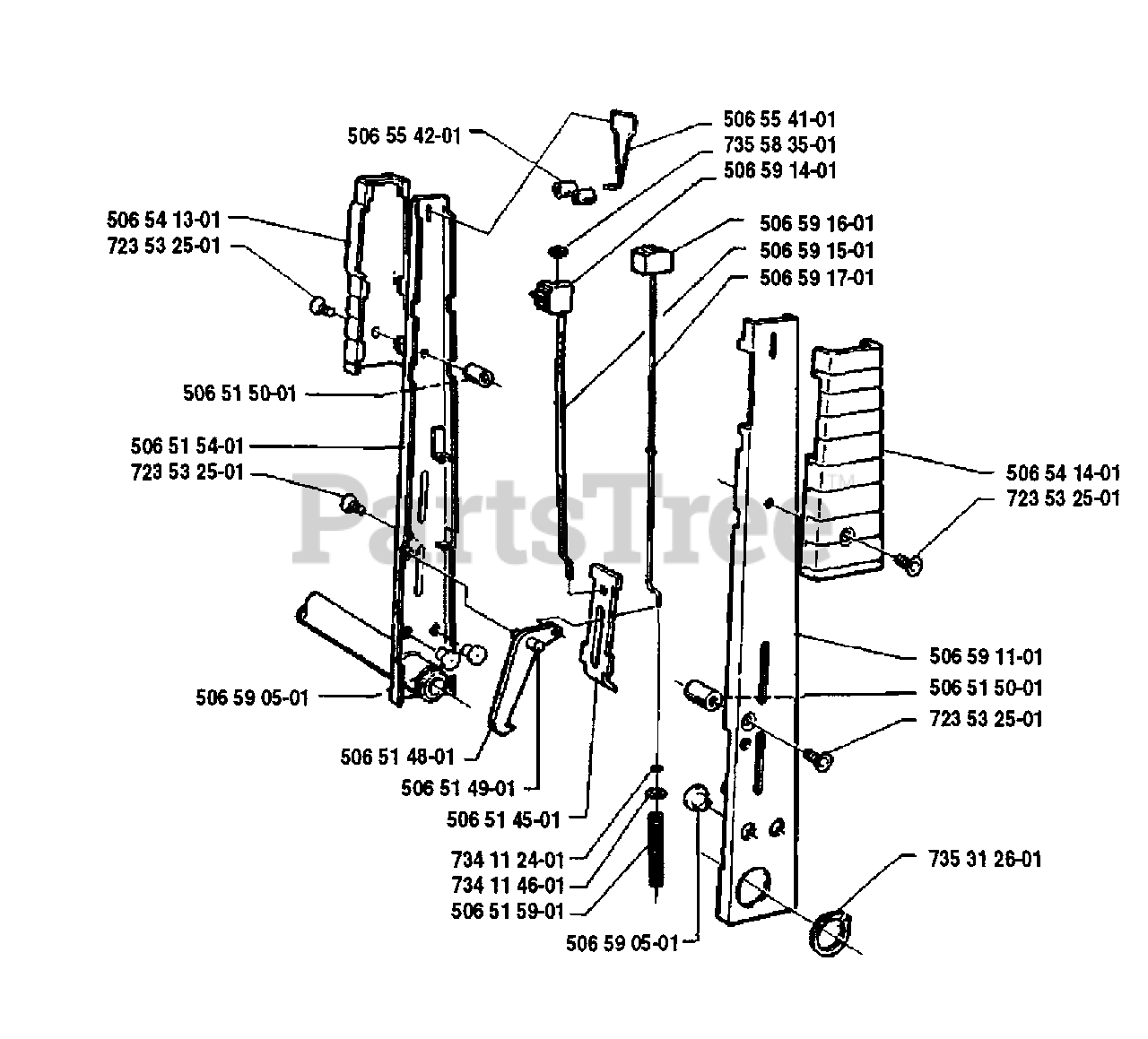

Lever Assembly Parts Diagram

  • Title

506541301

Husqvarna 506541301

LEVER COVER LEFT

$

$

Not available

723532501

Husqvarna 723532501

SCREW

$

$

Not available

506554201

Husqvarna 506554201

ROLLER

$

$

Not available

506545001

Husqvarna 506545001

$

$

Currently unavailable

506515401

Husqvarna 506515401

CONTROL LEVER HALF,L

$

$

Not available

723532501

Husqvarna 723532501

SCREW

$

$

Not available

506590501

Husqvarna 506590501

SPACER

$

$

Not available

506514801

Husqvarna 506514801

CATCH

$

$

Not available

506514901

Husqvarna 506514901

CATCH

$

$

Not available

506514501

Husqvarna 506514501

GUIDE

$

$

Not available

734112401

Husqvarna 734112401

WASHER BRB 3.2X7

$

$

Not available

506590501

Husqvarna 506590501

SPACER

$

$

Not available

506515901

Husqvarna 506515901

SPRING

$

$

Not available

734114601

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 8

0

735312601

Husqvarna 735312601

REPL BY 735 31 26-00
(Superseded to 735312600)

$5.99

$

In Stock, only 3 left!

0

723532501

Husqvarna 723532501

SCREW

$

$

Not available

506515001

Husqvarna 506515001

SPACER

$

$

Not available

506591101

Husqvarna 506591101

LEVER HALF, R

$

$

Not available

723532501

Husqvarna 723532501

SCREW

$

$

Not available

506541401

Husqvarna 506541401

LEVER COVER RIGHT

$

$

Not available

506591701

Husqvarna 506591701

ROD

$

$

Not available

506591501

Husqvarna 506591501

ROD

$

$

Not available

506591601

Husqvarna 506591601

HANDLE

$

$

Not available

506591401

Husqvarna 506591401

HANDLE

$

$

Not available

735583501

Husqvarna 735583501

CLIP

$7.49

$

In Stock, only 2 left!

0

506554101

Husqvarna 506554101

SPRING

$

$

Not available
