R 850 - Husqvarna Swedish Riding Mower (1994-03) Wheel & Tires Parts Diagram

Swedish Riding Mower

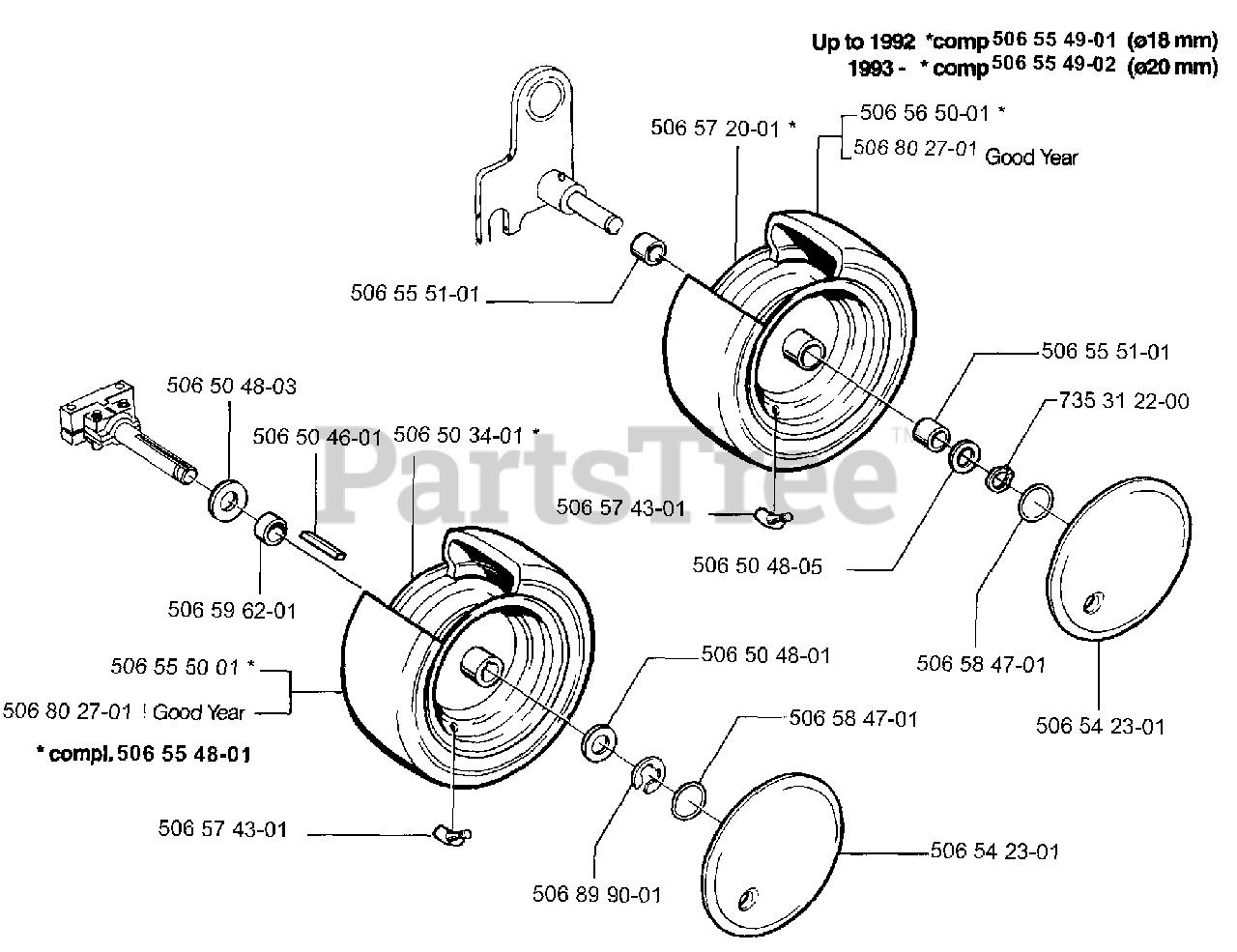

Wheel & Tires Parts Diagram

  • Title

506554901

Husqvarna 506554901

FRONT WHEEL

Note: Up to 1992

$

$

Not available

506554902

Husqvarna 506554902

FRONTWHEEL

Note: 1993

$

$

Not available

506565001

Husqvarna 506565001

$

$

Currently unavailable

506802701

Husqvarna 506802701

$

$

Currently unavailable

506572001

Husqvarna 506572001

WHEEL/FRONT

$

$

Not available

506555101

Husqvarna 506555101

SLIDE BEARING-BUSCHING

$

$

Not available

735312200

Husqvarna 735312200

RETAINING RING SGA 20

$3.49

$

Usually ships in 3-10 days

0

506555101

Husqvarna 506555101

SLIDE BEARING-BUSCHING

$

$

Not available

506504803

Husqvarna 506504803

WASHER

$6.99

$

Usually ships in 3-10 days

0

506504601

Husqvarna 506504601

KEY

$

$

Not available

506503401

Husqvarna 506503401

WHEEL,REAR
(Superseded to 535420001)

$

$

Not available

506574301

Husqvarna 506574301

VALVE

$

$

Not available

506504805

Husqvarna 506504805

WASHER

$7.99

$

In Stock, only 1 left!

0

506504801

Husqvarna 506504801

WASHER

$

$

Not available

506584701

Husqvarna 506584701

O-RING

$

$

Not available

506584701

Husqvarna 506584701

O-RING

$

$

Not available

506542301

Husqvarna 506542301

CAP

$

$

Not available

506542301

Husqvarna 506542301

CAP

$

$

Not available

506596201

Husqvarna 506596201

Spacer

$3.49

$

In Stock, only 2 left!

0

506555001

Husqvarna 506555001

TIRE

$

$

Not available

506802701

Husqvarna 506802701

$

$

Currently unavailable

506554801

Husqvarna 506554801

REAR WHEEL

$

$

Not available

506574301

Husqvarna 506574301

VALVE

$

$

Not available

506899001

Husqvarna 506899001

RETAINING RING

$4.99

$

In Stock, only 4 left!

0
