R 850 - Husqvarna Swedish Riding Mower (1998-03) HOOD Parts Diagram

Swedish Riding Mower

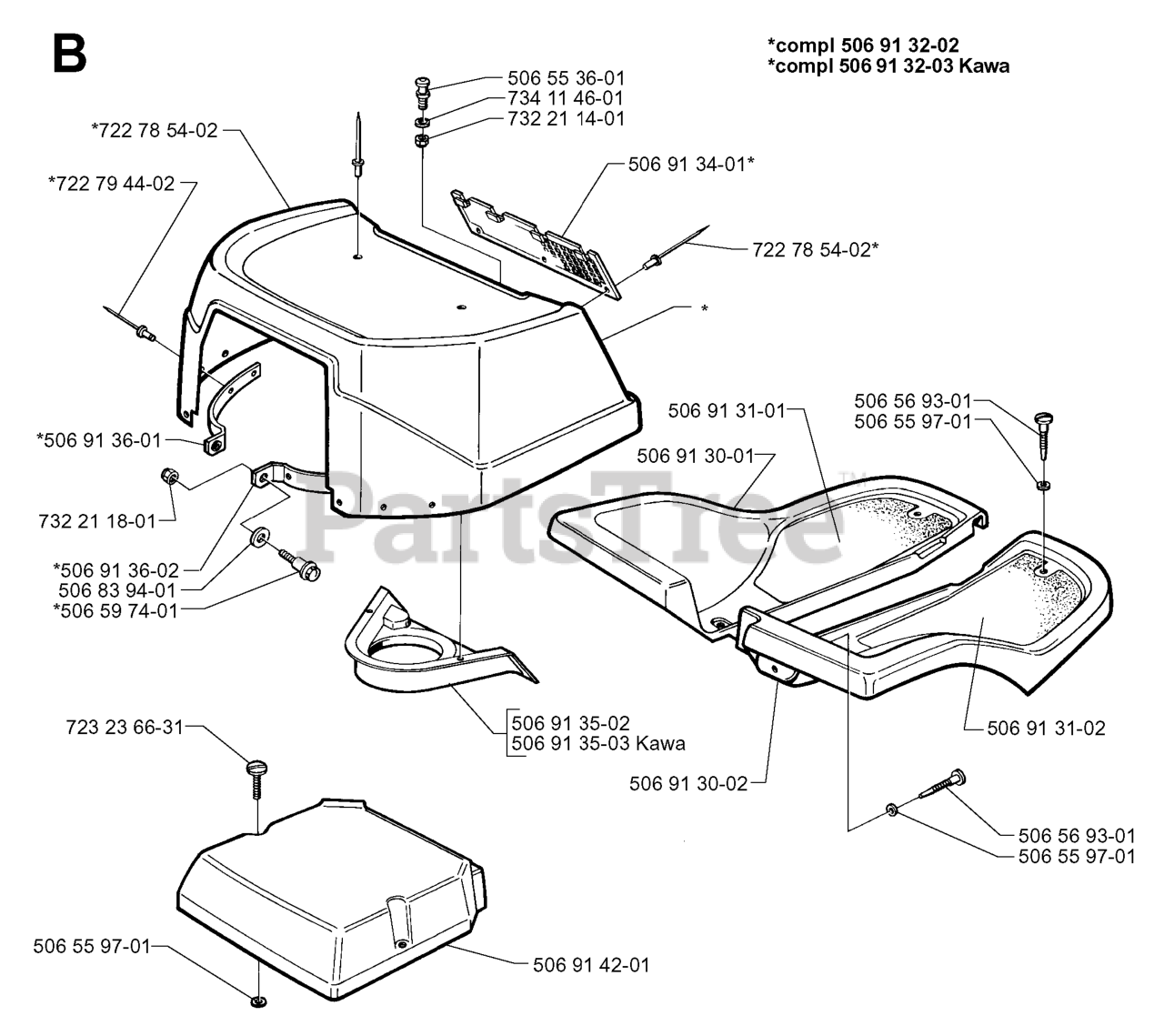

HOOD Parts Diagram

  • Title

506 91 31-01

Husqvarna 506913101

MAT LH
(Superseded to 535466101)

$

$

Not available

506 91 36-02

Husqvarna 506913602

Bracket

$

$

Not available

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 5

0

506 91 30-01

Husqvarna 506913001

$

$

Currently unavailable

506 55 97-01

Husqvarna 506559701

WASHER

$5.99

$

In Stock, Qty 5

0

506 91 32-03

Husqvarna 506913203

Note: KAWA

$

$

Currently unavailable

506 91 32-02

Husqvarna 506913202

ENGINE COVER
(Superseded to 506984605)

$

$

Not available

722 78 54-02

Husqvarna 722785402

Rivet

$2.49

$

Usually ships in 3-10 days

0

506 91 34-01

Husqvarna 506913401

SCREEN

$

$

Not available

506 91 35-03

Husqvarna 506913503

Note: KAWA

$

$

Currently unavailable

506 55 36-01

Husqvarna 506553601

Knob

$

$

Not available

506 91 36-01

Husqvarna 506913601

Bracket

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506 91 35-02

Husqvarna 506913502

AIR CONDUCTOR

$

$

Not available

506 56 93-01

Husqvarna 506569301

SCREW
(Superseded to 506982601)

$6.99

$

In Stock, Qty 7

0

722 79 44-02

Husqvarna 722794402

Rivet

$

$

Not available

732 21 14-01

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

723 23 66-31

Husqvarna 723236631

SCREW

$

$

Not available

506 91 30-02

Husqvarna 506913002

$

$

Currently unavailable

506 91 31-02

Husqvarna 506913102

TREAD PLATE R
(Superseded to 535466102)

$

$

Not available

506 83 94-01

Husqvarna 506839401

SPRINGWASHER

$6.99

$

Usually ships in 3-10 days

0

506 91 42-01

Husqvarna 506914201

TRANSMISSION COVER

$

$

Not available

506 59 74-01

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0
