R 850 - Husqvarna Swedish Riding Mower (1998-03) WHEELS & TIRES Parts Diagram

Swedish Riding Mower

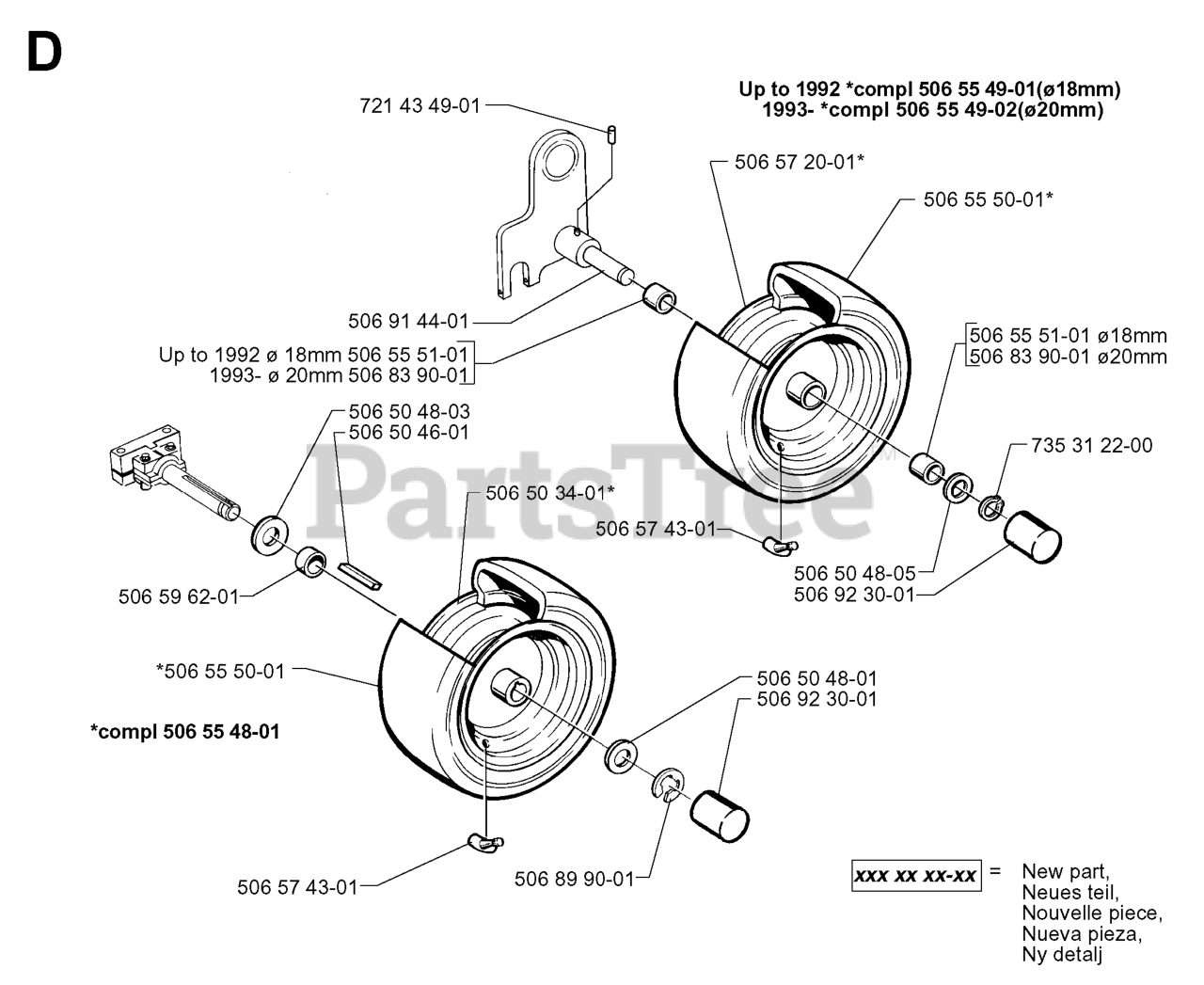

WHEELS & TIRES Parts Diagram

  • Title

506 83 90-01

Husqvarna 506839001

BUSHING

Note: 1993- DIA. 20MM

$

$

Not available

506 83 90-01

Husqvarna 506839001

BUSHING

Note: DIA. 20MM

$

$

Not available

506 57 20-01

Husqvarna 506572001

WHEEL/FRONT

$

$

Not available

506 50 46-01

Husqvarna 506504601

Key

$

$

Not available

506 92 30-01

Husqvarna 506923001

DUST CAP

$

$

Not available

506 91 44-01

Husqvarna 506914401

Shaft

$

$

Not available

506 50 48-01

Husqvarna 506504801

Washer

$

$

Not available

506 50 48-05

Husqvarna 506504805

WASHER

$7.99

$

In Stock, only 1 left!

0

506 57 43-01

Husqvarna 506574301

VALVE

$

$

Not available

506 89 90-01

Husqvarna 506899001

RETAINING RING

$4.99

$

In Stock, only 4 left!

0

735 31 22-00

Husqvarna 735312200

RETAINING RING SGA 20

$3.49

$

Usually ships in 3-10 days

0

506 55 51-01

Husqvarna 506555101

SLIDE BEARING-BUSCHING

Note: DIA. 18MM

$

$

Not available

506 50 48-03

Husqvarna 506504803

WASHER

$6.99

$

Usually ships in 3-10 days

0

506 50 34-01

Husqvarna 506503401

WHEEL,REAR
(Superseded to 535420001)

$

$

Not available

721 43 49-01

Husqvarna 721434901

Pin

$

$

Not available

506 55 51-01

Husqvarna 506555101

SLIDE BEARING-BUSCHING

Note: UP TO 1992 DIA. 18MM

$

$

Not available

506 55 48-01

Husqvarna 506554801

Rear Wheel

$

$

Not available

506 55 50-01

Husqvarna 506555001

TIRE

$

$

Not available

506 55 49-01

Husqvarna 506554901

FRONT WHEEL

Note: UP TO 1992 DIA.18MM

$

$

Not available

506 59 62-01

Husqvarna 506596201

SPACER

$3.49

$

In Stock, only 2 left!

0

506 55 49-02

Husqvarna 506554902

FRONTWHEEL

Note: 1993- DIA.20MM

$

$

Not available
