R-86 (130-511C190) - White Outdoor 30" Rear-Engine Riding Mower (1990) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

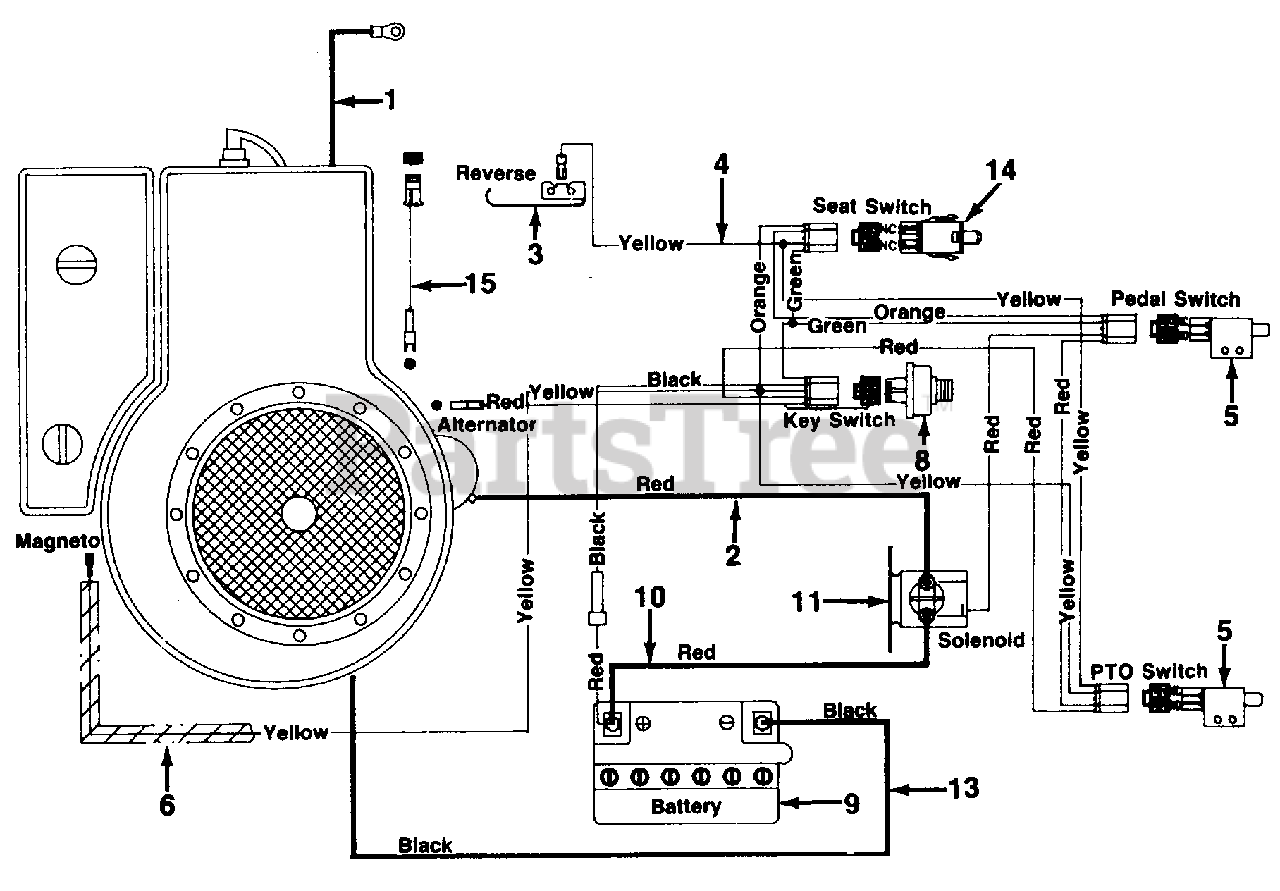

Electrical System Parts Diagram

  • Title

1

White Outdoor 725-0977

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

2

White Outdoor 725-0424

Elec. Wire

$

$

Not available

3

White Outdoor 732-0615

Spring Switch-Reverse

$

$

Not available

4

White Outdoor 725-1431

Wire Harness

$

$

Not available

5

White Outdoor 725-3169

Safety Switch
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

6

White Outdoor 731-0757

Convoluted Tubing 29" Lg.

$3.49

$

Usually ships in 3-6 days

0

8

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 16

0

9

White Outdoor 725-0514A

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

10

White Outdoor 725-0927

Elec. Wire Red w/Boot

$

$

Not available

11

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-0975

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

14

White Outdoor 725-1441

Seat Switch

$

$

Not available

15

White Outdoor 725-1437

Adaptor Harness

$

$

Not available
