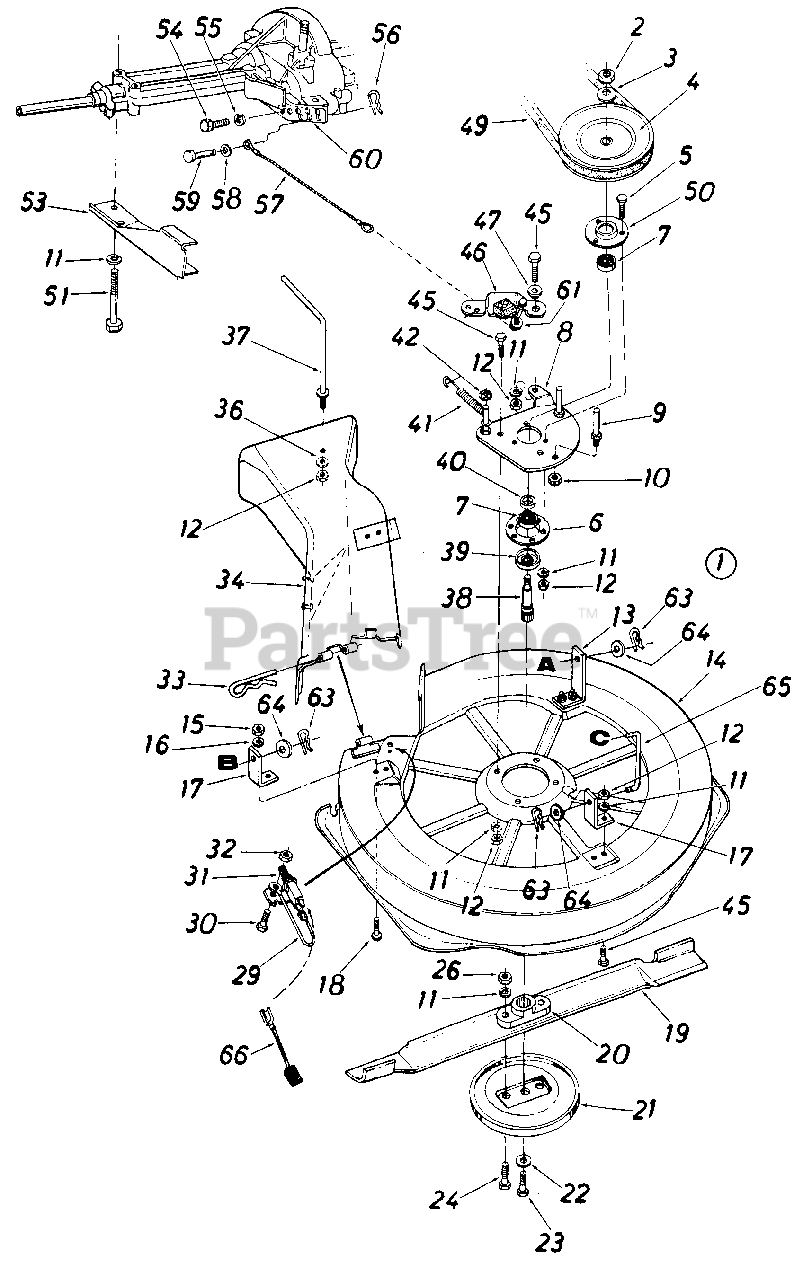

R-86 (135-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1985) > Parts Diagrams (7) > 30" Rear Discharge Mowing Deck Assembly

  • Title
15900

1

30" R.D. Deck Ass'y. Comp.

Part# 15900

Note: (Service Only)

OEM Warranty Repair Part for White Outdoor

Not available

712-0318

2

Hex Jam Nut 5/8-18 Thd.

Part# 712-0318

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.63

736-0317

3

Bell-Wash. .630" I.D. x 1.25"

Part# 736-0317

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.60

756-0430

4

5/8 V-Pulley .75" I.D. x .7"

Part# 756-0430

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $70.81

710-0259

5

Hex Sems 5/16-18 x .62" Lg.*

Part# 710-0259

OEM Warranty Repair Part for White Outdoor

Not available

08253

6

Brg. Housing 1.85" I.D.

Part# 08253 (Superseded to 08253B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.27

741-0919

7

Ball Brg.....787" I.D.

Part# 741-0919 (Superseded to 941-0919B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.12

15919

8

Spindle Mtg. Plate

Part# 15919

Not available

711-0640

9

Stud 3/8-16 x 2.75" Lg.

Part# 711-0640 (Superseded to 911-0640)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.58

712-0342

10

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.27

736-0119

11

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0158

12

Hex L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.27

15916

13

Hanger Brkt. 2.92"

Part# 15916

Not available

15906

14

30" R.D. Deck Ass'y.

Part# 15906

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

No Longer Available DECK ASSY-30IN RD

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

15

UNKNOWN

Part#

Not available

16

UNKNOWN

Part#

Not available

15915

17

Hanger Brkt. 1.92"

Part# 15915

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

18

Truss Mach. Scr. 5/16-18 x .75" Lg.*

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

742-0280

19

30" High Lift Blade

Part# 742-0280

OEM Warranty Repair Part for White Outdoor

Not available

748-0300

20

Blade Adapter

Part# 748-0300

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.25

07919

21

Scalp Plate

Part# 07919 (Superseded to 07919B-0637)

Note: (Optional)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

22

L-Wash. 3/8" I.D.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

710-0152

23

Hex Bolt 3/8-24 x 1.0*

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-0888

24

Hex Bolt 5/16-24 x 1.0" Lg.

Part# 710-0888

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0123

26

Hex Nut 5/16-24 Thd.*

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

725-0765

29

Electrical Wire

Part# 725-0765

OEM Warranty Repair Part for White Outdoor

Not available

710-0289

30

Hex Bolt 1/4-20 x .50" Lg.*

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

725-0269

31

Safety Switch

Part# 725-0269 (Superseded to 925-0269)

OEM Warranty Repair Part for White Outdoor

Not available

712-0287

32

Hex Nut 1/4-20 Thd.*

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

714-0155

33

Internal Cotter Pin

Part# 714-0155 (Superseded to 714-0174)

OEM Warranty Repair Part for White Outdoor

Not available

731-0715

34

R.D. Chute Deflector

Part# 731-0715 (Superseded to 96094A)

OEM Warranty Repair Part for White Outdoor

Not available

736-0271

36

L-Wash. .32" I.D. x .62" O.D.

Part# 736-0271 (Superseded to 936-0271)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

747-0474

37

90ø Rod 5/16-18 Thd.

Part# 747-0474

OEM Warranty Repair Part for White Outdoor

Not available

738-0577

38

Blade Spindle 5.20

Part# 738-0577

OEM Warranty Repair Part for White Outdoor

Not available

13703

39

Bearing Shield

Part# 13703

OEM Warranty Repair Part for White Outdoor

Not available

750-0456

40

Spacer

Part# 750-0456 (Superseded to 950-0456)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

732-0157

41

Extension Spring

Part# 732-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.64

726-0201

42

Push Speed Nut

Part# 726-0201

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

710-0118

45

Hex Bolt 5/16-18 x .75"*

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

16054

46

Blade Brake Brkt. Ass'y.

Part# 16054 (Superseded to 96053)

OEM Warranty Repair Part for White Outdoor

Not available

748-0234

47

Shoulder Spacer .500" Dia.

Part# 748-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

754-0264

49

"V"-Belt 1/2" x 52" Lg.

Part# 754-0264 (Superseded to 954-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $43.92

15296

50

Open Brg. Housing

Part# 15296 (Superseded to 15296A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.28

710-0176

51

Hex Bolt 5/16-18 x 2.75"

Part# 710-0176

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

15625

53

Lower Outside Belt Guard

Part# 15625

OEM Warranty Repair Part for White Outdoor

Not available

710-0258

54

Hex Bolt 1/4-20 x .62" Lg.*

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0329

55

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

714-0104

56

Int. Cot. Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

727-0290

57

Brake Cable 11.75" Lg.

Part# 727-0290 (Superseded to 727-0290A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.79

736-0142

58

Fl-Wash. .281" I.D. x .50"

Part# 736-0142 (Superseded to 936-0142)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

711-0701

59

Clevis Pin 1/4" Dia.

Part# 711-0701 (Superseded to 911-0701)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

15626

60

Lower Inside Belt Guard

Part# 15626 (Superseded to 15626B-0637)

OEM Warranty Repair Part for White Outdoor

Not available

726-0106

61

Cap Speed Nut 1/4" Rod

Part# 726-0106 (Superseded to 926-0106)

OEM Warranty Repair Part for White Outdoor

Not available

714-0145

63

Int. Cotter Pin 1/2" Dia.

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Not available

736-0160

64

Fl-Wash. .531" I.D. x .930"

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

747-0428

65

Deck Link 3.9" Lg.

Part# 747-0428

Not available

725-1037

66

Wire Lead

Part# 725-1037

OEM Warranty Repair Part for White Outdoor

Not available
