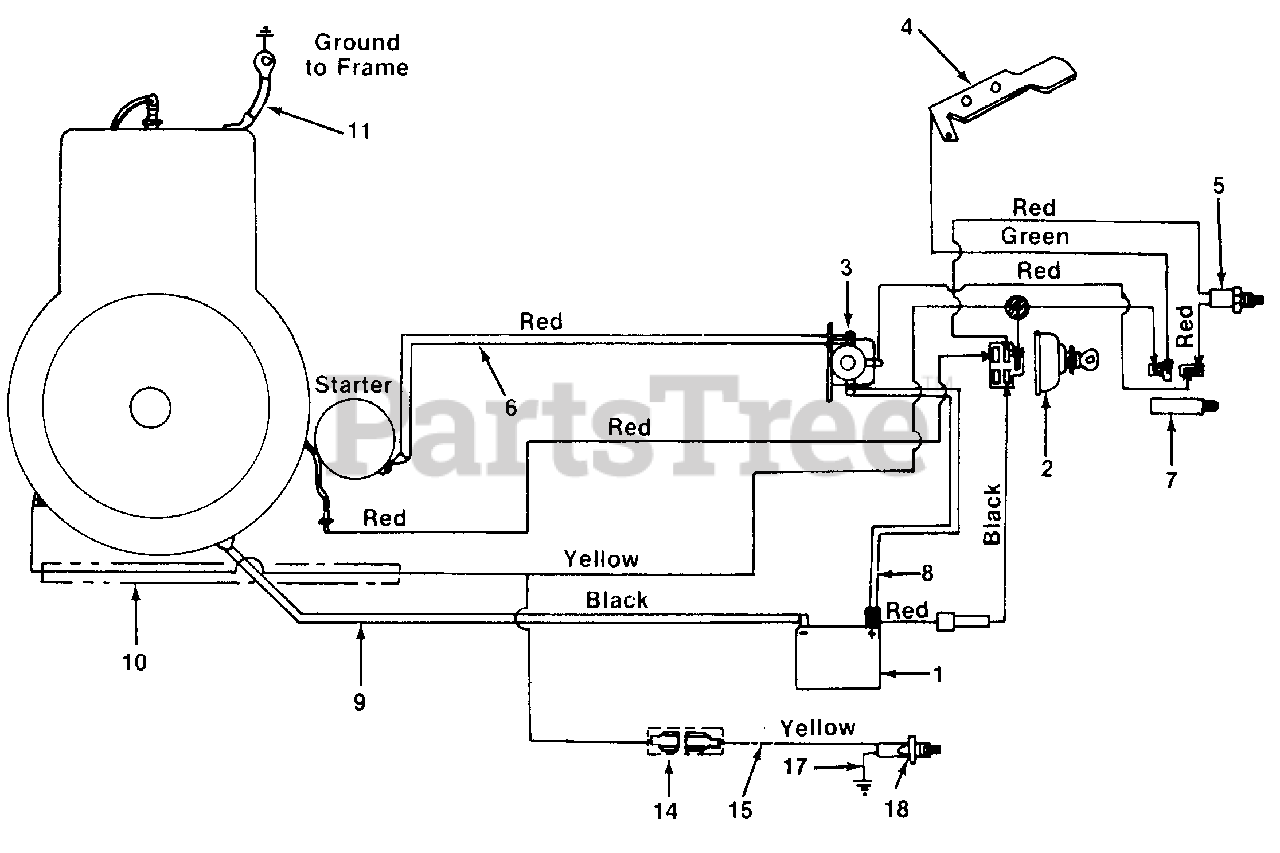

R-86 (135-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1985) > Parts Diagrams (7) > Electrical System (Electric Start)

  • Title
725-0514

1

Battery

Part# 725-0514 (Superseded to 753-0607)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $139.08

725-0267

2

Key Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.44

725-0771

3

Solenoid

Part# 725-0771 (Superseded to 925-0771)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.86

732-0420

4

Spring Switch

Part# 732-0420

Note: (Reverse)

OEM Warranty Repair Part for White Outdoor

Not available

725-0268

5

Safety Switch

Part# 725-0268 (Superseded to 925-0268)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.11

725-0424

6

Electric Wire

Part# 725-0424

OEM Warranty Repair Part for White Outdoor

Not available

725-0819

7

Safety Switch

Part# 725-0819 (Superseded to 925-0819A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.57

725-0927

8

Electric Wire 13.5" Lg.

Part# 725-0927

OEM Warranty Repair Part for White Outdoor

Not available

725-0975

9

Ground Wire

Part# 725-0975

OEM Warranty Repair Part for White Outdoor

Not available

731-0652

10

Convoluted Conduit 24" Lg.

Part# 731-0652

Not available

725-0977

11

Ground Wire

Part# 725-0977

OEM Warranty Repair Part for White Outdoor

Not available

725-0269

Safety Switch

Part# 725-0269 (Superseded to 925-0269)

Note: (Deck)

OEM Warranty Repair Part for White Outdoor

Not available

725-0765

Ground Wire

Part# 725-0765

OEM Warranty Repair Part for White Outdoor

Not available

725-0717

14

Tab Receptacle

Part# 725-0717

Not available

725-1037

15

Wire Lead 12" Lg.

Part# 725-1037

OEM Warranty Repair Part for White Outdoor

Not available

725-1001

Safety Switch

Part# 725-1001

OEM Warranty Repair Part for White Outdoor

Not available

725-0765

17

Ground Wire

Part# 725-0765

OEM Warranty Repair Part for White Outdoor

Not available

725-0269

18

Safety Switch

Part# 725-0269 (Superseded to 925-0269)

OEM Warranty Repair Part for White Outdoor

Not available

725-0861

Wire Harness

Part# 725-0861

Not available
