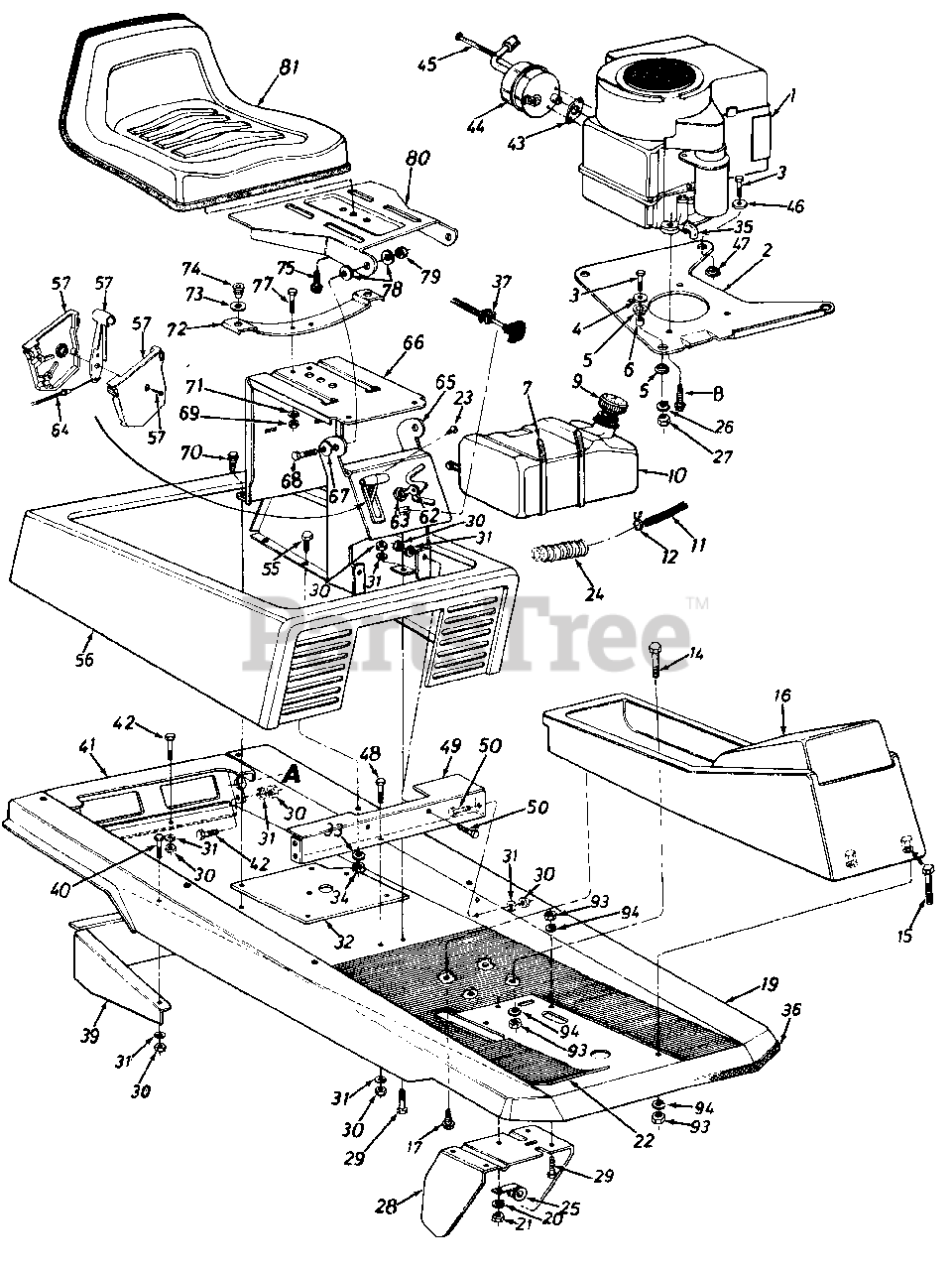

R-86 (138-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1988)

30" Rear-Engine Riding Mower

R-86 (138-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1988) > Parts Diagrams (7) > Body Assembly

  • Title

1

Engine

Part#

Not available

15572

2

Engine Mounting Plate

Part# 15572 (Superseded to 15572A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $108.48

710-0158

3

Hex Bolt 5/16-24 x 1.25" Lg.

Part# 710-0158 (Superseded to 710-0672)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

736-0231

4

Fl-Wash. .330" I.D. x 1.125 O.D.

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

722-0153

5

Engine Mounting Grommet

Part# 722-0153 (Superseded to 922-0153)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.21

750-0539

6

Spacer .315" I.D. x .50" O.D. x.520" Lg.

Part# 750-0539 (Superseded to 950-0539)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.52

726-0209

7

Cable Tie 30.6 Lg.

Part# 726-0209 (Superseded to 726-0230)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.74

710-0502

8

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.

Part# 710-0502 (Superseded to 710-0502A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.24

723-0155

9

Gas Gauge

Part# 723-0155

OEM Warranty Repair Part for White Outdoor

Not available

751-0368

10

Fuel Tank

Part# 751-0368 (Superseded to 751-0368C)

OEM Warranty Repair Part for White Outdoor

Not available

751-0173

11

Gas Line

Part# 751-0173 (Superseded to 751-10349-16)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.05

726-0207

12

Hose Clamp-.406" Dia.

Part# 726-0207

OEM Warranty Repair Part for White Outdoor

Not available

710-0380

14

Hex Bolt 5/16-18 x 1.75" Lg.

Part# 710-0380 (Superseded to 710-3180)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.62

710-0116

15

Hex Bolt 5/16-18 x 2.0" Lg.

Part# 710-0116 (Superseded to 710-3103)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

731-0712

16

Front Console

Part# 731-0712

OEM Warranty Repair Part for White Outdoor

Not available

710-0906

17

Plastite Scr. 5/8 x 1.25"

Part# 710-0906 (Superseded to 710-0323)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

15978

19

Main Frame

Part# 15978

OEM Warranty Repair Part for MTD

Not available

736-0119

20

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

21

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

735-0220

22

Floor Mat

Part# 735-0220

OEM Warranty Repair Part for White Outdoor

Not available

710-0779

23

Truss Mach. AB-Tap Scr. #10 x .50" Lg.

Part# 710-0779 (Superseded to 710-0779A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

731-0757

24

Convoluted Conduit

Part# 731-0757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.58

726-0175

25

Clamp

Part# 726-0175

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

26

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0123

27

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

15562

28

Clutch-Brake Podal Ass'y.

Part# 15562

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

29

Hex Bolt 5/16-18 x .75" Lg

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-0267

30

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0119

31

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

15588

32

Mounting Brkt. Variable Speed Pulley

Part# 15588

Not available

736-0329

33

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0287

34

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

737-0125

35

90ø Elbow Male To Female

Part# 737-0125

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.26

731-0511

36

Trim Strip 18" Lg.

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.61

746-0614

37

Choke Control

Part# 746-0614 (Superseded to 746-0614A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.83

15553

39

Transaxle suppon Ass'y.

Part# 15553

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

40

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

15571

41

Rear Frame Panel

Part# 15571

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

No Longer Available PANEL-FRAME-RR

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

No Longer Available PANEL-FRAME-RR

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available PANEL-FRAME-RR

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

710-0621

42

Hex Bolt 5/16-18 x .50" Lg.

Part# 710-0621 (Superseded to 710-3039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.21

721-0207

43

Exhaust Gasket

Part# 721-0207 (Superseded to BS-692237)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.69

751-0412

44

Muffler Ass'y.

Part# 751-0412

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.32

751-0425

Spark Arrester For 8 H.P. Muffler

Part# 751-0425 (Superseded to 951-0643)

OEM Warranty Repair Part for White Outdoor

Not available

738-0635

45

Shld. Bolt

Part# 738-0635 (Superseded to 938-0635)

OEM Warranty Repair Part for White Outdoor

Not available

736-0343

46

Fl-Wash. .33" I.D. x 1.25" O.D.

Part# 736-0343

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0392

47

Flange Wash. 32n l.D. x .75" O.D.

Part# 736-0392

OEM Warranty Repair Part for White Outdoor

Not available

48

UNKNOWN

Part#

Not available

15604

49

Seat Support & Frame Brkt.

Part# 15604

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

50

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0289

55

Hex Bolt 1/4-20 x .50" Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.34

15975

56

Engine Cover Ass'y.

Part# 15975

OEM Warranty Repair Part for White Outdoor

Not available

831-0823

57

Throttle Control Box Ass'y.

Part# 831-0823 (Superseded to 831-0823A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.59

725-0201

62

Ignition Key

Part# 725-0201 (Superseded to 925-0201)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.71

725-0267

63

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.44

746-0503

64

Throttle Control Wire

Part# 746-0503 (Superseded to 946-0503)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.11

16483

65

Front Seat Bracket

Part# 16483

OEM Warranty Repair Part for White Outdoor

Not available

15606

66

Rear Seat Bracket

Part# 15606

OEM Warranty Repair Part for White Outdoor

Not available

736-0242

67

Bell-Wash. .345" I.D. x .88" O.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0118

68

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-0267

69

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-0601

70

Hex Selt-Tap Scr. 5/16-18 x .75" Lg.

Part# 710-0601 (Superseded to 710-1260A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

736-0329

71

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

732-0431

72

Seat Spring

Part# 732-0431

Not available

736-0160

73

Fl-Wash. .531" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

731-0555

74

Grommet

Part# 731-0555 (Superseded to 731-0555A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0623

75

Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4" Lg.

Part# 710-0623

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

710-0118

77

Hex Bolt 1/4-20 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

736-0242

78

Bell-Wash. .345" I.D. x .88" O.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-0158

79

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

15607

80

Seat Pivot Bracket

Part# 15607 (Superseded to 783-0039A)

OEM Warranty Repair Part for White Outdoor

Not available

757-0343

81

Seat Ass'y. Comp.

Part# 757-0343

Not available

712-0267

93

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0119

94

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15
