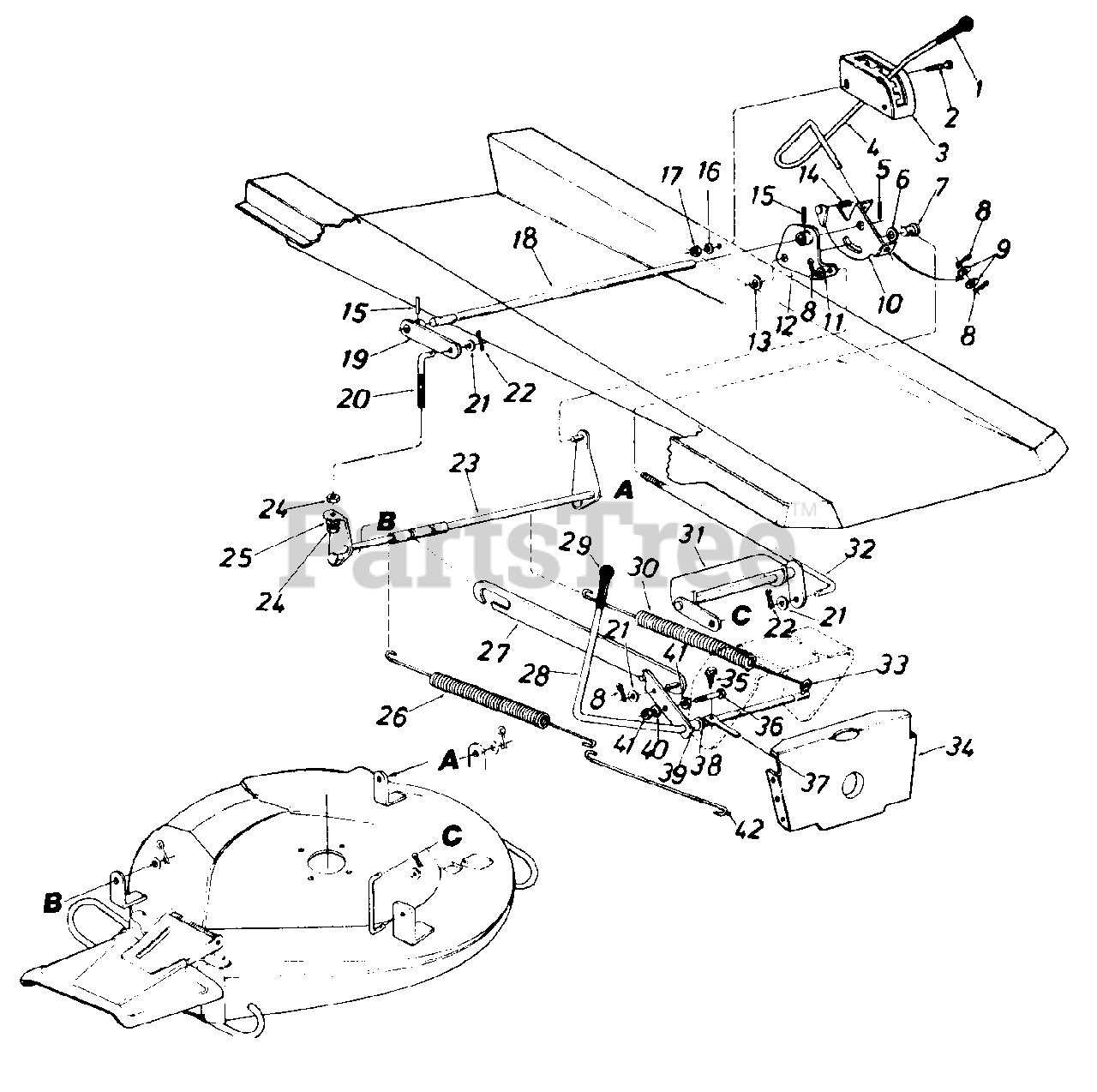

R-86 (138-514-190) - White Outdoor 30" Rear-Engine Riding Mower (1988) > Parts Diagrams (7) > Deck Mounting

  • Title
720-0143

1

Grip

Part# 720-0143

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

2

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

16397

3

Deck Index Bracket

Part# 16397

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-DECK INDEX

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

747-0651

4

Deck Lift Handle

Part# 747-0651

OEM Warranty Repair Part for White Outdoor

Not available

715-0134

5

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.

Part# 715-0134 (Superseded to 915-0134)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.97

736-0187

6

Fl-Wash. .385" I.D. x .87" O.D.

Part# 736-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

711-0749

7

Adj. Ferrule Deck Lift Handle

Part# 711-0749

OEM Warranty Repair Part for White Outdoor

Not available

714-0115

8

Cotter Pin 1/8" Dia. x 1.00" Lg.

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

736-0160

9

Fl-Wash. .531" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

16402

10

Deck Lift Handle Retainer Ass'y.

Part# 16402

OEM Warranty Repair Part for White Outdoor

Not available

736-0300

11

Fl-Wash. .385" I.D. x .87" O.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

15578

12

Deck Lift Brkt. Ass'y.-L.H.

Part# 15578

OEM Warranty Repair Part for White Outdoor

Not available

736-0162

13

Fl-Wash. .635" I.D. x 1.04" O.D.

Part# 736-0162

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

732-0430

14

Compression Spring .50" Dia. x 1.0" Lg.

Part# 732-0430

OEM Warranty Repair Part for White Outdoor

Not available

715-0114

15

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.

Part# 715-0114 (Superseded to 915-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.37

736-0119

16

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

17

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

738-0550

18

Rear Hgt. Adj. Shaft

Part# 738-0550

OEM Warranty Repair Part for White Outdoor

Not available

15609

19

Deck Lift Brkt. Ass'y.-R.H.

Part# 15609

OEM Warranty Repair Part for White Outdoor

Not available

710-0866

20

Deck Adj. Scr. 3/8-16 Thd.

Part# 710-0866

OEM Warranty Repair Part for White Outdoor

Not available

736-0300

21

Fl-Wash. .385" I.D. x .87" O.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

714-0145

22

Intern. Cotter Pin 1/2" Dia.

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

15600

23

Deck Link Ass'y.-Rear

Part# 15600

Not available

712-0798

24

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0169

25

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

732-0540

26

Extension Spring .73" O.D. x 1 3.84" Lg.

Part# 732-0540

OEM Warranty Repair Part for White Outdoor

Not available

15644

27

Deck Drive Control Bracket

Part# 15644 (Superseded to 15644A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

15568

28

Blade Engagement Lever Ass'y.

Part# 15568 (Superseded to 15568A)

OEM Warranty Repair Part for White Outdoor

Not available

720-0143

29

Grip

Part# 720-0143

OEM Warranty Repair Part for White Outdoor

Not available

732-0540

30

Extension Spring .73" O.D. x 13.89" Lg.

Part# 732-0540

OEM Warranty Repair Part for White Outdoor

Not available

15573

31

Deck Lift Ass'y.-Front

Part# 15573

OEM Warranty Repair Part for White Outdoor

Not available

747-0426

32

Deck Lift Connecting Rod

Part# 747-0426

OEM Warranty Repair Part for White Outdoor

Not available

711-0753

33

Clevis Pin Special .250" Dia.

Part# 711-0753

OEM Warranty Repair Part for White Outdoor

Not available

15613

34

Pivot Bar Bracket

Part# 15613

OEM Warranty Repair Part for White Outdoor

Not available

710-0642

35

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

Part# 710-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

710-0805

36

Hex Bolt 5/16-18 x 1.50" Lg. (Grade 5)

Part# 710-0805 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

732-0435

37

Switch Actuator

Part# 732-0435

OEM Warranty Repair Part for White Outdoor

Not available

736-0160

38

Fl-Wash. .531" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

750-0515

39

Spacer .511" I.D. x .70" O.D. x.38" Lg.

Part# 750-0515

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

736-0119

40

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

41

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

732-0451

42

Spring Hook

Part# 732-0451 (Superseded to 732-0451B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.84
