R1-12K802 (312-8) - Toro Garden Tractor (1990) ELECTRICAL SYSTEM Parts Diagram
Garden Tractor

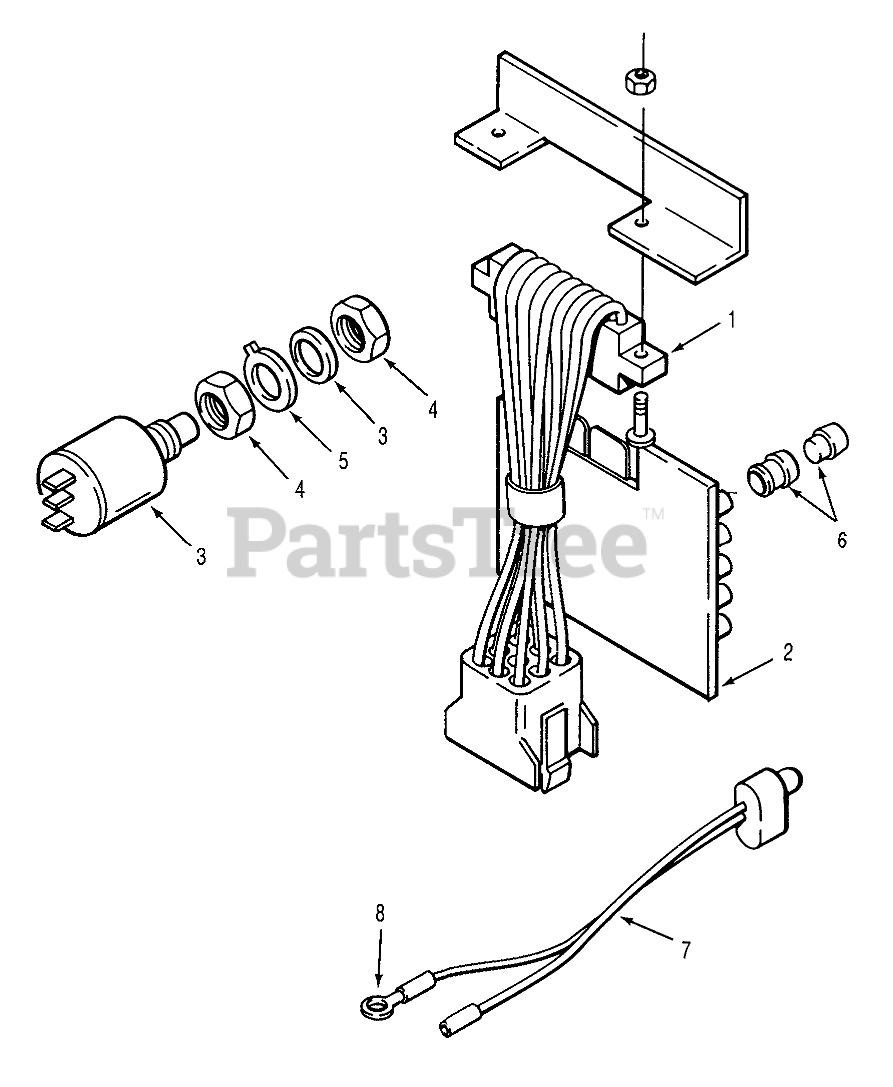

ELECTRICAL SYSTEM Parts Diagram
Toro 116723
P.C.-BOARD HARNESS
$212.99
$
Usually ships in 3-6 days
Toro 117377
P.C. BOARD HARNESS
$
$
Not available
Toro 115207
P.C. BRD & SCHEMATIC
$
$
Not available
Toro 116796
SWITCH-PUSH BUTTON
$84.99
$
Usually ships in 3-6 days
Toro 111359
NUT F/W 116796
$3.99
$
Usually ships in 3-6 days
$0.99
$
Usually ships in 3-6 days
Toro 111343
ASSY LENS & BUSHING
$
$
Not available
Toro 117185
LIGHT-INDICATOR
$
$
Not available
Toro 111351
ASSY WIRE INDICATOR
$
$
Not available
$
$
Not available
