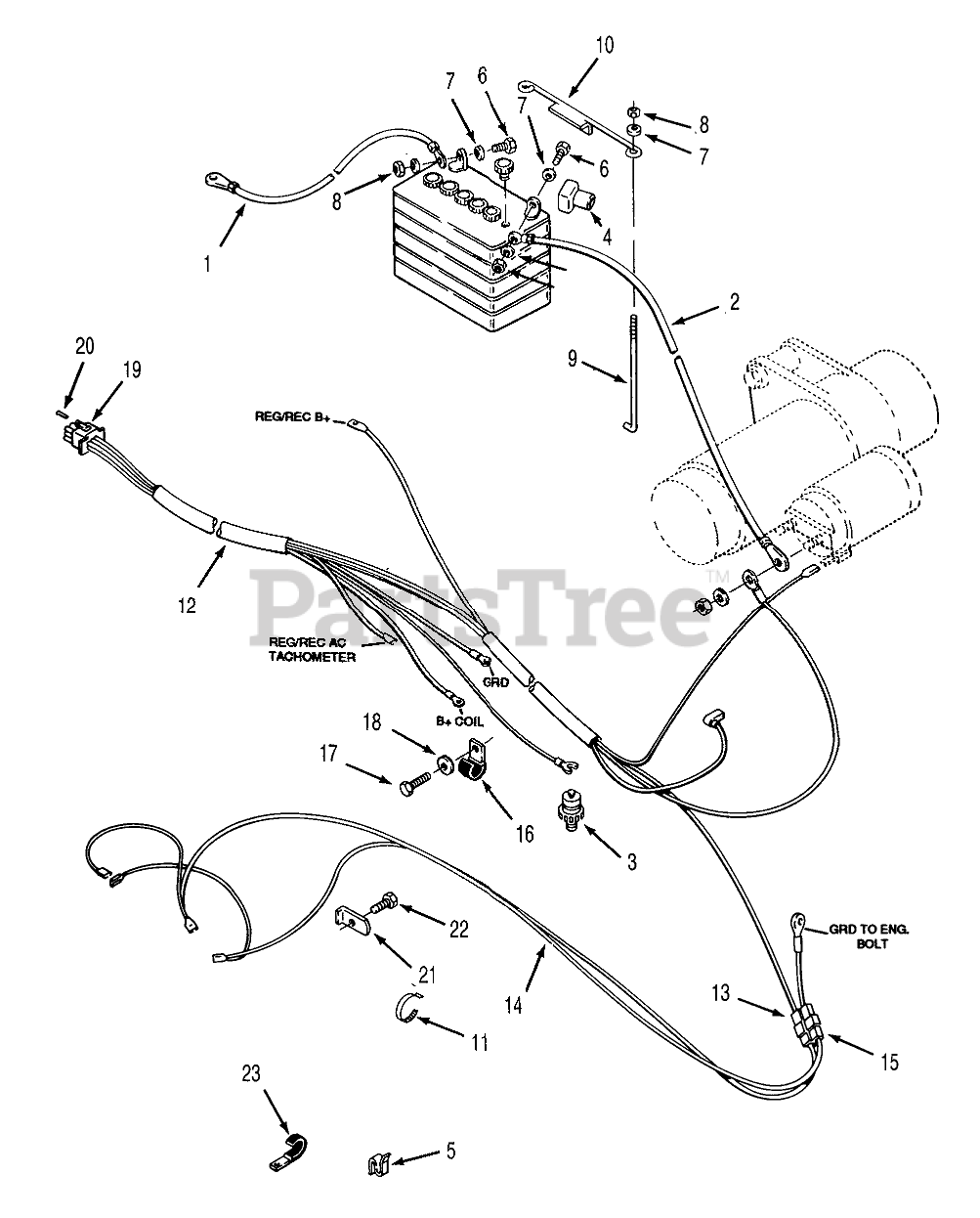

R1-12K802 (312-8) - Toro Garden Tractor (1990) ELECTRICAL SYSTEM-416 ONLY Parts Diagram

Garden Tractor

ELECTRICAL SYSTEM-416 ONLY Parts Diagram

  • Title

1

Toro 114210

ASS'Y-WIRE

$51.99

$

Usually ships in 3-6 days

0

2

Toro 113825

SHIELD-SD DISCHARGE

$125.99

$

Usually ships in 3-6 days

0

3

Toro NN10273

LOW OIL PRESSURE

$

$

Not available

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 3023

SPEED CLIP

$

$

Not available

6

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

8

Toro 116497

Nut
(Superseded to 32103-22)

$2.99

$

In Stock, only 2 left!

0

9

Toro 113996

Hook-Battery Hold Down

$

$

Currently unavailable

10

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

11

Toro 100571

PLASTIC TIE

$

$

Not available

12

Toro NN10294

Engine Wiring Harness

$

$

Not available

13

Toro NN10278

MALE CONNECTOR

$

$

Not available

14

Toro 114052

HARNESS-HEADLIGHT

$

$

Not available

15

Toro 109357

CONNECTOR BODY

$

$

Not available

16

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

17

Toro NN10399

Bolt
(Superseded to 82-1540)

$

$

Not available

18

Toro NN10425

LOCKWASHER 1/4 IT

$

$

Not available

19

Toro NN10281

CONNECTOR CAP

$

$

Not available

20

Toro NN10279

CONTACT SOCKET

$7.99

$

In Stock, only 2 left!

0

21

Toro 109459

LOCK-HEADLIGHT

$6.99

$

In Stock, Qty 7

0

22

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

23

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0
