R1-12K802 (312-8) - Toro Garden Tractor (1990) KOHLER PISTON RINGS Parts Diagram

Garden Tractor

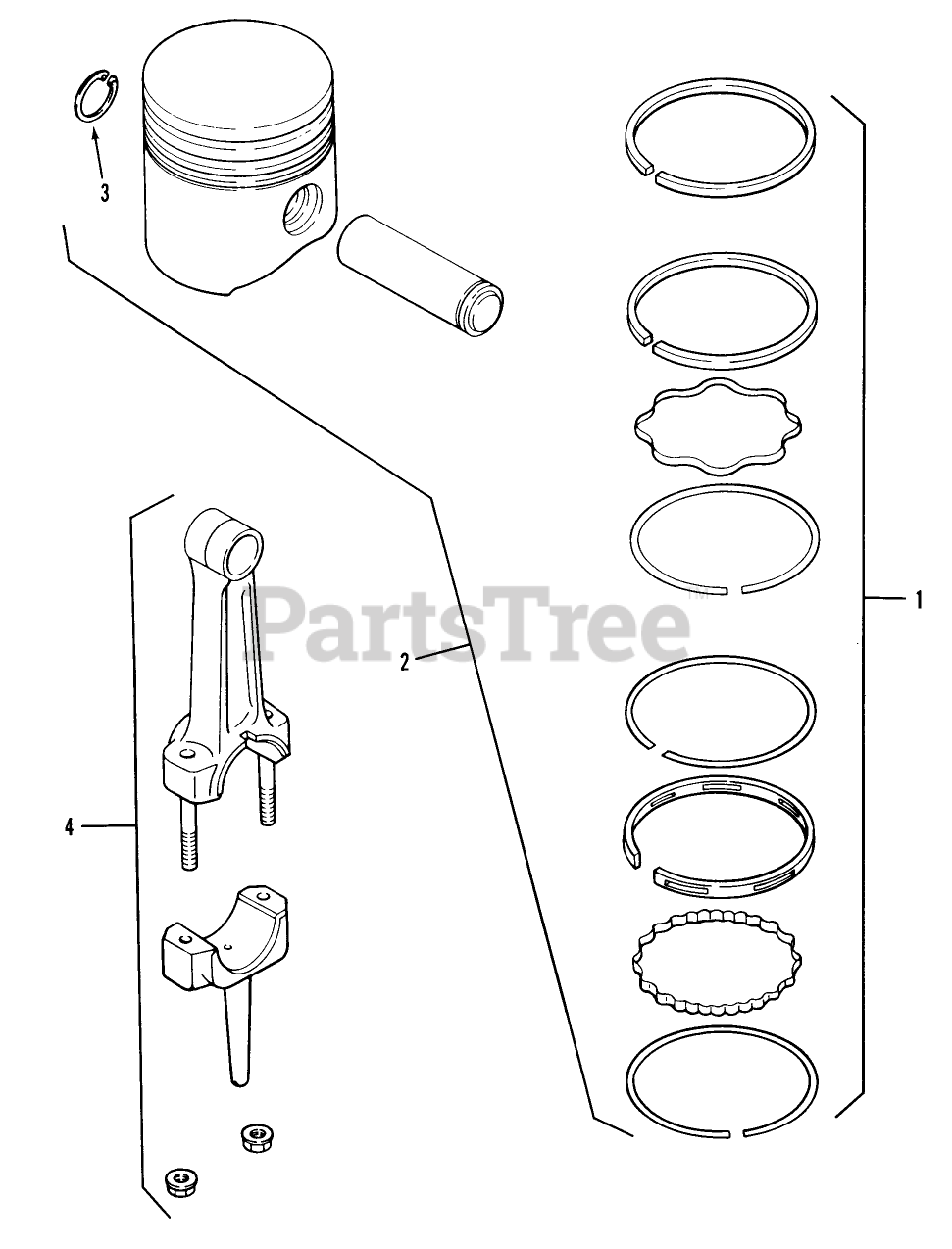

KOHLER PISTON RINGS Parts Diagram

  • Title

1

Toro 235287

Ring set-Std. 003 (Svc.)

$

$

Currently unavailable

Toro 235288

Ring Set-.010 (Service)

$

$

Currently unavailable

Toro 235289

Ring Set-.020 (Service)

$

$

Currently unavailable

Toro 235290

Ring Set-.030 (Service)

$

$

Currently unavailable

Toro 47 108 01

Ring Set-(Std. .003)

$

$

Currently unavailable

Toro 47 108 02

Ring Set-(.010)

$

$

Currently unavailable

Toro 47 108 03

Ring Set-(.020)

$

$

Currently unavailable

Toro 47 108 04

Ring Set-(.030)

$

$

Currently unavailable

2

Toro 47 874 01

Piston w/Ring Set Std. 310

$

$

Currently unavailable

Toro 47 874 02

Piston w/Ring Set .003 310

$

$

Currently unavailable

Toro 47 874 03

Piston w/Ring Set .010 310

$

$

Currently unavailable

Toro 47 874 04

Piston w/Ring Set .020 310

$

$

Currently unavailable

Toro 47 874 05

Piston w/Ring Set .030 310

$

$

Currently unavailable

Toro 47 874 16

Piston w/Ring Set (Std.)

$

$

Currently unavailable

Toro 47 874 17

Piston w/Ring Set (.003)

$

$

Currently unavailable

Toro 47 874 18

Piston w/Ring Set (.010)

$

$

Currently unavailable

Toro 47 874 19

Piston w/Ring Set (.020)

$

$

Currently unavailable

Toro 47 874 20

Piston w/Ring Set (.030)

$

$

Currently unavailable

3

Toro 47 018 01

Retainer-Piston Pin

$

$

Currently unavailable

4

Toro 45 067 13

Connecting Rod Std. 310

$

$

Currently unavailable

Toro 45 067 14

Connecting Rod .010 310

$

$

Currently unavailable

Toro 47 067 24

Connecting Rod Std. 312

$

$

Currently unavailable

Toro 47 067 25

Connecting Rod .010 312

$

$

Currently unavailable
