R1-12K802 (312-8) - Toro Garden Tractor (1990) MECHANICAL TRANSMISSION-8-SPEED Parts Diagram

Garden Tractor

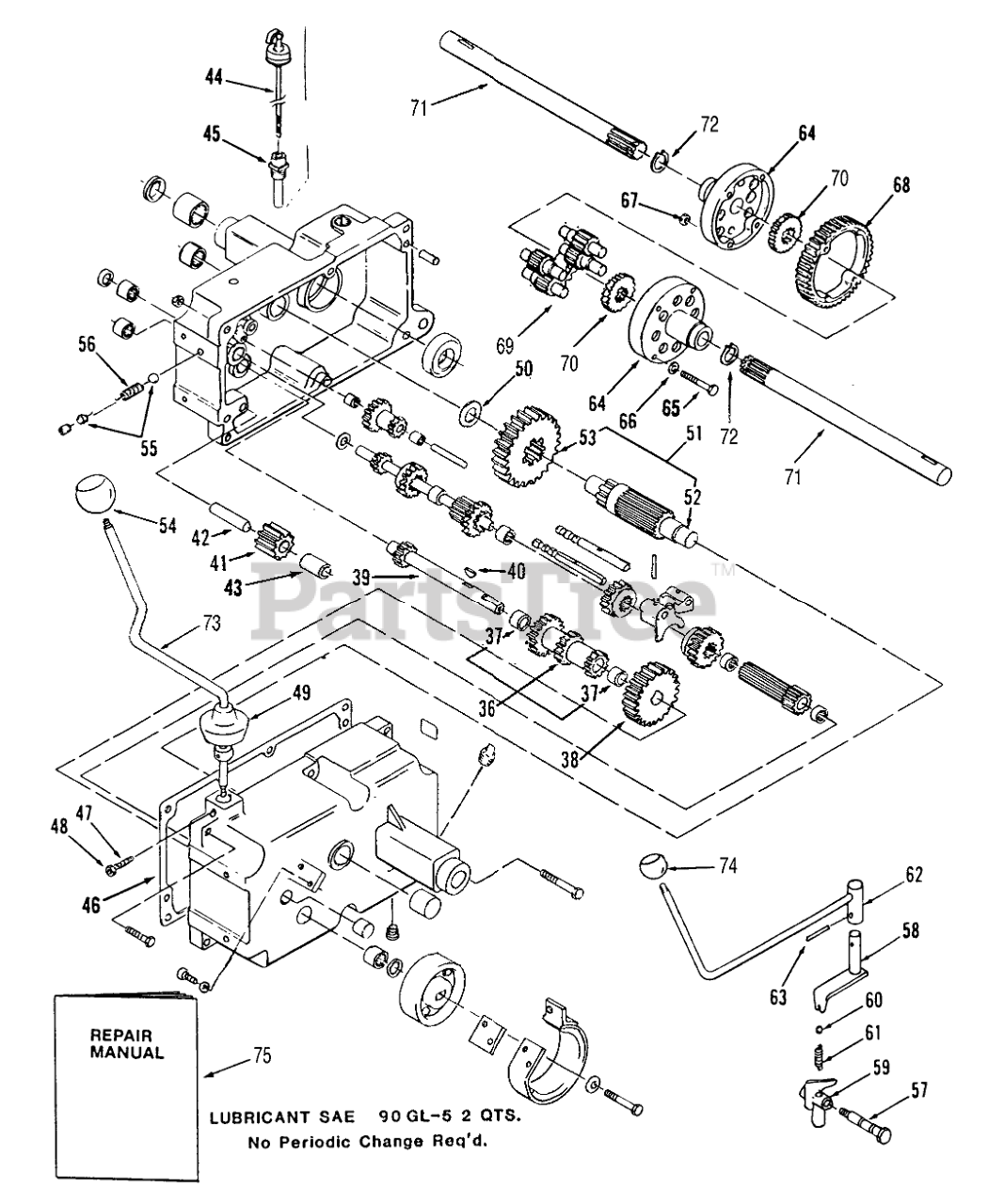

MECHANICAL TRANSMISSION-8-SPEED Parts Diagram

  • Title

36

Toro 7269

GEAR-CLUSTER

$

$

Not available

37

Toro 1504

BUSHING-BRONZE

$53.99

$

Usually ships in 3-6 days

0

38

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

39

Toro 9840

Cluster Shaft
(Superseded to 704156)

$

$

Not available

40

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

41

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$175.99

$

Usually ships in 3-6 days

0

42

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

43

Toro 1516

BUSHING

$

$

Not available

44

Toro 106447

ASSY-DIPSTICK

$

$

Not available

45

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

46

Toro 3912

GASKET-TRANSMISSION

$10.99

$

In Stock, only 4 left!

0

47

Toro 1239

SETSCREW

$11.99

$

In Stock, Qty 6

0

48

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

49

Toro 3577

COVER-DUST

$

$

Not available

50

Toro 9547

WASHER-THRUST

$6.99

$

Usually ships in 3-6 days

0

51

Toro 102974

GEAR ASM

$

$

Not available

52

Toro 101625

PINION SHAFT

$

$

Not available

53

Toro 101626

GEAR

$

$

Not available

54

Toro 108758

KNOB

$16.99

$

In Stock, only 4 left!

0

55

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

56

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, Qty 16

0

57

Toro 7213

BOLT-DETENT

$58.99

$

Usually ships in 3-6 days

0

58

Toro 7214

SHIFT ASM

$49.99

$

Usually ships in 3-6 days

0

59

Toro 116636

SHIFT FORK ASM
(Superseded to 116636-03)

$

$

Not available

60

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

61

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, Qty 16

0

62

Toro 110727

SHIFT ROD ASM

$

$

Not available

63

Toro 933184

PIN-SPIROL

$1.99

$

In Stock, Qty 6

0

64

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

65

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

66

Toro 107374

WASHER

$0.99

$

In Stock, Qty 14

0

67

Toro 108881

NUT

$6.49

$

In Stock, Qty 12

0

68

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1281.99

$

Usually ships in 3-6 days

0

69

Toro 101623

GEAR-PINION, 11T

$122.99

$

Usually ships in 3-6 days

0

70

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

71

Toro 105875

AXLE-REAR

$435.99

$

Usually ships in 3-6 days

0

72

Toro 105876

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

73

Toro 110725

ASM-Rod
(Superseded to 95-7684)

$212.99

$

In Stock, only 1 left!

0

74

Toro 1001

Knob

$

$

Not available

75

Toro A-1392

MANUAL

$

$

Not available
