R1-12K804 (312-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) Front Axle And Steering Parts Diagram

Garden Tractor

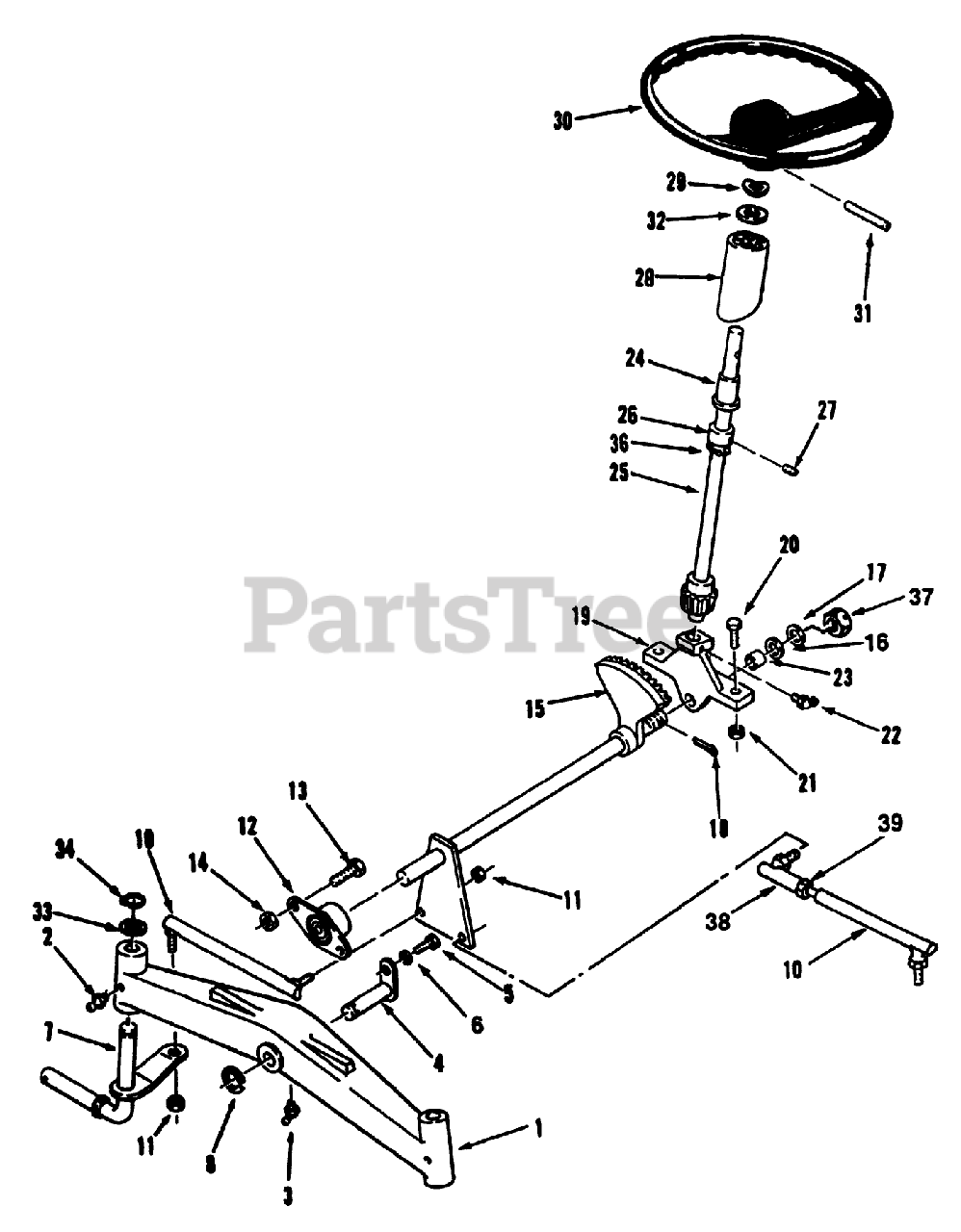

Front Axle And Steering Parts Diagram

  • Title

1

Toro 5638

See Supercession: 5638-01
(Superseded to 5638-01)

$

$

Not available

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 1 left!

0

4

Toro 6216

PIN AND PLATE ASM

$54.99

$

Usually ships in 3-6 days

0

5

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

7

Toro 113380

See Supercession: 113380-01
(Superseded to 113380-01)

$80.99

$

In Stock, only 2 left!

0

Toro 113379

See Supercession: 113379-01
(Superseded to 113379-01)

Note: Not illustrated

$80.99

$

In Stock, only 2 left!

0

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

10

Toro 78-2900

ASS'Y-TIE ROD*

$74.99

$

In Stock, only 2 left!

0

11

Toro 915693

See Supercession: 9156934
(Superseded to 9156934)

$1.99

$

In Stock, Qty 5

0

12

Toro 6472

BEARING-FLANGED

$27.99

$

In Stock, only 2 left!

0

13

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 78-2880

See Supercession: 78-2880-03
(Superseded to 78-2880-03)

$278.99

$

Usually ships in 3-6 days

0

16

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

17

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

18

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

19

Toro 88-2710

See Supercession: 88-2710-03
(Superseded to 88-2710-03)

$

$

Not available

20

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

22

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 1 left!

0

23

Toro 6397

BEARING-BRONZE

$27.99

$

In Stock, only 3 left!

0

24

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 16

0

25

Toro 106177

See Supercession: 92-4987
(Superseded to 92-4987)

$

$

Not available

26

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

27

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

28

Toro 113443

TUBE-STEERING

$

$

Not available

29

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 3 left!

0

30

Toro 117337

See Supercession: 76-1420
(Superseded to 76-1420)

$

$

Not available

31

Toro 32121-111

PIN-ROLL

$3.49

$

In Stock, Qty 20+

0

32

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

33

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

34

Toro 104822

See Supercession: 32120-93
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

36

Toro 111646

RING-RETAINING

$1.99

$

In Stock, only 4 left!

0

37

Toro 915035

See Supercession: 32136-5
(Superseded to 32136-5)

$8.99

$

In Stock, only 2 left!

0

38

Toro 78-2920

See Supercession: 94-7572
(Superseded to 94-7572)

$36.99

$

In Stock, only 2 left!

0

39

Toro 915002

See Supercession: 9150026
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

Toro 78-0370

DISCONTINUED

Note: Not illustrated

$

$

Not available
