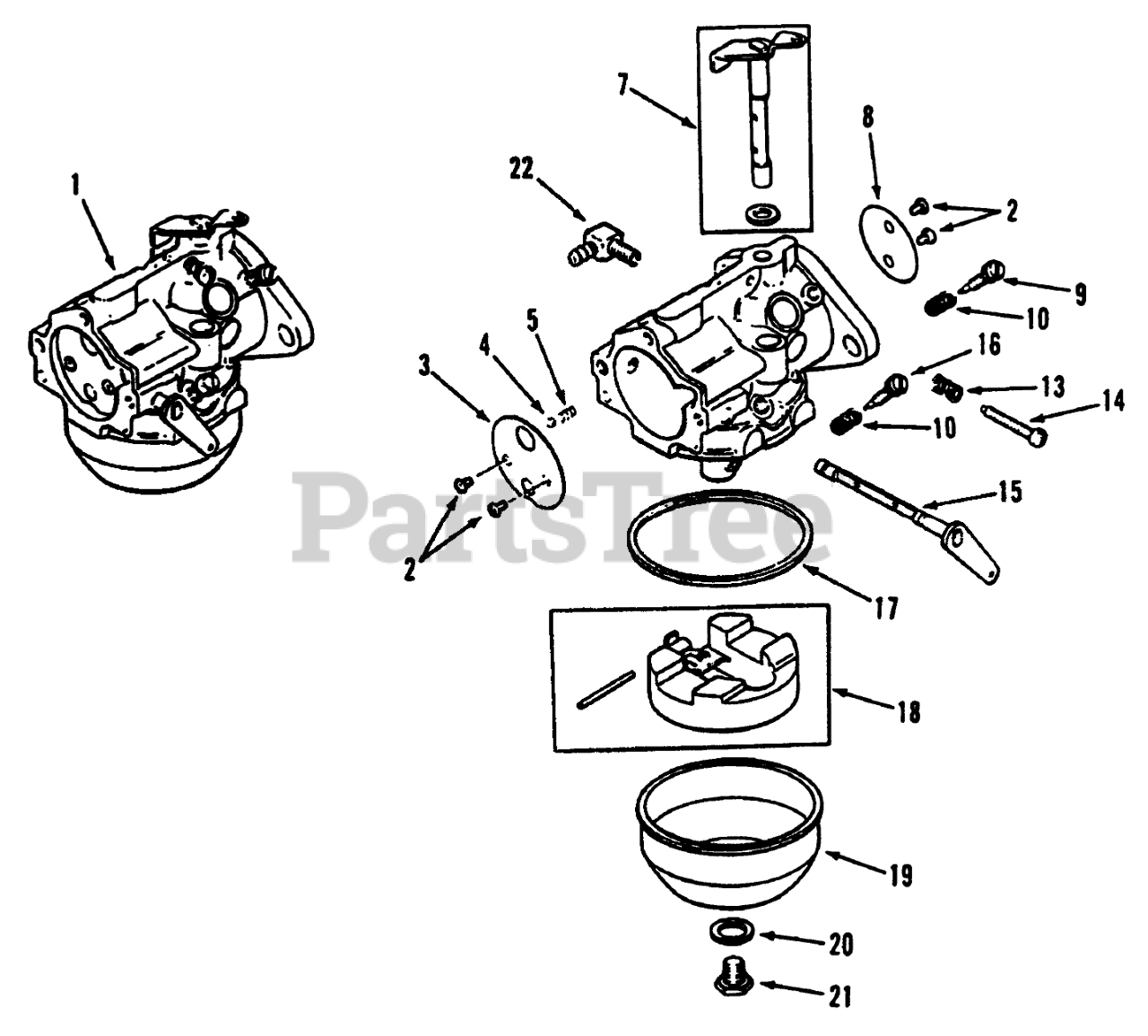

R1-12K804 (312-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) KOHLER CARBURETORS Parts Diagram

Garden Tractor

KOHLER CARBURETORS Parts Diagram

  • Title
1

Toro KH10672

Carburetor Assembly (Includes 5 thru 8)

$

$

Not available

2

Toro KH10110

Screw

$

$

Not available

3

Toro KH10708

Choke Plate

$

$

Not available

4

$

$

Not available

5

Toro KH10113

Spring

$

$

Not available

7

Toro KH10707

Shaft w/Lever & Seal

$

$

Not available

8

Toro KH10121

Plate-Throttle

$

$

Not available

9

Toro KH10132

Idle Fuel Adj. Needle

$

$

Not available

10

Toro KH10112

Spacer

$

$

Not available

13

Toro KH10114

Adj. Spring

$

$

Not available

14

Toro KH10109

Idle Speed Adj. Screw

$

$

Not available

15

Toro KH10702

Choke Shaft

$

$

Not available

16

Toro 25-3603

Main-Needle

$

$

Currently unavailable

17

Toro KH10094

Gasket

$

$

Not available

18

Toro KH10663

Float Kit

$

$

Not available

19

Toro KH10117

Bowl-Fuel

$

$

Not available

20

Toro KH10093

Gasket

$

$

Not available

21

Toro KH10116

Screw

$

$

Not available

22

Connector 90deg.

$

$

Not available

Toro KH10696

Kit-Carburetor Repair (Includes

Note: Not illustrated

$

$

Not available

Toro KH10009

Gasket-Flange

$

$

Not available

Toro KH10146

Gasket

$

$

Not available

Toro KH10733

Gasket

$

$

Not available

Toro KH10093

Gasket

$

$

Not available

Toro KH10094

Gasket

$

$

Not available

Toro KH10677

Gasket-Air Cleaner

$

$

Not available

Toro KH10697

Gasket

$

$

Not available

Toro KH10358

Choke & Throttle Repair Kit

Note: Not illustrated

$

$

Not available

Toro KH10710

Kit-High Altitude Jet (Includes

Note: Not illustrated

$

$

Not available

Toro KH10682

Bushing

$

$

Not available

Toro KH10709

Jet-Main

$

$

Not available

Toro KH10674

Kit-Carburetor w/Linkage (Includes

Note: Not illustrated

$

$

Not available

Toro KH10693

Kit-Adjustable Jet w/Linkage (Includes

Note: Not illustrated

$

$

Not available

Toro KH10701

Carburetor Linkage

$

$

Not available

Toro KH10686

Bushing

$

$

Not available

Toro KH10274

Gasket

$

$

Not available
