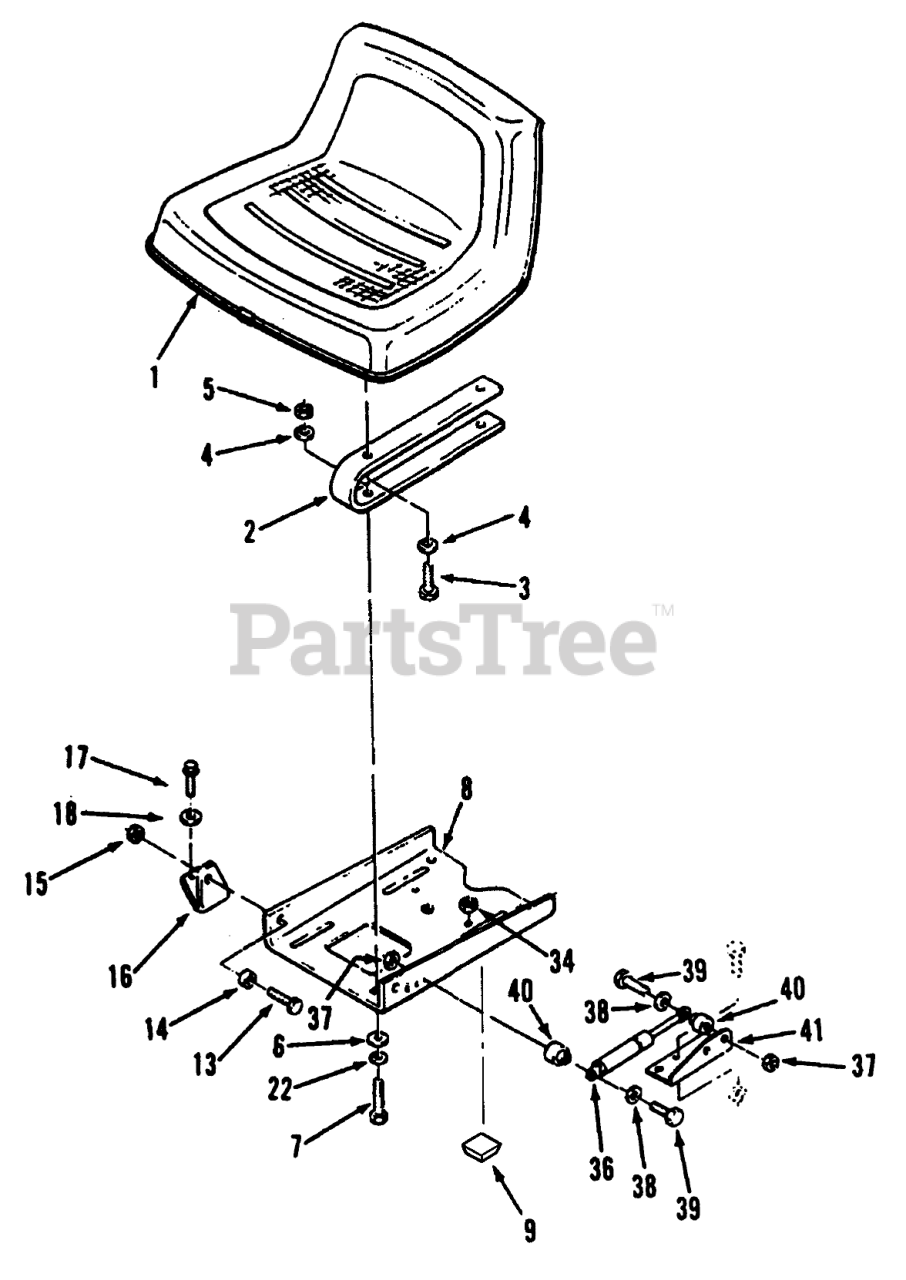

R1-12K804 (312-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) SEAT Parts Diagram

Garden Tractor

SEAT Parts Diagram

  • Title

1

Toro 79-0670

SEAT V-510

$

$

Not available

2

Toro 110920

Seat Spring
(Superseded to 110920-03)

$189.99

$

Usually ships in 3-6 days

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 78-2990

Plate-SeatPivot
(Superseded to 78-2990-03)

$

$

Not available

9

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 112744

Bracket-Pivot RH

$36.99

$

Usually ships in 3-6 days

0

Toro 112745

BRACKET-PIVOT L.H B

Note: Not illustrated

$36.99

$

Usually ships in 3-6 days

0

17

Toro 913464

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 114343

GAS SPRING

$113.99

$

In Stock, only 2 left!

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

41

Toro 114345

BRACKET-CYLINDER R

$

$

Not available
