R1-16O802 (316-8) - Toro Garden Tractor (1990) ELECTRICAL SYSTEM-416 ONLY Parts Diagram

Garden Tractor

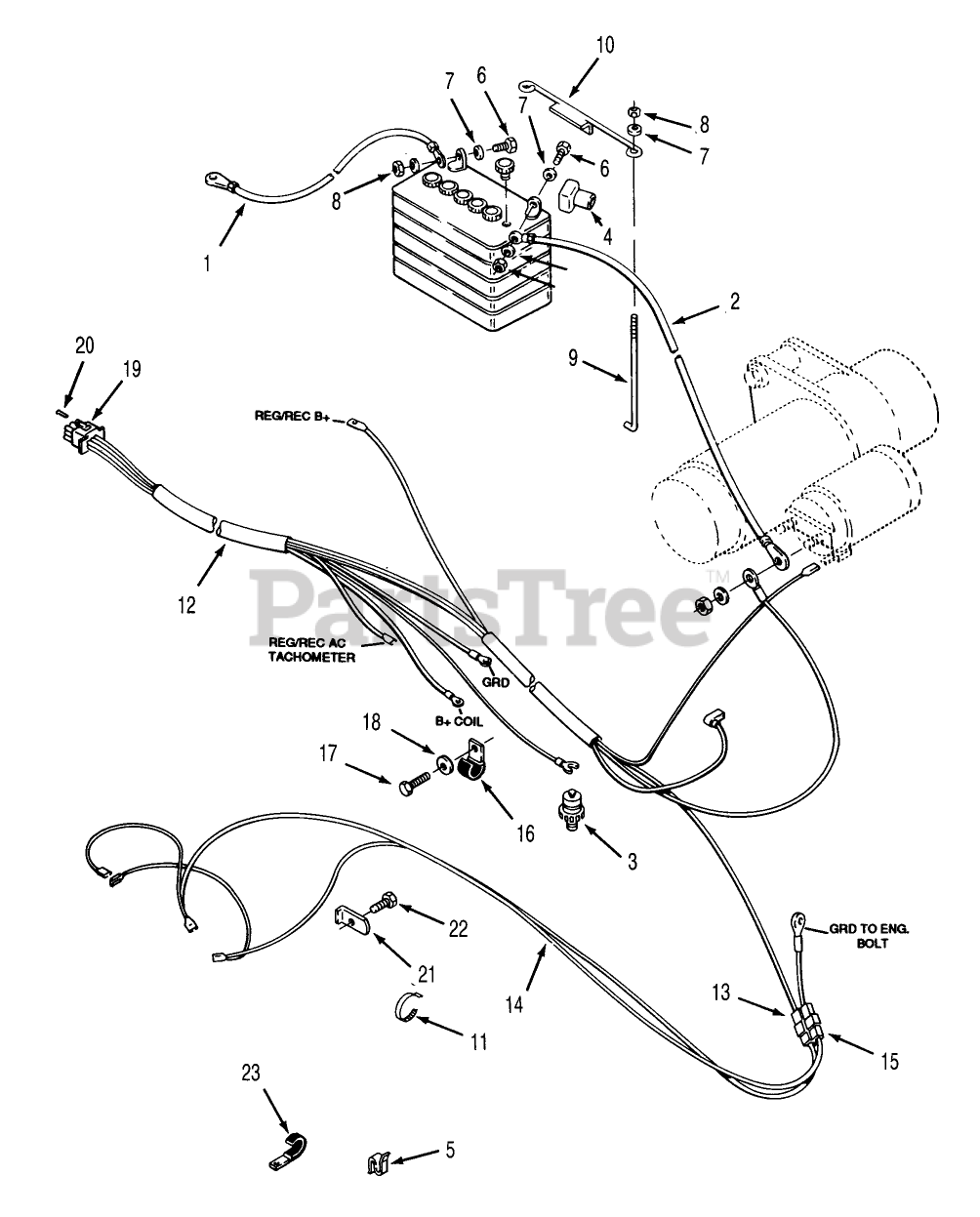

ELECTRICAL SYSTEM-416 ONLY Parts Diagram

  • Title

1

Toro 114210

ASS'Y-WIRE

$

$

Not available

2

Toro 113825

SHIELD-SD DISCHARGE

$146.99

$

Usually ships in 3-6 days

0

3

Toro NN10273

DISCONTINUED

$

$

Not available

4

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

5

Toro 3023

DISCONTINUED

$

$

Not available

6

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

8

Toro 116497

See Supercession: 32103-22
(Superseded to 32103-22)

$2.99

$

In Stock, Qty 10

0

9

Toro 113996

Hook-Battery Hold Down

$

$

Currently unavailable

10

Toro 113010

HOLDDOWN-BATTERY

$28.99

$

In Stock, only 3 left!

0

11

Toro 100571

DISCONTINUED

$

$

Not available

12

Toro NN10294

DISCONTINUED

$

$

Not available

13

Toro NN10278

MALE CONNECTOR

$

$

Not available

14

Toro 114052

DISCONTINUED

$

$

Not available

15

Toro 109357

CONNECTOR BODY

$

$

Not available

16

Toro NN10348

See Supercession: 71-6220
(Superseded to 71-6220)

$

$

Not available

17

Toro NN10399

See Supercession: 82-1540
(Superseded to 82-1540)

$

$

Not available

18

Toro NN10425

DISCONTINUED

$

$

Not available

19

Toro NN10281

DISCONTINUED

$

$

Not available

20

Toro NN10279

CONTACT SOCKET

$18.99

$

In Stock, only 2 left!

0

21

Toro 109459

LOCK-HEADLIGHT

$8.49

$

In Stock, Qty 6

0

22

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

23

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0
