R1-16O802 (316-8) - Toro Garden Tractor (1990) KOHLER CARBURETORS Parts Diagram

Garden Tractor

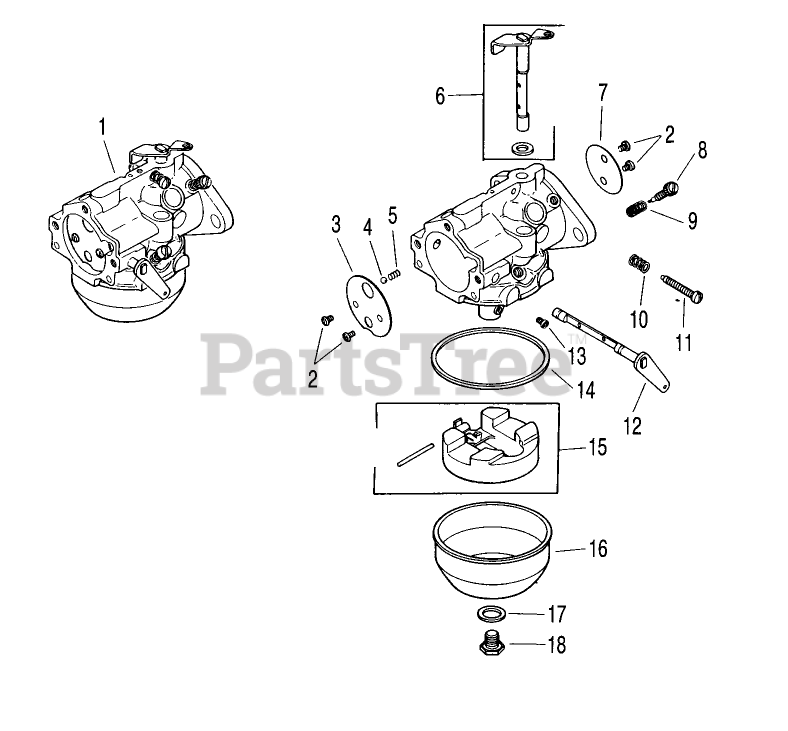

KOHLER CARBURETORS Parts Diagram

  • Title

1

Toro 47 053 65

Carburetor Assembly (Includes 5 thru 8) 310,312

$

$

Currently unavailable

2

Toro 25_086_27

Screw-Throttle Plate (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

3

Toro 47 146 08

Plate-Choke

$

$

Currently unavailable

4

Toro 25 194 01

Ball-Choke Friction

$

$

Currently unavailable

5

Toro 2508903

Spring-Choke Friction

$

$

Currently unavailable

6

Toro 47 144 21

Shaft-W/Seal

$

$

Currently unavailable

7

Toro 25 146 02

Plate-Throttle

$

$

Currently unavailable

8

Toro 25 368 01

Needle-Idle Fuel Adj.

$

$

Currently unavailable

9

Toro 25 089 02

Spring

$

$

Currently unavailable

10

Toro 2508904

Spring-Idle Speed

$

$

Currently unavailable

11

Toro 2508626

Screw-Idle Speed Adj.

$

$

Currently unavailable

12

Toro 47 090 38

Lever-Choke

$

$

Currently unavailable

13

Toro 47 337 02

Main Jet

$

$

Currently unavailable

14

Toro 2504104

Gasket

$

$

Currently unavailable

15

Toro 25 757 09

Kit-Float

$

$

Currently unavailable

16

Toro 25 104 01

Bowl-Fuel

$

$

Currently unavailable

17

Toro 25 041 03

Gasket-Retainer Screw

$

$

Currently unavailable

18

Toro 2510005

Screw-Bowl Retainer

$

$

Currently unavailable

Toro 25 757 11

Carburetor Repair Kit (Includes)

Note: Not illustrated

$

$

Currently unavailable

Toro 210223

Gasket-Carburetor
(Superseded to 740685)

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Not available

Toro 271030

Gasket

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 275341

Gasket-Air Horn

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 041 03

Gasket-Retainer Screw

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 2504104

Gasket

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 139 09

Plug Welch

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 139 10

Plug Welch

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 462 02

Inlet Valve

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 462 04

Inlet Valve Assembly

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 41 041 11

Air Cleaner Gasket

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 45 041 07

Gasket-Air Cleaner

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 47 049 01

Gasket-Carburetor

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 757 05

Kit-Choke/Throttle Repair

Note: Not illustrated

$

$

Currently unavailable

Toro 47 755 36

High Altitude Jet Kit (Includes Bushing KH10682, 47 158 07; Main Jet KH10709, 47 337 02)

Note: Not illustrated

$

$

Currently unavailable

Toro 47 853 09

Carburetor W/Linkage Kit (Includes Bushing KH10682, 47 158 07; Main Jet KH10709, 47 337 02)

Note: Not illustrated

$

$

Currently unavailable

Toro 47 853 20

Adjustable Jet W/Linkage Kit (Includes) Carburetor Linkage KH10701, 47 079 10 Bushing Linkage Natural KH10682, 47 158 07 Bushing Linkage Black KH10686, 25 158 09 Air Cleaner Gasket KH10697, 45 041 07 Carburetor Assembly KH10693, 47 053 86 Gasket KH10

Note: Not illustrated

$

$

Currently unavailable
