R1-16O802 (316-8) - Toro Garden Tractor (1990) MECHANICAL TRANSMISSION-8-SPEED (CONTINUED) Parts Diagram

Garden Tractor

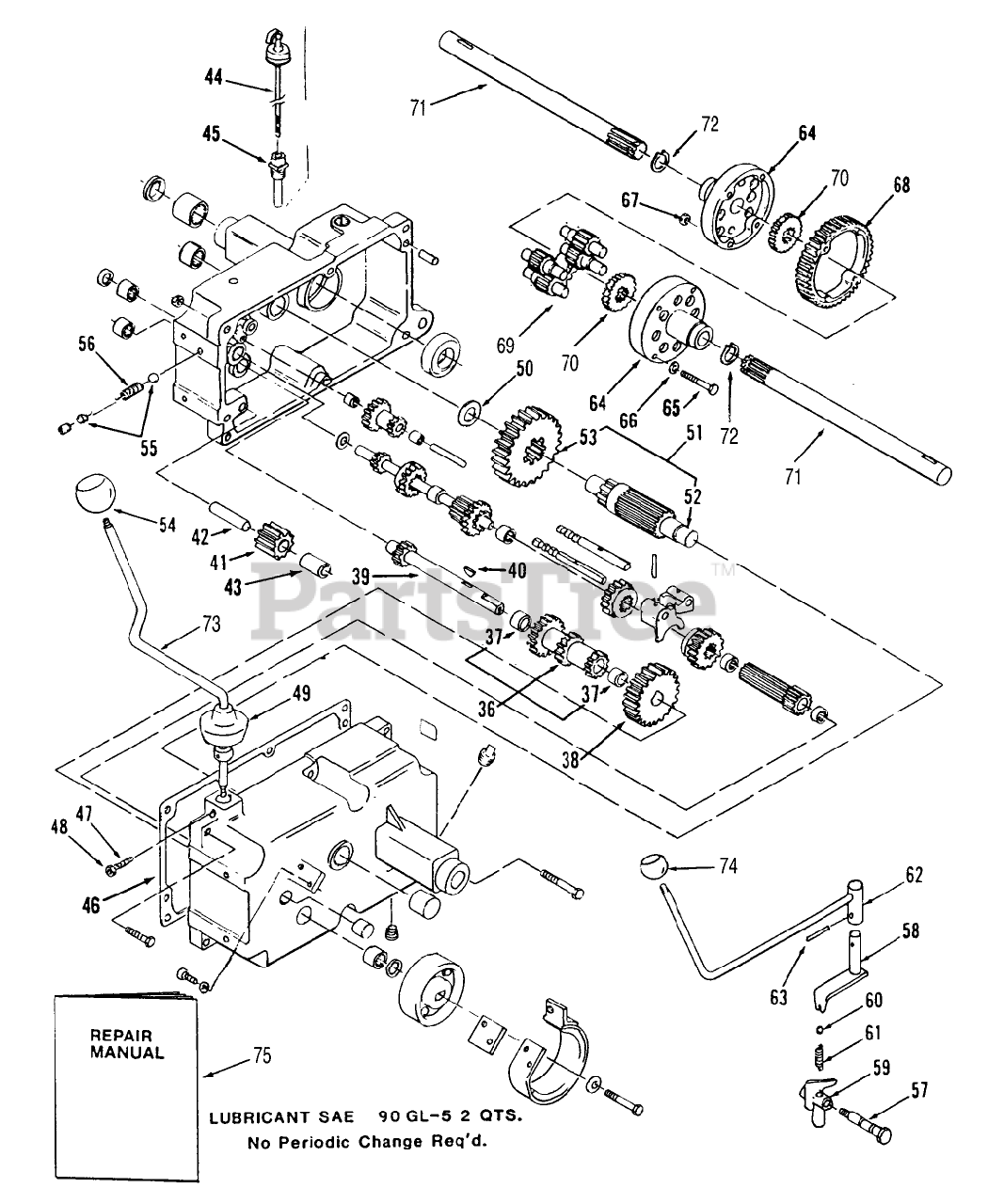

MECHANICAL TRANSMISSION-8-SPEED (CONTINUED) Parts Diagram

  • Title

36

Toro 7269

GEAR-CLUSTER

$

$

Not available

37

Toro 1504

BUSHING-BRONZE

$53.99

$

Usually ships in 3-6 days

0

38

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

39

Toro 9840

See Supercession: 704156
(Superseded to 704156)

$

$

Not available

40

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

41

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$177.99

$

Usually ships in 3-6 days

0

42

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

43

Toro 1516

BUSHING

$

$

Not available

44

Toro 106447

DISCONTINUED

$

$

Not available

45

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

46

Toro 3912

GASKET-TRANSMISSION

$11.99

$

In Stock, only 3 left!

0

47

Toro 1239

SETSCREW

$11.99

$

In Stock, Qty 6

0

48

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

49

Toro 3577

COVER-DUST

$

$

Not available

50

Toro 9547

WASHER-THRUST

$7.49

$

Usually ships in 3-6 days

0

51

Toro 102974

GEAR ASM

$

$

Not available

52

Toro 101625

PINION SHAFT

$

$

Not available

53

Toro 101626

DISCONTINUED

$

$

Not available

54

Toro 108758

KNOB

$16.99

$

In Stock, only 4 left!

0

55

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

56

Toro 106030

SPRING-SHIFT STOP

$3.49

$

In Stock, Qty 13

0

57

Toro 7213

BOLT-DETENT

$58.99

$

Usually ships in 3-6 days

0

58

Toro 7214

SHIFT ASM

$50.99

$

Usually ships in 3-6 days

0

59

Toro 116636

See Supercession: 116636-03
(Superseded to 116636-03)

$

$

Not available

60

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

61

Toro 106030

SPRING-SHIFT STOP

$3.49

$

In Stock, Qty 13

0

62

Toro 110727

SHIFT ROD ASM

$

$

Not available

63

Toro 933184

PIN-SPIROL

$1.99

$

In Stock, Qty 6

0

64

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

65

Toro 911423

See Supercession: 1-800805
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

66

Toro 107374

WASHER

$0.99

$

In Stock, Qty 14

0

67

Toro 108881

NUT-HEX

$6.49

$

In Stock, Qty 12

0

68

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1409.99

$

Usually ships in 3-6 days

0

69

Toro 101623

GEAR-PINION, 11T

$122.99

$

Usually ships in 3-6 days

0

70

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

71

Toro 105875

AXLE-REAR

$457.99

$

Usually ships in 3-6 days

0

72

Toro 105876

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

73

Toro 110725

See Supercession: 95-7684
(Superseded to 95-7684)

$218.99

$

In Stock, only 1 left!

0

74

Toro 1001

DUP PART SEE $BOOK

$

$

Not available

75

Toro A-1392

MANUAL

$

$

Not available
