R1-16O802 (316-8) - Toro Garden Tractor (1990) PTO CLUTCH AND CONTROL Parts Diagram

Garden Tractor

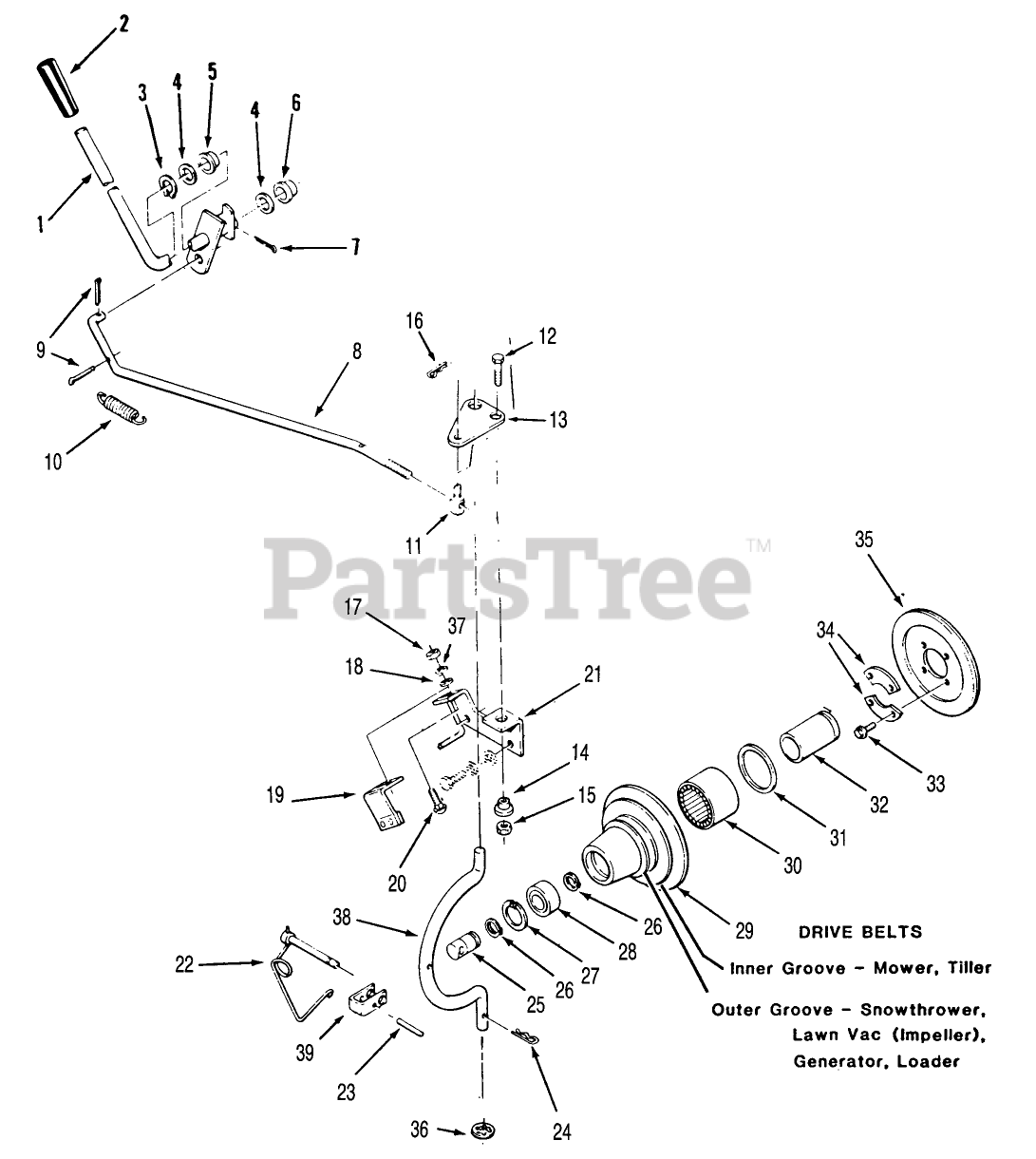

PTO CLUTCH AND CONTROL Parts Diagram

  • Title

1

Toro 111234

ASSY PTO CLUTCH LEVE

$

$

Not available

2

Toro 9038

GRIP

$7.99

$

In Stock, only 3 left!

0

3

Toro 106649

See Supercession: 32151-11
(Superseded to 32151-11)

$12.99

$

In Stock, Qty 5

0

4

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 1 left!

0

5

Toro 5666

BUSHING-NYLINER

$16.99

$

In Stock, only 2 left!

0

6

Toro 5983

BUSHING-NYLINER

$7.49

$

In Stock, Qty 7

0

7

Toro 932016

See Supercession: 3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

8

Toro 111052

ROD-PTO CLUTCH

$90.99

$

Usually ships in 3-6 days

0

9

Toro 932016

See Supercession: 3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

10

Toro 103125

SPRING

$10.99

$

In Stock, only 3 left!

0

11

Toro 110656

See Supercession: 101161
(Superseded to 101161)

$

$

Not available

12

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

13

Toro 110669

PLATE

$32.99

$

Usually ships in 3-6 days

0

14

Toro 104859

SPACER-LIFT LINK

$54.99

$

Usually ships in 3-6 days

0

15

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

16

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

17

Toro 915234

See Supercession: 3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

18

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

19

Toro 110665

See Supercession: 94-6652
(Superseded to 94-6652)

$49.99

$

In Stock, Qty 7

0

20

Toro 900015

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 5

0

21

Toro 113853

BRACKET WA ENG. *B

$53.99

$

Usually ships in 3-6 days

0

Toro 111240

See Supercession: 111240-03
(Superseded to 111240-03)

$

$

Not available

22

Toro 111314

LOCKING PIN ASM

$28.99

$

In Stock, only 2 left!

0

23

Toro 933274

PIN-ROLL

$2.49

$

In Stock, only 3 left!

0

24

Toro 9335Q6

Hairpin Cotter

$

$

Currently unavailable

25

Toro 102872

SHAFT-PTO

$33.99

$

In Stock, Qty 5

0

26

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 7

0

27

Toro 936032

See Supercession: 32120-62
(Superseded to 32120-62)

$4.99

$

In Stock, only 4 left!

0

28

Toro 109842

BEARING-BALL

$29.99

$

In Stock, only 2 left!

0

29

Toro 103478

DISCONTINUED
(Superseded to 103478-03)

$

$

Not available

30

Toro 106769

BRG-NEEDLE OPEN END

$67.99

$

In Stock, only 2 left!

0

31

Toro 6663

SEAL-OIL

$

$

Not available

32

Toro 6658

RACE-BEARING

$

$

Not available

33

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

34

Toro 6659

RETAINER

$20.99

$

In Stock, only 2 left!

0

35

Toro 114881

See Supercession: 94-6650
(Superseded to 94-6650)

$197.99

$

In Stock, only 2 left!

0

36

Toro 106695

RING-REINFORCED CIRC

$2.99

$

In Stock, only 2 left!

0

37

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

38

Toro 113108

ROD-HOUSING

$144.99

$

Usually ships in 3-6 days

0

Toro 113876

ROD-HOUSING

$

$

Not available

39

Toro 113107

CLEVIS

$29.99

$

In Stock, only 2 left!

0
