R1-16O802 (316-8) - Toro Garden Tractor (1990) WHEELS AND TIRES Parts Diagram

Garden Tractor

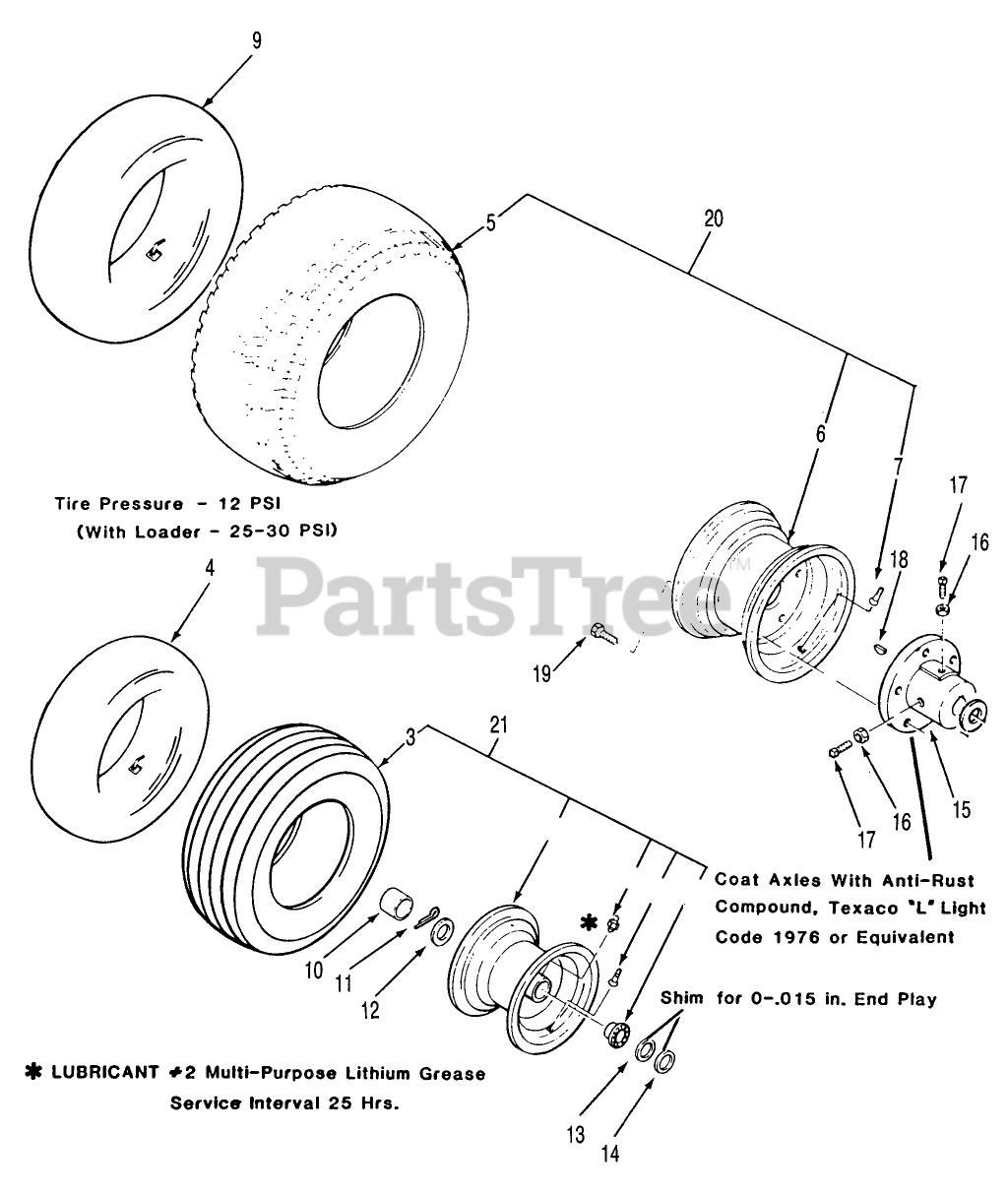

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

2

Toro 117285

DISCONTINUED

$

$

Not available

Toro 117399

See Supercession: 93-9801
(Superseded to 93-9801)

$280.99

$

Usually ships in 3-6 days

0

3

Toro 116884

TIRE-15 X 6.00-6

$178.99

$

Usually ships in 3-6 days

0

Toro 117127

TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL

$

$

Not available

4

Toro 100079

TUBE

$

$

Not available

5

Toro 116744

See Supercession: 116-5363
(Superseded to 116-5363)

$230.99

$

Usually ships in 3-6 days

0

6

Toro 111516

WHEEL

$334.99

$

Usually ships in 3-6 days

0

7

Toro 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

8

Toro 110513

BEARING-WHEEL

$25.99

$

In Stock, Qty 20+

0

9

Toro 7007

See Supercession: 231-90
(Superseded to 231-90)

$

$

Not available

10

Toro 109154

DISCONTINUED

$

$

Not available

11

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 11

0

12

Toro 109114

WASHER-WHEEL

$4.49

$

In Stock, Qty 8

0

13

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

14

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

15

Toro 105763

See Supercession: 105763-03
(Superseded to 105763-03)

$213.99

$

In Stock, only 1 left!

0

16

Toro 915236

See Supercession: 9152366
(Superseded to 9152366)

$3.99

$

Usually ships in 3-6 days

0

17

Toro 909554

See Supercession: 3243-5
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 11

0

18

Toro 937108

KEY-WOODRUFF

$6.49

$

In Stock, only 2 left!

0

19

Toro 1004

DUP PART SEE $BOOK

$

$

Not available

20

Toro 116743

DISCONTINUED PRC4

$

$

Not available

21

Toro 117289

ASM-Wheel Tire
(Superseded to 99-5378)

$

$

Not available

Toro 117398

DISCONTINUED

$

$

Not available
