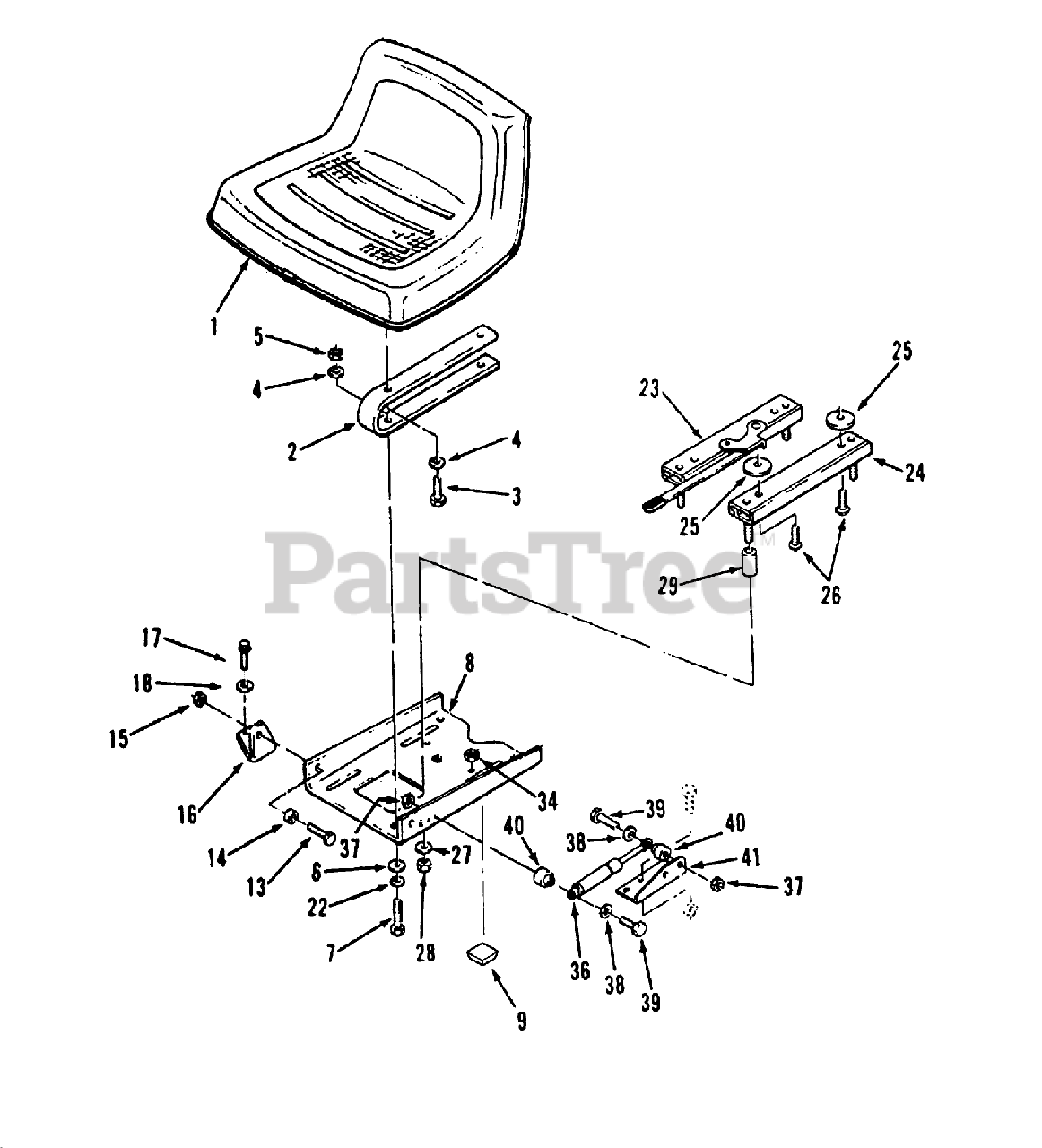

R1-16O804 (316-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) Seat Parts Diagram

Garden Tractor

Seat Parts Diagram

  • Title

1

Toro 79-0670

DISCONTINUED

$

$

Not available

2

Toro 114263

See Supercession: 114263-03
(Superseded to 114263-03)

$

$

Not available

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 78-2990

DISCONTINUED
(Superseded to 78-2990-03)

$

$

Not available

9

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

Usually ships in 3-6 days

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 112744

BRACKET-PIVOT R.H *B (NS)

$

$

Not available

Toro 112745

BRACKET-PIVOT L.H *B

Note: Not illustrated

$

$

Not available

17

Toro 913464

See Supercession: 130-9795
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

23

Toro 114264

DISCONTINUED
(Superseded to 93-0319)

$

$

Not available

24

Toro 114265

DISCONTINUED

$

$

Not available

25

Toro 109989

SPACER-NYLON

$5.99

$

In Stock, only 2 left!

0

26

Toro 910865

See Supercession: 32122-14
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

28

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

29

Toro 110932

DISCONTINUED

$

$

Not available

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 78-3240

ASS'Y-GAS SPRING

$214.99

$

In Stock, only 1 left!

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

39

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

40

Toro 78-3250

SPACER-SHOULDER-.400

$27.99

$

Usually ships in 3-6 days

0

41

Toro 114345

BRACKET-CYLINDER *R

$

$

Not available

Toro 79-3670

See Supercession: 88-3210
(Superseded to 88-3210)

Note: Not illustrated

$1087.99

$

Usually ships in 3-6 days

0
