R1-18OE02 (518-H) - Toro Garden Tractor (1990) CARBURETOR COMPONENTS Parts Diagram

Garden Tractor

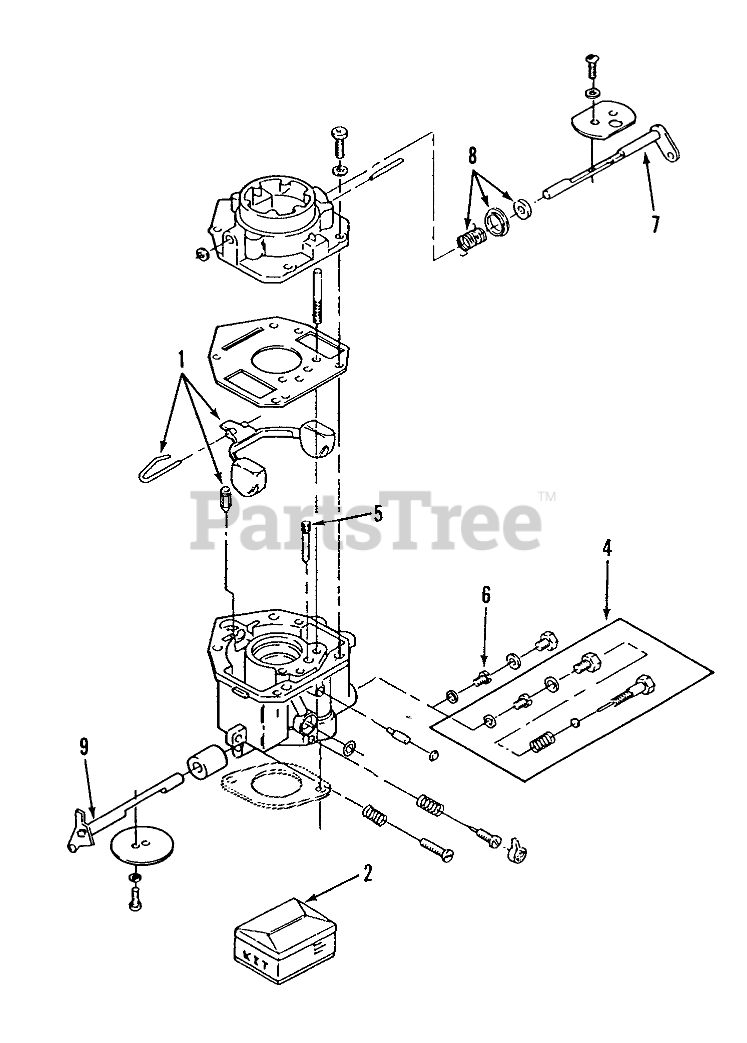

CARBURETOR COMPONENTS Parts Diagram

  • Title

1

Toro NN10209

Float Kit (Includes Float, Pin and Valve)
(Superseded to 62-2800)

$192.99

$

Usually ships in 3-6 days

0

2

Toro NN10807

Repair Kit (Includes Screw and Plug Package, Gasket Package, Float Valve, Idle Adjustment Needle and Spring, Mounting Gaskets, Idle Limit Cap)
(Superseded to 82-0780)

$1631.99

$

Usually ships in 3-6 days

0

4

Toro NN10858

FIXED-JET

$

$

Not available

5

Toro NN10859

IDLE-JET

$

$

Not available

6

Toro 57-9050

POWER JET

$

$

Not available

7

Toro NN10207

Choke Shaft Kit (Includes Choke Valve, Valve Set Screw and Air Filter)
(Superseded to 72-3860)

$

$

Not available

8

Toro NN10208

Choke Lever Kit (Includes Choke Lever Ring, Choke Spring and Choke Collar)
(Superseded to 72-3870)

$

$

Not available

9

Toro NN10811

Throttle Shaft Kit (Includes Valve Set Screw, Air Filter and Throttle Valve

$

$

Not available
