R1-18OE02 (518-H) - Toro Garden Tractor (1990) PTO CLUTCH AND CONTROL Parts Diagram

Garden Tractor

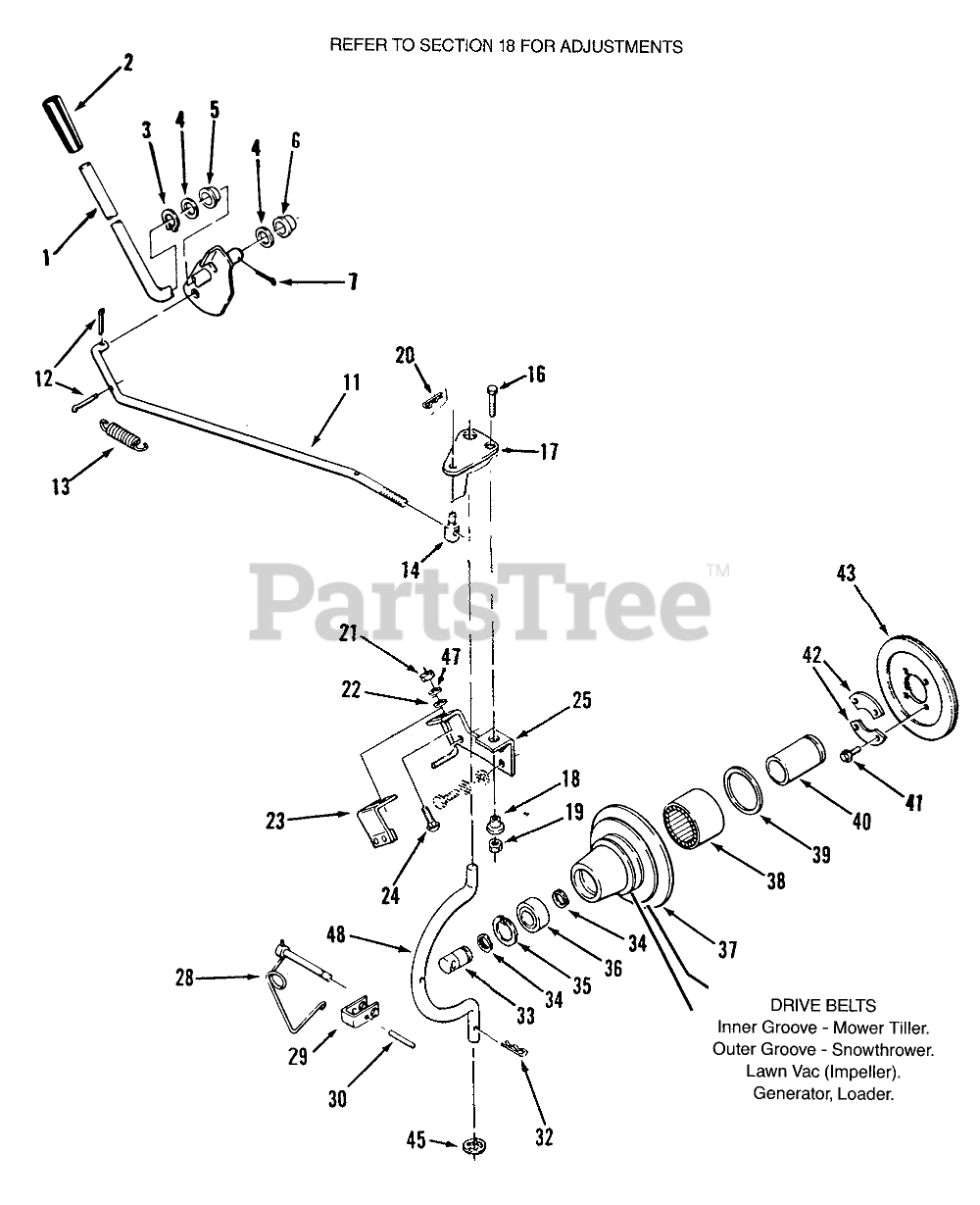

PTO CLUTCH AND CONTROL Parts Diagram

  • Title

1

Toro 111234

ASSY PTO CLUTCH LEVE

$

$

Not available

2

Toro 9038

GRIP

$7.99

$

In Stock, only 3 left!

0

3

Toro 106649

Grip Ring
(Superseded to 32151-11)

$12.99

$

In Stock, Qty 5

0

4

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 1 left!

0

5

Toro 5666

BUSHING-NYLINER

$16.99

$

In Stock, only 2 left!

0

6

Toro 5983

NYLINER BUSHING

$7.49

$

In Stock, Qty 7

0

7

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 15

0

11

Toro 111052

ROD-PTO CLUTCH

$90.99

$

Usually ships in 3-6 days

0

12

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 15

0

13

Toro 103125

SPRING

$10.99

$

In Stock, only 3 left!

0

14

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

16

Toro 908035

Bolt
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

17

Toro 110669

PLATE

$32.99

$

Usually ships in 3-6 days

0

18

Toro 104859

SPACER-LIFT LINK

$54.99

$

Usually ships in 3-6 days

0

19

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

22

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 17

0

23

Toro 110665

ASM-Bracket
(Superseded to 94-6652)

$49.99

$

In Stock, Qty 7

0

24

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

25

Toro 113874

Bracket-Engine
(Superseded to 113874-03)

$

$

Not available

28

Toro 111314

LOCKING PIN ASM

$28.99

$

In Stock, only 2 left!

0

29

Toro 113107

CLEVIS

$29.99

$

In Stock, only 2 left!

0

30

Toro 933274

PIN

$2.49

$

In Stock, only 3 left!

0

32

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 9

0

33

Toro 102872

SHAFT-PTO

$33.99

$

In Stock, Qty 5

0

34

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 7

0

35

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, only 4 left!

0

36

Toro 109842

BEARING-BALL

$29.99

$

In Stock, only 2 left!

0

37

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

38

Toro 106769

BRG-NEEDLE OPEN END

$67.99

$

In Stock, only 2 left!

0

39

Toro 6663

SEAL-OIL

$14.99

$

In Stock, only 2 left!

0

40

Toro 6658

RACE-BEARING

$

$

Not available

41

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

42

Toro 6659

RETAINER

$20.99

$

In Stock, only 2 left!

0

43

Toro 114881

Facing-Clutch
(Superseded to 94-6650)

$197.99

$

In Stock, only 2 left!

0

45

Toro 106695

RING-REINFORCED CIRC

$2.99

$

In Stock, only 2 left!

0

47

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

48

Toro 113108

ROD-HOUSING

$144.99

$

Usually ships in 3-6 days

0
