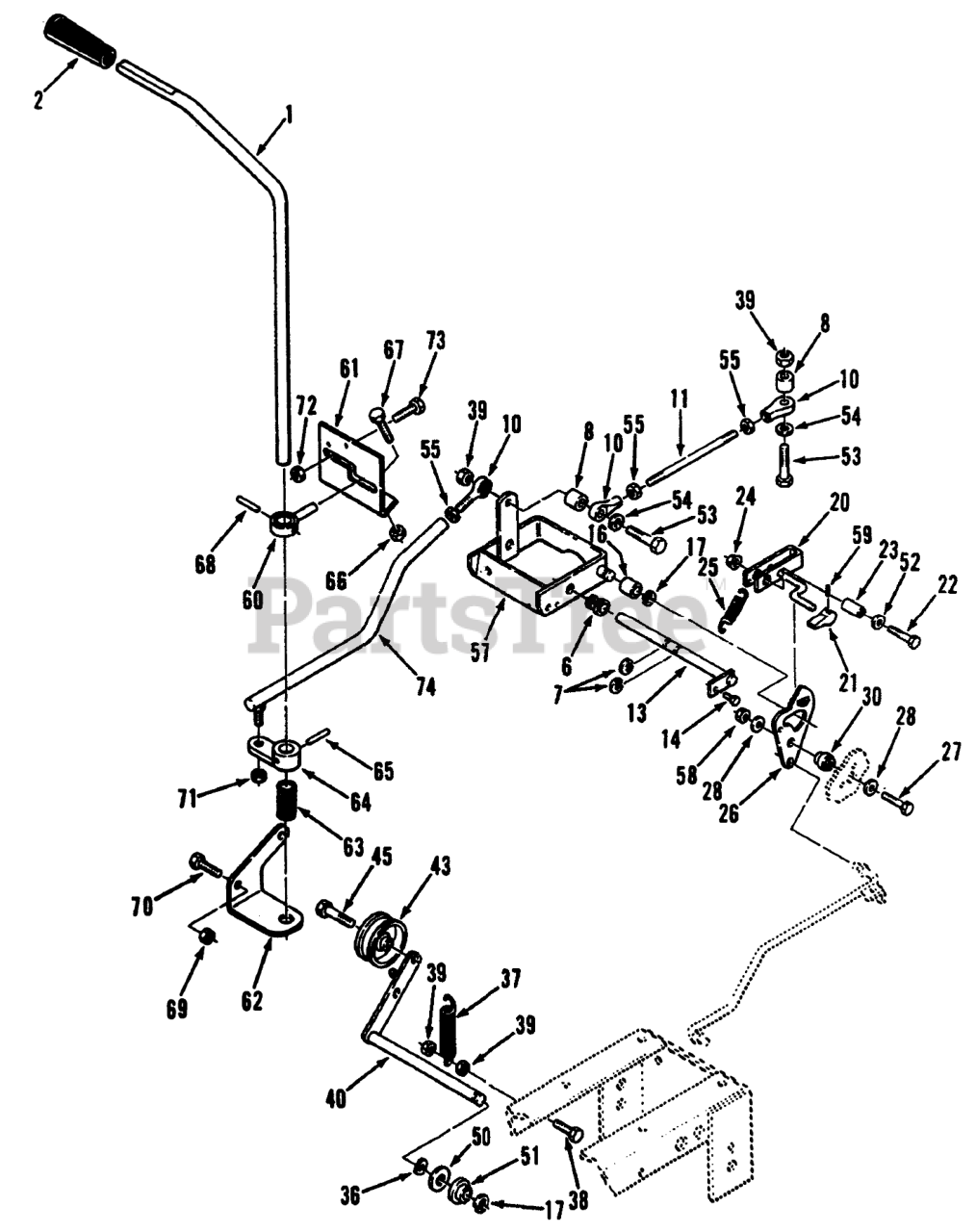

R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

Garden Tractor

CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 117329

ROD-MOTION CONTROL

$

$

Not available

2

Toro 116635

Knob-Motion Control
(Superseded to 94-6668)

$

$

Not available

6

Toro 5983

NYLINER BUSHING

$7.49

$

In Stock, Qty 5

0

7

Toro 321-47

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

8

Toro 100304

Spacer

$7.49

$

Usually ships in 3-6 days

0

10

Toro 116407

ROD END, 1/4-28

$64.99

$

Usually ships in 3-6 days

0

11

Toro 108904

ROD-CONTROL

$29.99

$

Usually ships in 3-6 days

0

13

Toro 108496

ASSY-ROD CAM PIVOT

$

$

Not available

14

Toro 926694

SCREW

$

$

Not available

16

Toro 100656

BEARING-CAM RETURN

$6.99

$

Usually ships in 3-6 days

0

17

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 19

0

20

Toro 78-8500

Lever-Parking Brake
(Superseded to 78-8500-03)

$

$

Not available

21

Toro 118860

KNOB-PARKING BRAKE

$

$

Not available

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 102025

SPACER

$

$

Not available

24

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 20+

0

25

Toro 1230

Spring

$

$

Not available

26

Toro 108716

Cam Plate
(Superseded to 108716-03)

$

$

Not available

27

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 108717

Spacer

$

$

Not available

36

Toro 108473

WASHER-WAVE

$8.99

$

In Stock, only 2 left!

0

37

Toro 107938

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

38

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 8

0

39

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

40

Toro 78-6020

WLDMT-IDLER ARM

$

$

Not available

43

Toro 112791

PULLEY-IDLER

$96.99

$

In Stock, only 4 left!

0

45

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 6

0

50

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

51

Toro 7879

BUSHING-FLANGED

$25.99

$

In Stock, only 2 left!

0

52

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

53

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

54

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

57

Toro 113454

Cam Comtrol
(Superseded to 113454-03)

$

$

Not available

58

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

59

Toro 933135

PIN-SPIROL 3/32X5/8

$

$

Not available

60

Toro 118660

GUIDE-CONTROL

$

$

Not available

61

Toro 78-5711

BRKT-CONTROL

$

$

Not available

62

Toro 78-1540

Bracket-Control
(Superseded to 78-1540-03)

$

$

Not available

63

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 6

0

64

Toro 116321

ARM-CONTROL

$

$

Not available

65

Toro 32121-94

PIN-SPECIAL

$

$

Not available

66

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

67

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

68

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

69

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

70

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

71

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, only 4 left!

0

72

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

73

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

74

Toro 116324

ASSY-ROD & BALL JOINT

$380.99

$

Usually ships in 3-6 days

0
