R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) ENGINE AND CLUTCH Parts Diagram

Yard Tractor

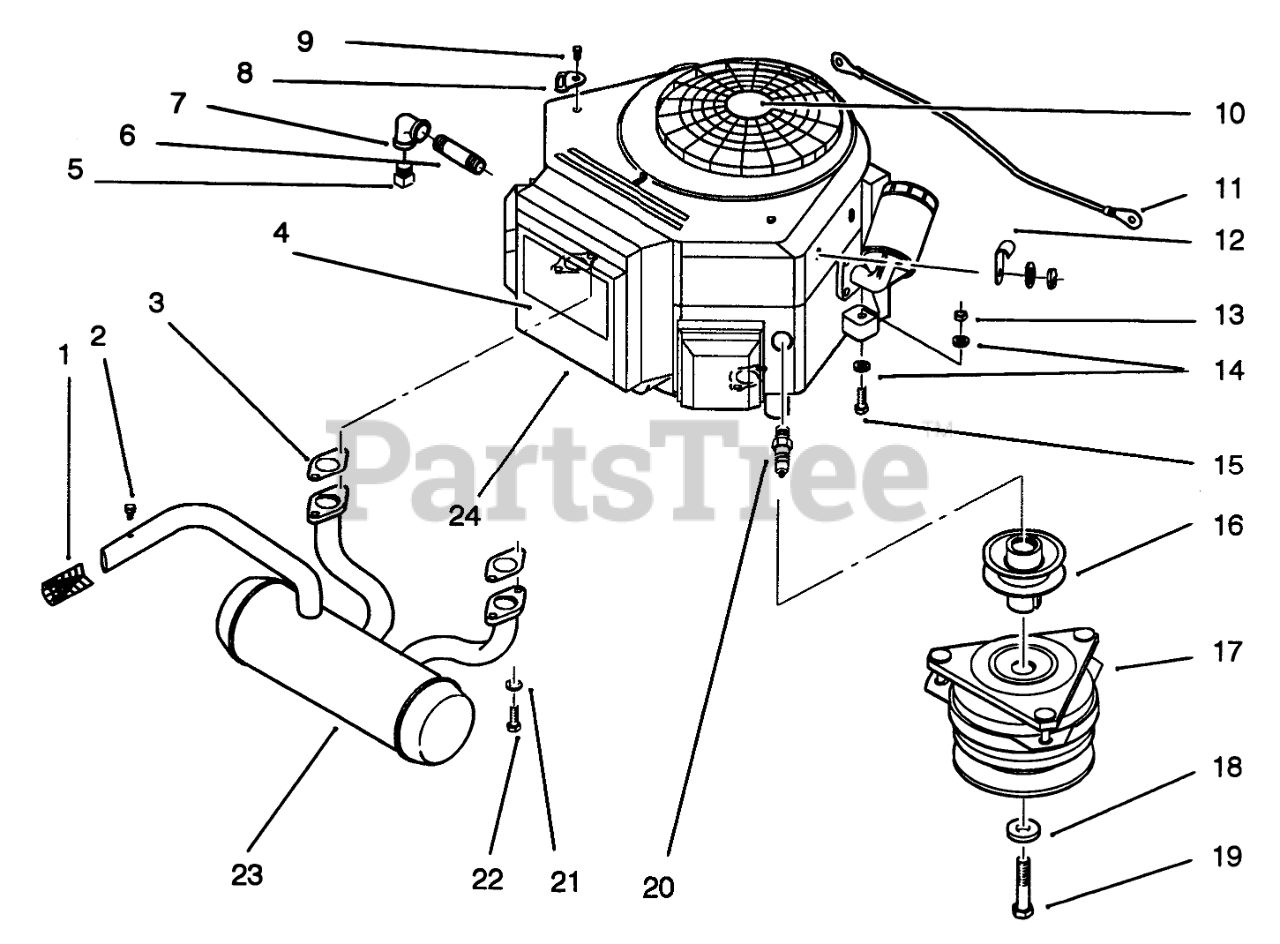

ENGINE AND CLUTCH Parts Diagram

  • Title

1

Toro 115356

Arrester-Spark
(Superseded to 93-9911)

$47.99

$

Usually ships in 3-6 days

0

2

Toro 911652

BOLT-HEX S.T. #8X1/2

$

$

Not available

3

Toro 118500

GASKET-MUFFLER
(Superseded to 94-5844)

$15.99

$

In Stock, only 2 left!

0

4

Toro 119590

DECAL-16 OVR HD VAV

$

$

Not available

5

Toro 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

6

Toro 289-45

NIPPLE-PIPE

$

$

Not available

7

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

8

Toro 115413

CLEVIS

$

$

Not available

9

Toro 78-4800

Screw

$

$

Not available

10

Toro 120040

DECAL-TORO ENGINE

$

$

Not available

11

Toro 1112757

Wire-Starter to Solenoid

$

$

Currently unavailable

12

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 78-6610

PULLEY-ENGINE HYD R

$

$

Not available

17

Toro 78-6990

Clutch
(Superseded to 92-6885)

$1015.99

$

Usually ships in 3-6 days

0

18

Toro 112843

WASHER

$3.99

$

In Stock, Qty 10

0

19

Toro 9114466

SCREW-HH

$96.99

$

Usually ships in 3-6 days

0

20

Toro NN10820

SPARK PLUG

$5.49

$

In Stock, only 2 left!

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 911066

SHCS 5/16-18X.625

$2.99

$

Usually ships in 3-6 days

0

23

Toro 79-1210

MUFFLER

$

$

Not available

24

Toro 79-3150

Engine

$

$

Not available
