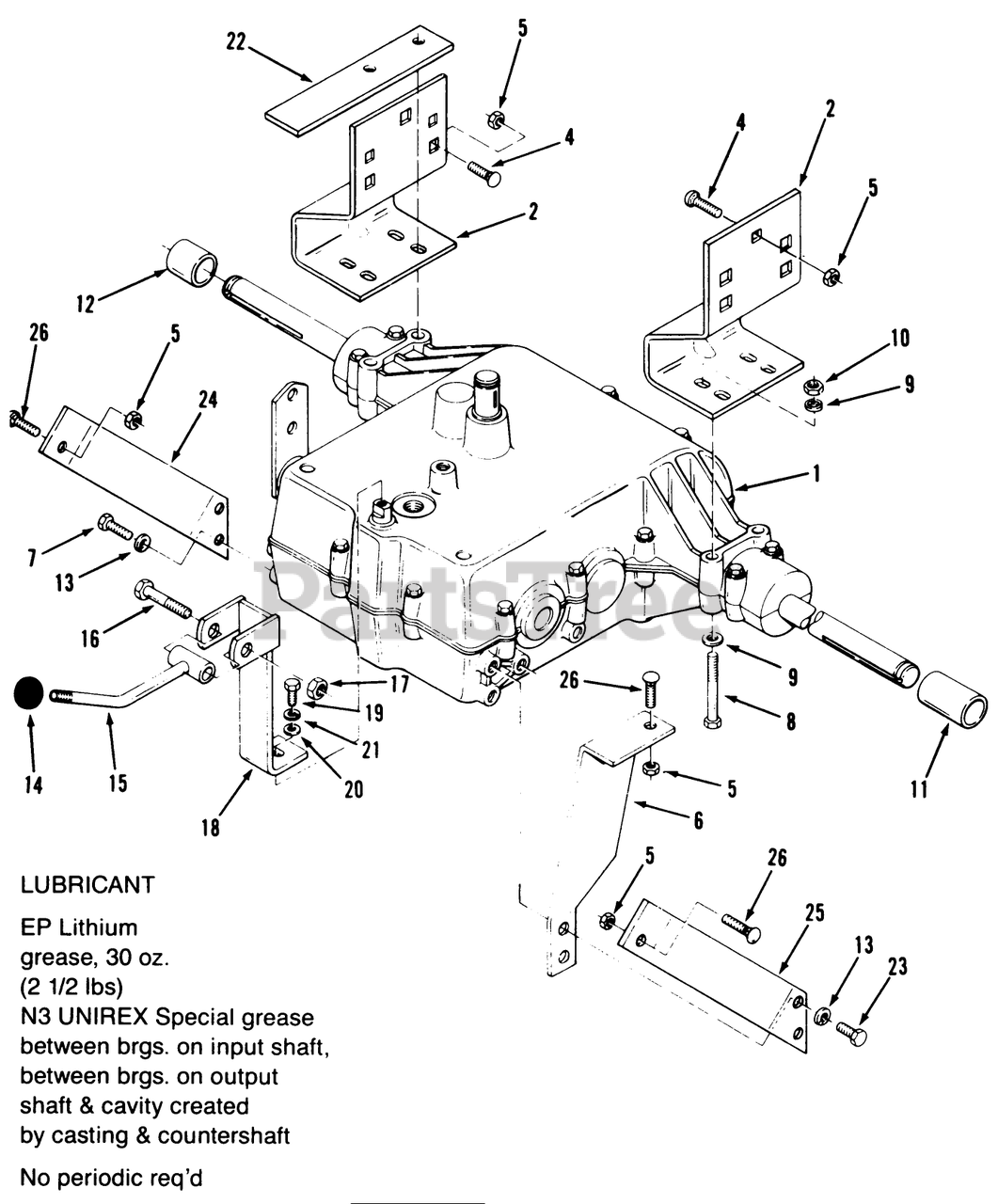

R2-17K502 (227-5) - Toro Lawn Tractor (1990) 5-SPEED TRANSMISSION Parts Diagram

Lawn Tractor

5-SPEED TRANSMISSION Parts Diagram

  • Title

1

Toro 111049

Transmission-5-Speed Peerless Model 801-026

$

$

Currently unavailable

2

Toro 108793

BRKT-TRANS MOUNT R

$

$

Not available

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

6

Toro 108792

TORQUE STRAP

$

$

Not available

7

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

8

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 17

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

11

Toro 108421

SPACER-AXLE LH

$

$

Not available

12

Toro 108420

SPACER-AXLE RH

$

$

Not available

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 108758

KNOB

$13.99

$

In Stock, Qty 5

0

15

Toro 110640

ASSY UPPER SHIFT ROD

$

$

Not available

16

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

Toro 111050

WASHER SPECIAL

$

$

Not available

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 109492

ASSY LEVER R

$374.99

$

Usually ships in 3-6 days

0

19

Toro 111051

Bolt-12 Point-5-Speed
(Superseded to 9114384)

$

$

Not available

20

Toro 104869

WASHER

$

$

Not available

21

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 108396

Brake Stop Bar

$

$

Not available

23

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

24

Toro 110152

TORQUE STRAP RH

$

$

Not available

25

Toro 110151

TORQUE STRAP LH

$

$

Not available

26

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0
