R2-17K502 (227-5) - Toro Lawn Tractor (1990) ATTACHMENT LIFT Parts Diagram

Lawn Tractor

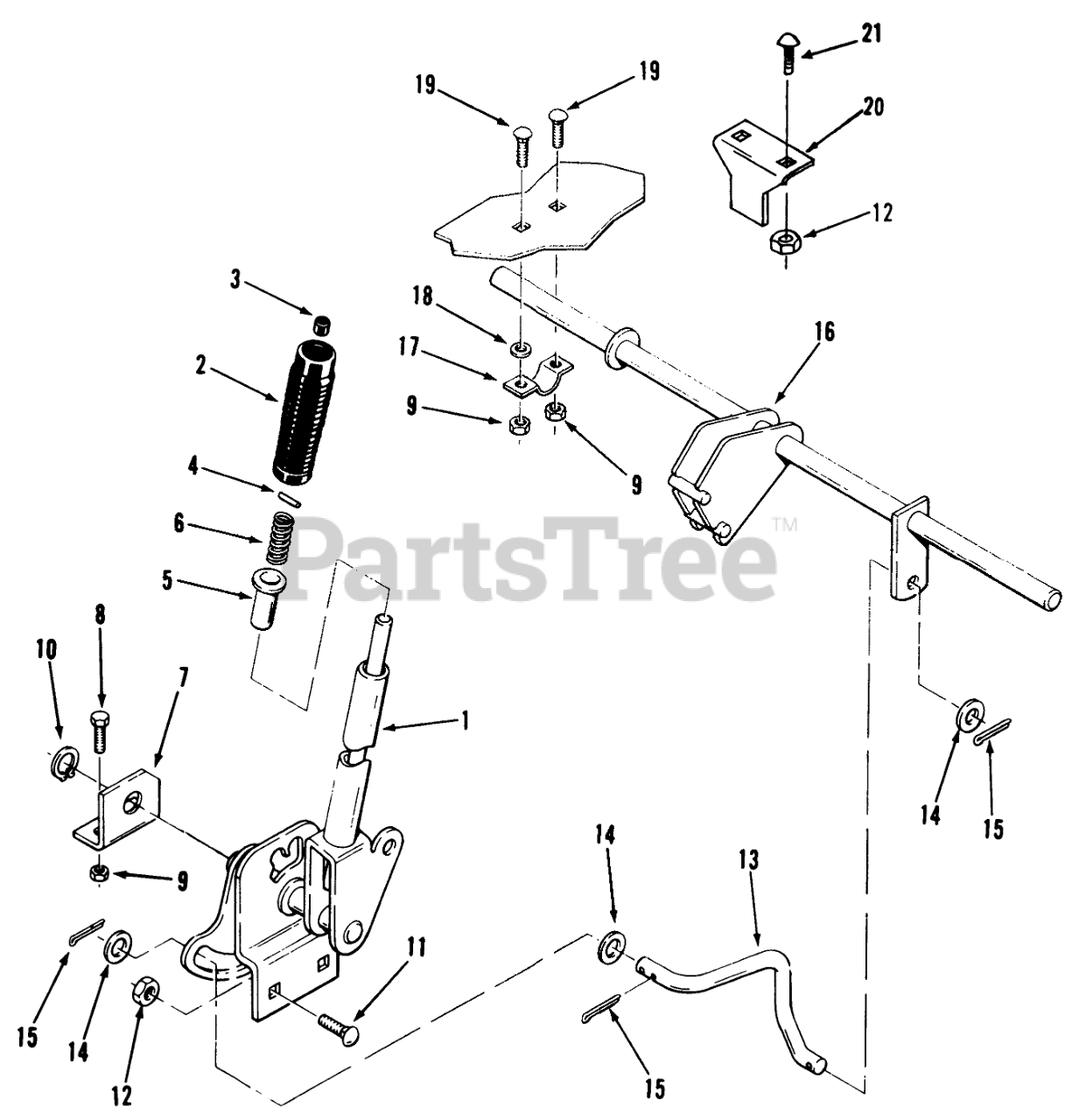

ATTACHMENT LIFT Parts Diagram

  • Title

1

Toro 109170

Lift Lever

$

$

Not available

2

Toro 6542

HANDGRIP

$14.99

$

Usually ships in 3-6 days

0

3

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

4

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 4 left!

0

5

Toro 8130

RETAINER-SPRING

$19.99

$

Usually ships in 3-6 days

0

6

Toro 3624

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

7

Toro 109177

BRACKET-INNER R

$

$

Not available

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3210-93

Retaining Ring

$

$

Currently unavailable

11

Toro 3231-36

SCREW-CARR

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 114364

ROD-LIFT R

$

$

Not available

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

16

Toro 109333

ASM-REAR LIFT R
(Superseded to 109333-01)

$

$

Not available

17

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

18

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

19

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

20

Toro 111089

BRACKET STOP

$

$

Not available

21

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0
