R2-17K502 (227-5) - Toro Lawn Tractor (1990) Pto Clutch Parts Diagram

Lawn Tractor

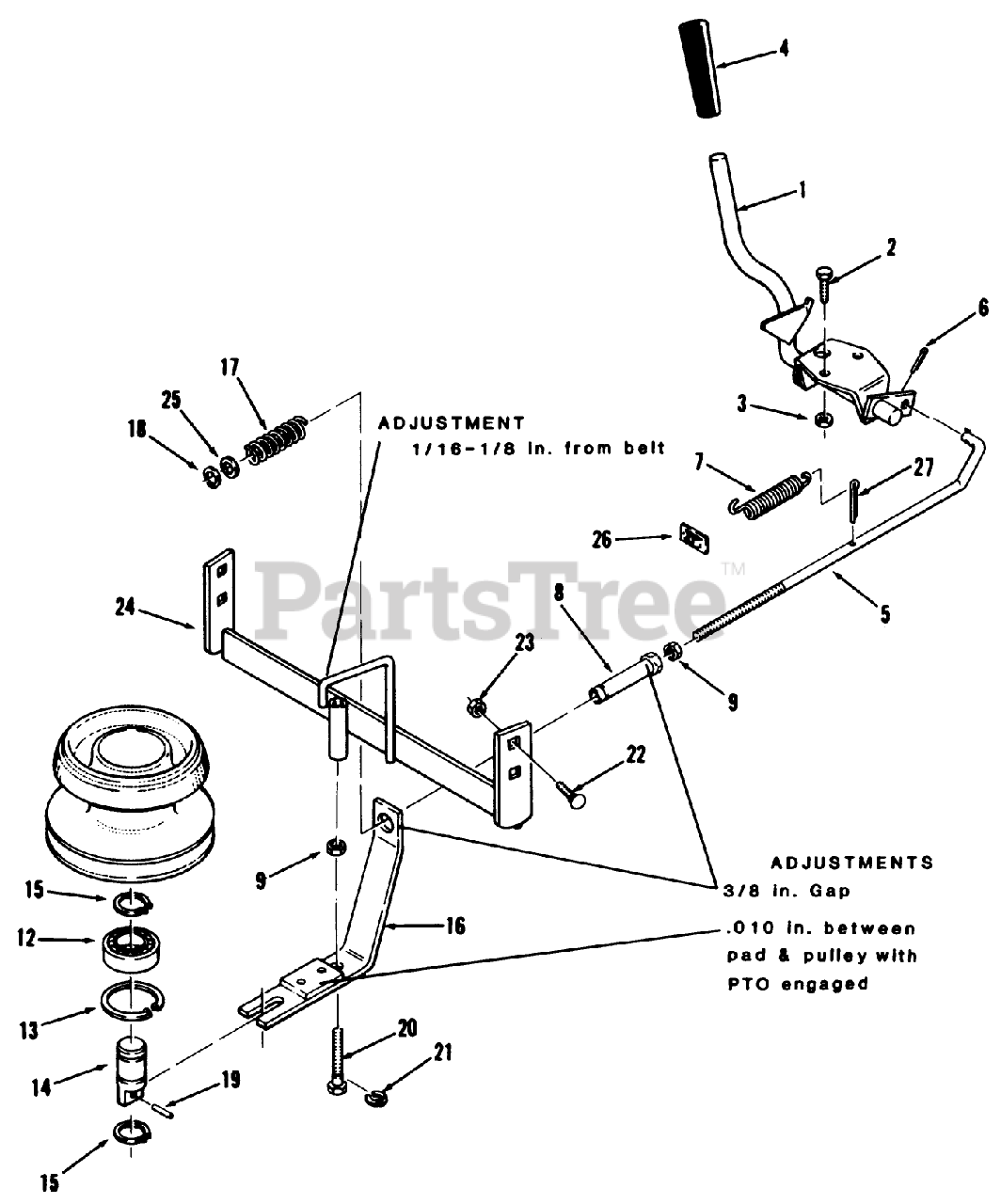

Pto Clutch Parts Diagram

  • Title

1

Toro 110645

ASSY HANDLE

$

$

Not available

2

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 9038

GRIP

$7.99

$

In Stock, only 3 left!

0

5

Toro 111181

DISCONTINUED

$

$

Not available

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 1014

DUP PART SEE $BOOK

$

$

Not available

8

Toro 107818

DISCONTINUED

$

$

Not available

9

Toro 915235

See Supercession: 3218-2
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 18

0

12

Toro 109842

BEARING-BALL

$29.99

$

In Stock, only 2 left!

0

13

Toro 936032

See Supercession: 32120-62
(Superseded to 32120-62)

$4.99

$

In Stock, only 4 left!

0

14

Toro 111084

DISCONTINUED

$

$

Not available

15

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 5

0

16

Toro 109346

DISCONTINUED

$

$

Not available

17

Toro 109832

DISCONTINUED

$

$

Not available

18

Toro 107825

See Supercession: 32151-61
(Superseded to 32151-61)

$2.99

$

In Stock, Qty 20+

0

19

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

20

Toro 107748

DISCONTINUED

$

$

Not available

21

Toro 32151-73

RING-CLIP

$3.49

$

In Stock, Qty 6

0

22

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 112476

CLUTCH BRACKET ASM *R

$

$

Not available

25

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

26

Toro 7721

SPEED NUT

$

$

Not available

27

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
